ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S30

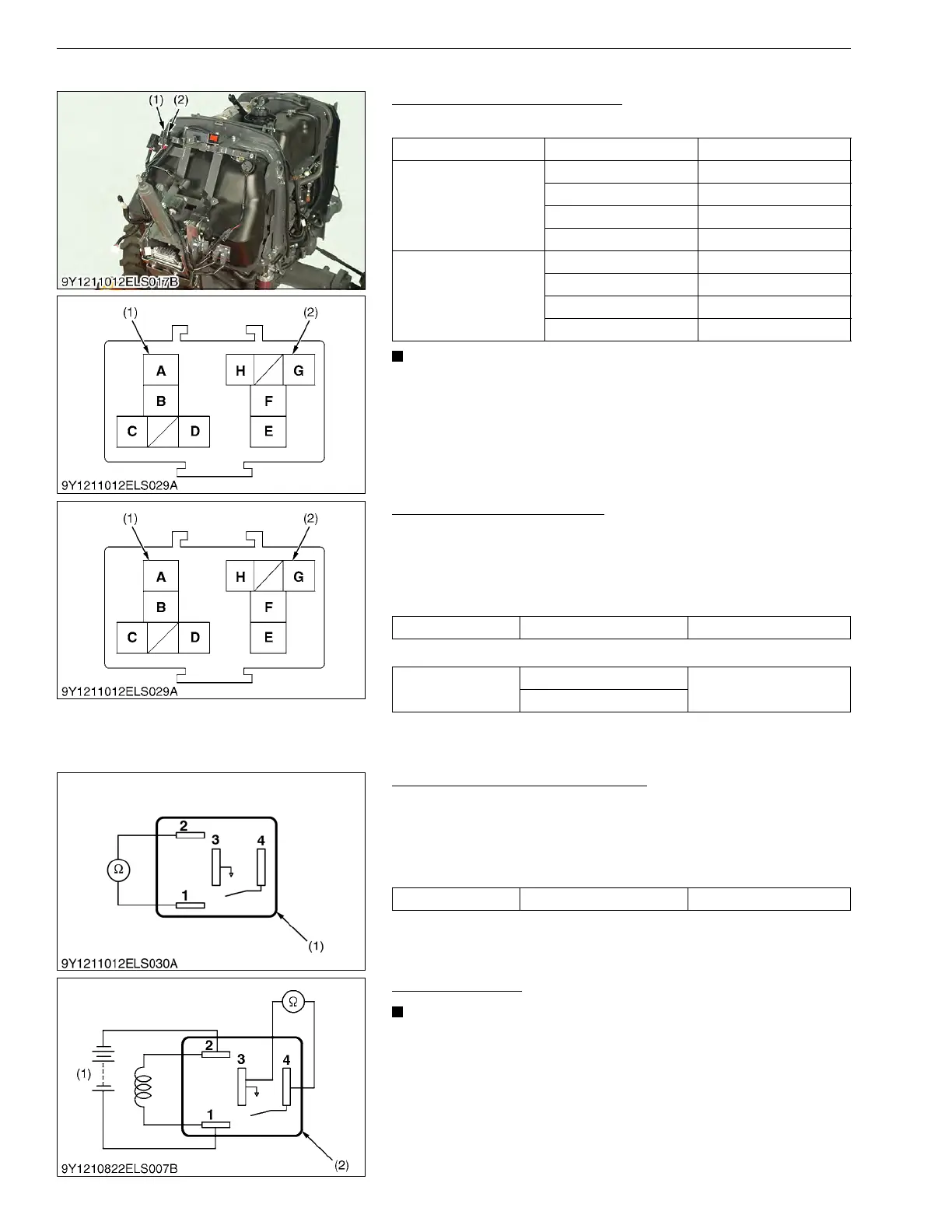

(4) Relays
Starter Relay and Engine Relay
1. Remove relays (1), (2).
• Starter relay and engine relay are using same relay. When
checking, be sure to check the color of wiring harness.
9Y1211012ELS0038US0
Checking Connector Voltage
1. Measure the voltage with a voltmeter across the terminals
following table below.
2. If the voltage is different from the battery voltage, battery, slow
blow fuse, fuse or wiring harness is damaged.
Starter Relay
Engine Relay
9Y1211012ELS0039US0
Checking Coil Resistance of Relay
1. Measure the resistance with a ohmmeter across the terminal 1
and terminal 2.
2. If the resistance is remarkably different from the following table
or there is no resistance, the relay is damaged.
Starter Relay
9Y1211012ELS0040US0
Functional Check
• The relays described here are used same ones so that
these are interchangeable.
1. Apply the battery voltage across the terminal 1 and 2, and check
for continuity across the terminal 3 and 4.
2. If continuity is not established across the terminal 3 and 4,
replace it.
9Y1211012ELS0041US0
Relay Terminal Color of Wiring
Starter Relay
A R
B B/W
C B/R
D B/W
Engine Relay
E R
F R
G R/W
H R
(1) Starter Relay (2) Engine Relay
Voltage A Terminal – Chassis Approx. battery voltage
Voltage
F Terminal – Chassis
Approx. battery voltage
H Terminal – Chassis
(1) Starter Relay (2) Engine Relay
Resistance 1 terminal – 2 terminal Approx. 120 Ω
(1) Relay
(1) Battery (2) Connector (Relay)
