TRANSMISSION
L3301, L3901, L4701, WSM
3-S13
4. CHECKING AND ADJUSTING
[1] L3301/L3901
(1) MANUAL TRANSMISSION MODEL

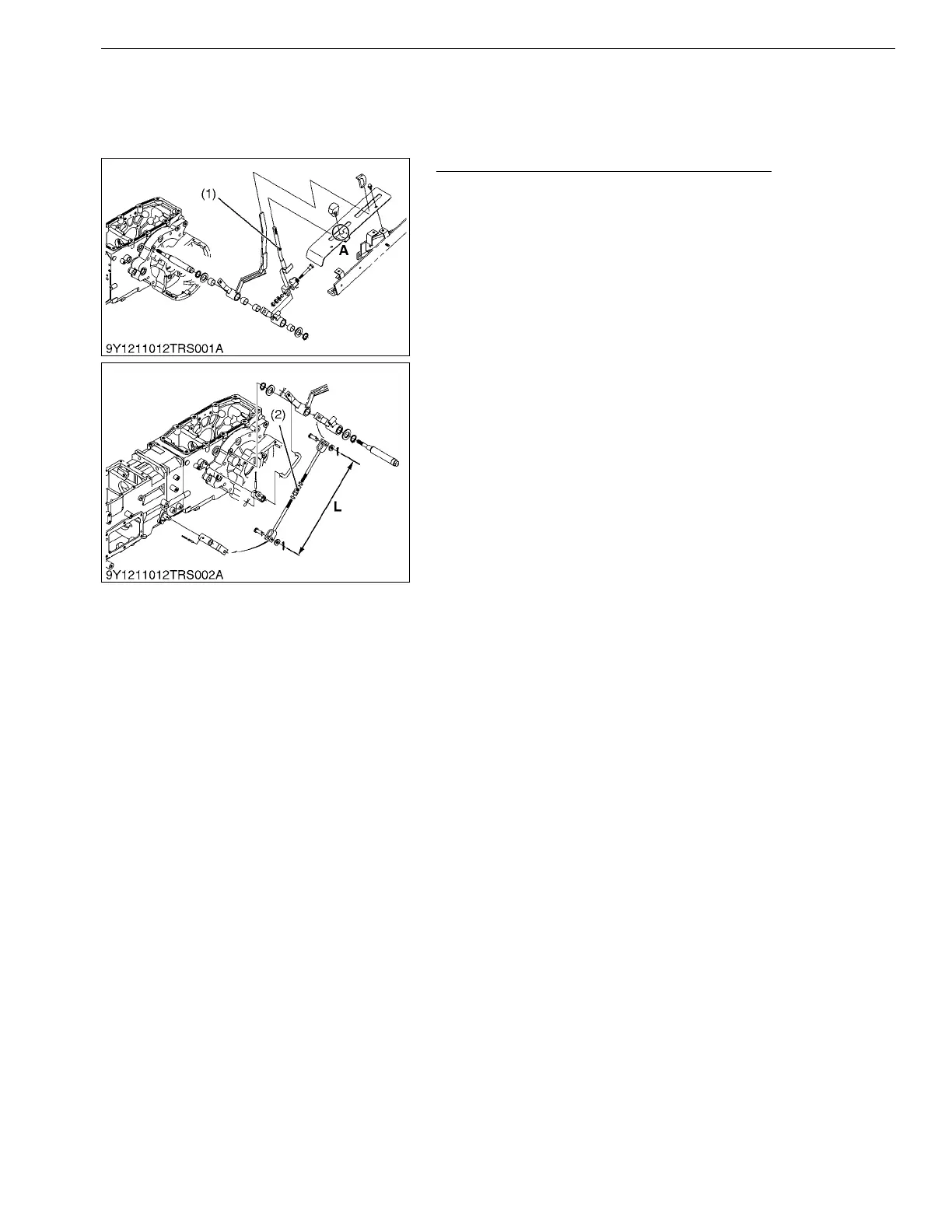

Checking Shuttle Shift Lever Neutral Position
1. Check if the shuttle shift lever (1) is in position "A" when lever
is released at position "N".
2. If the lever is not in position "A", adjust shuttle shift lever
position with the turnbuckle (2).
3. Also check if neutral switch is pressed when the shuttle shift
lever (1) is in "N" position.
(Reference)
• Turnbuckle length "L": 363 mm (14.3 in.)
9Y1211012TRS0006US0
(1) Shuttle Shift Lever
(2) Turnbuckle
A: Groove For Shuttle Lever
L: Turnbuckle Length
To Next Page
