ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S57
[2] ALTERNATOR

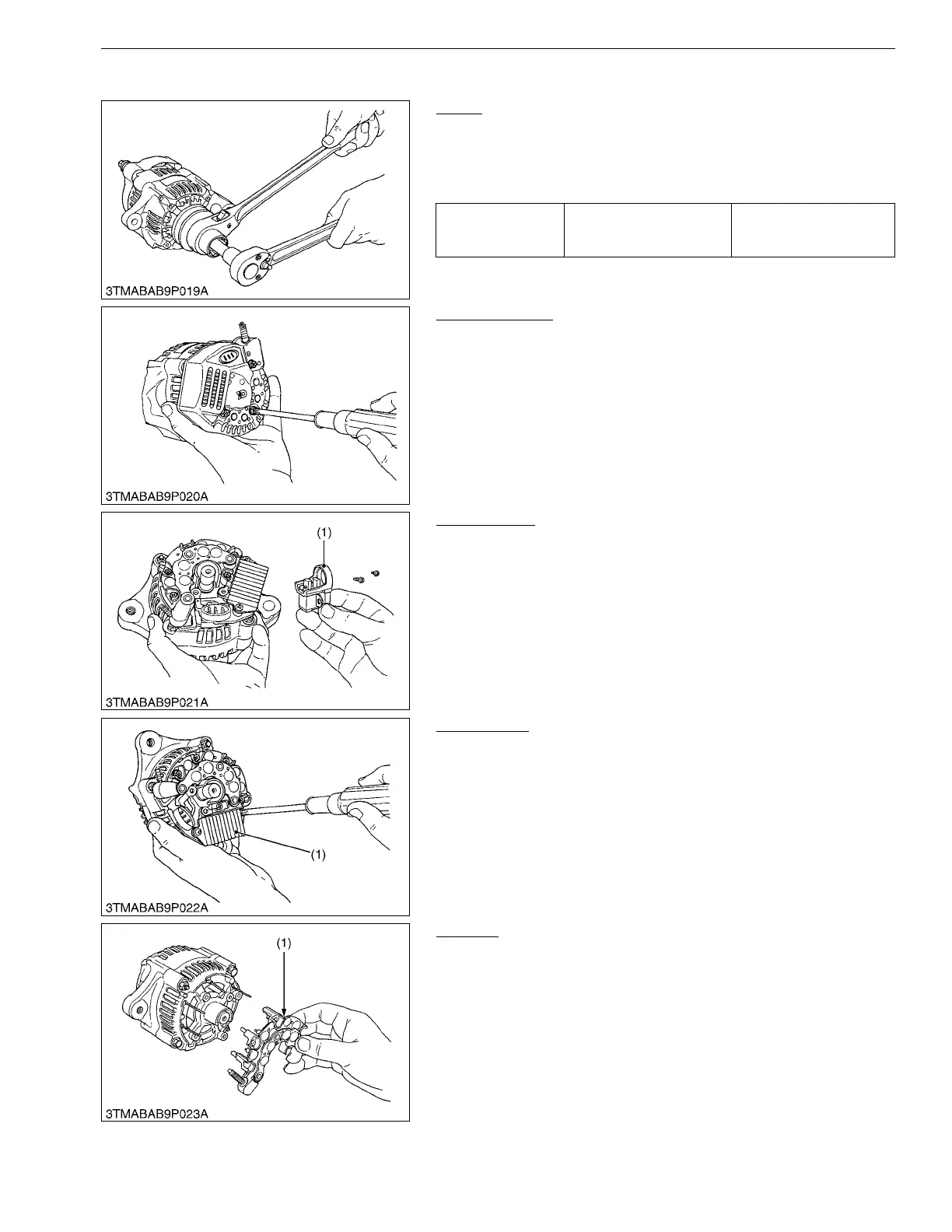

Pulley
1. Secure the hexagonal end of the pulley shaft with a
double-ended ratchet wrench as shown in the figure.
2. Loosen the pulley nut with a socket wrench and remove it.
(When reassembling)
WSM000001ELS0023US0
Rear End Cover
1. Remove the three rear end cover screws and the B terminal nut,
and remove the rear end cover.
WSM000001ELS0024US0
Brush Holder
1. Remove the two screws holding the brush holder, and remove
the brush holder (1).
WSM000001ELS0025US0
IC Regulator
1. Remove the three screws holding the IC regulator, and remove
the IC regulator (1).
WSM000001ELS0026US0
Rectifier
1. Remove the four screws holding the rectifier and the stator lead
wires.
2. Remove the rectifier (1).
WSM000001ELS0027US0
Tightening torque Pulley nut
58.4 to 78.9 N·m
5.95 to 8.05 kgf·m
43.1 to 58.2 lbf·ft
(1) Brush Holder
(1) IC Regulator
(1) Rectifier
