FRONT AXLE
L3301, L3901, L4701, WSM
6-S28
[2] 4WD MODEL

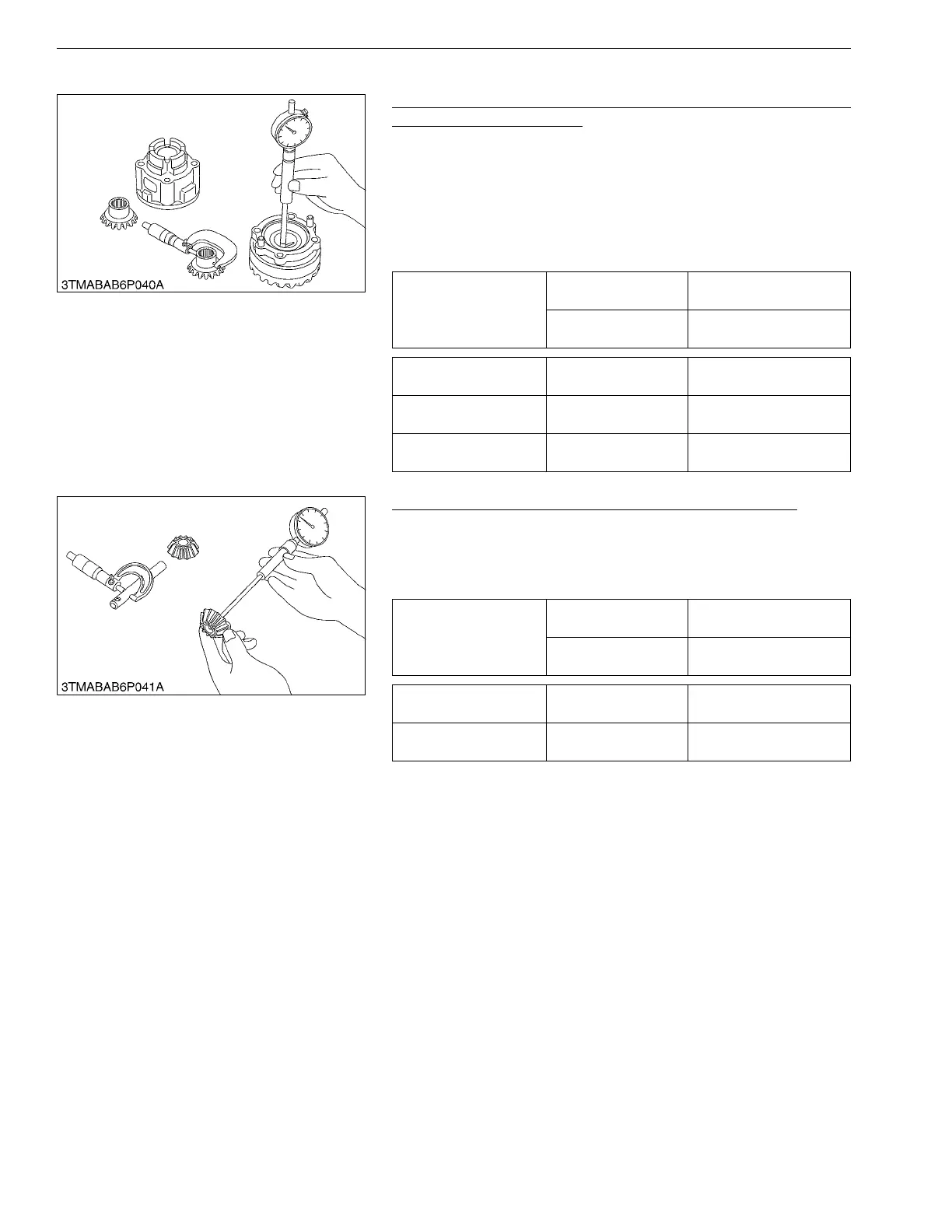

Clearance between Differential Case (Differential Case Cover)
and Differential Side Gear
1. Measure the differential side gear O.D..
2. Measure the differential case bore I.D. and calculate the
clearance.
3. Measure the differential case cover bore I.D. and calculate the
clearance.
4. If the clearance exceeds the allowable limit, replace damaged
parts.
9Y1211012FAS0041US0
Clearance between Pinion Shaft and Differential Pinion
1. Measure the pinion shaft O.D..
2. Measure the differential pinion I.D. and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace damaged
parts.
9Y1211012FAS0042US0
Clearance between
differential case
(differential case cover)
and differential side gear
Factory specification
0.050 to 0.151 mm
0.00197 to 0.00594 in.
Allowable limit
0.20 mm
0.0079 in.
Differential case bore
I.D.
Factory specification
32.000 to 32.062 mm
1.25984 to 1.26228 in.
Differential case cover
bore I.D.
Factory specification
32.000 to 32.025 mm
1.25984 to 1.26083 in.
Differential side gear
O.D.
Factory specification
31.911 to 31.950 mm
1.25634 to 1.25787 in.
Clearance between
pinion shaft and
differential pinion
Factory specification
0.064 to 0.100 mm
0.00252 to 0.00394 in.
Allowable limit
0.25 mm
0.0096 in.
Pinion shaft O.D. Factory specification
13.950 to 13.968 mm
0.54921 to 0.54992 in.
Differential pinion I.D. Factory specification
14.032 to 14.050 mm
0.55244 to 0.55315 in.
