HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-M15
4. FRONT HYDRAULIC BLOCK
[1] STRUCTURE
The front hydraulic block (2) is provided to take power out from the tractor to operate the hydraulic cylinders on
the implement, such as front loader, front blade and so on.
9Y1211012HYM0019US0
[2] HYDRAULIC CIRCUIT
9Y1211012HYM0020US0

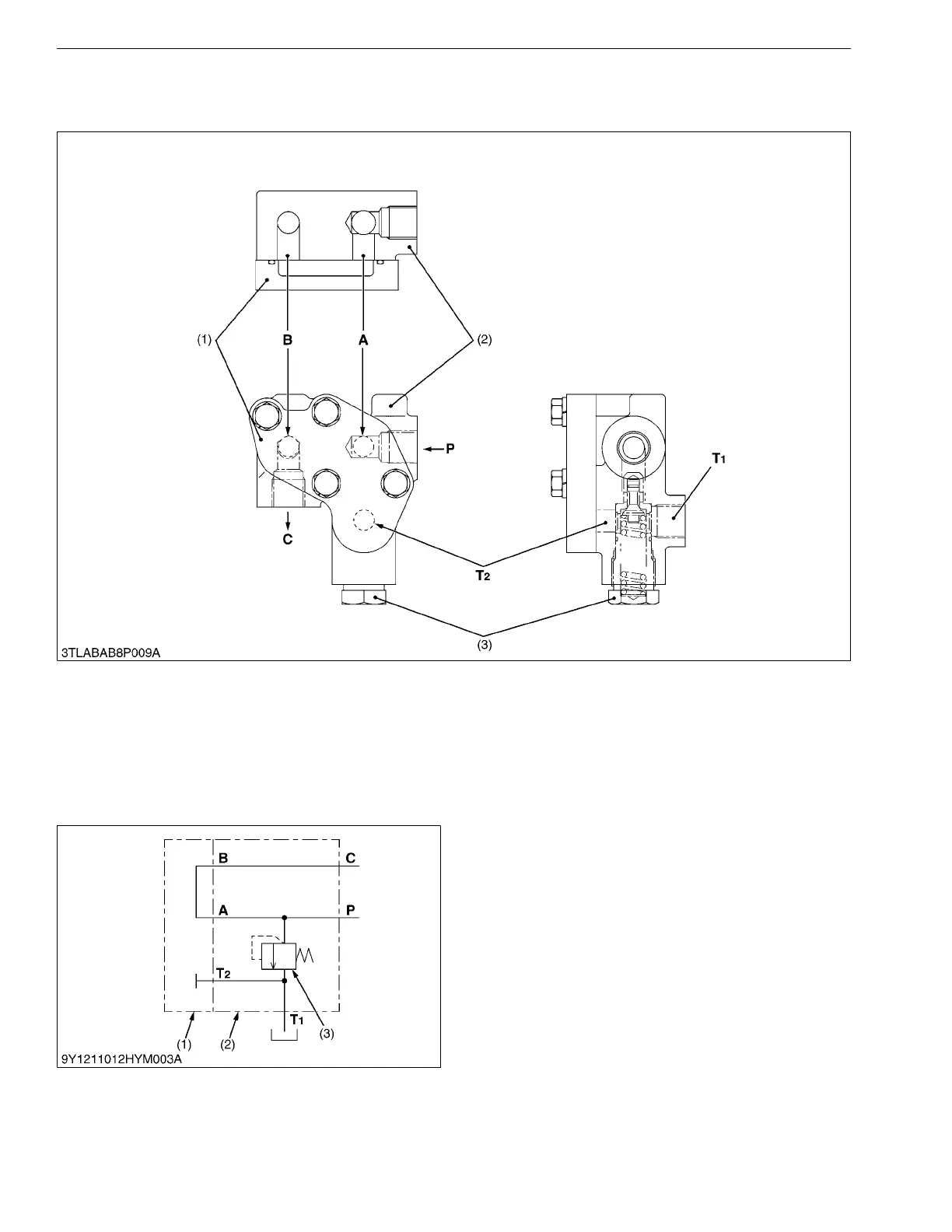

(1) Cap
(2) Front Hydraulic Block
(3) Relief Valve
A: To Implement Control Valve
B: From Implement Control
Valve
C: To Position Control Valve
P: From Hydraulic Pump
T
1
: To Transmission Case
T
2
: From Implement Control
Valve
(1) Cap
(2) Front Hydraulic Block
(3) Relief Valve
A: To Implement Control
Valve
B: From Implement Control
Valve
C: To Position Control Valve
P: From Hydraulic Pump
T
1
: To Transmission Case
T
2
: From Implement Control
Valve
