BRAKES
L3301, L3901, L4701, WSM
5-S11

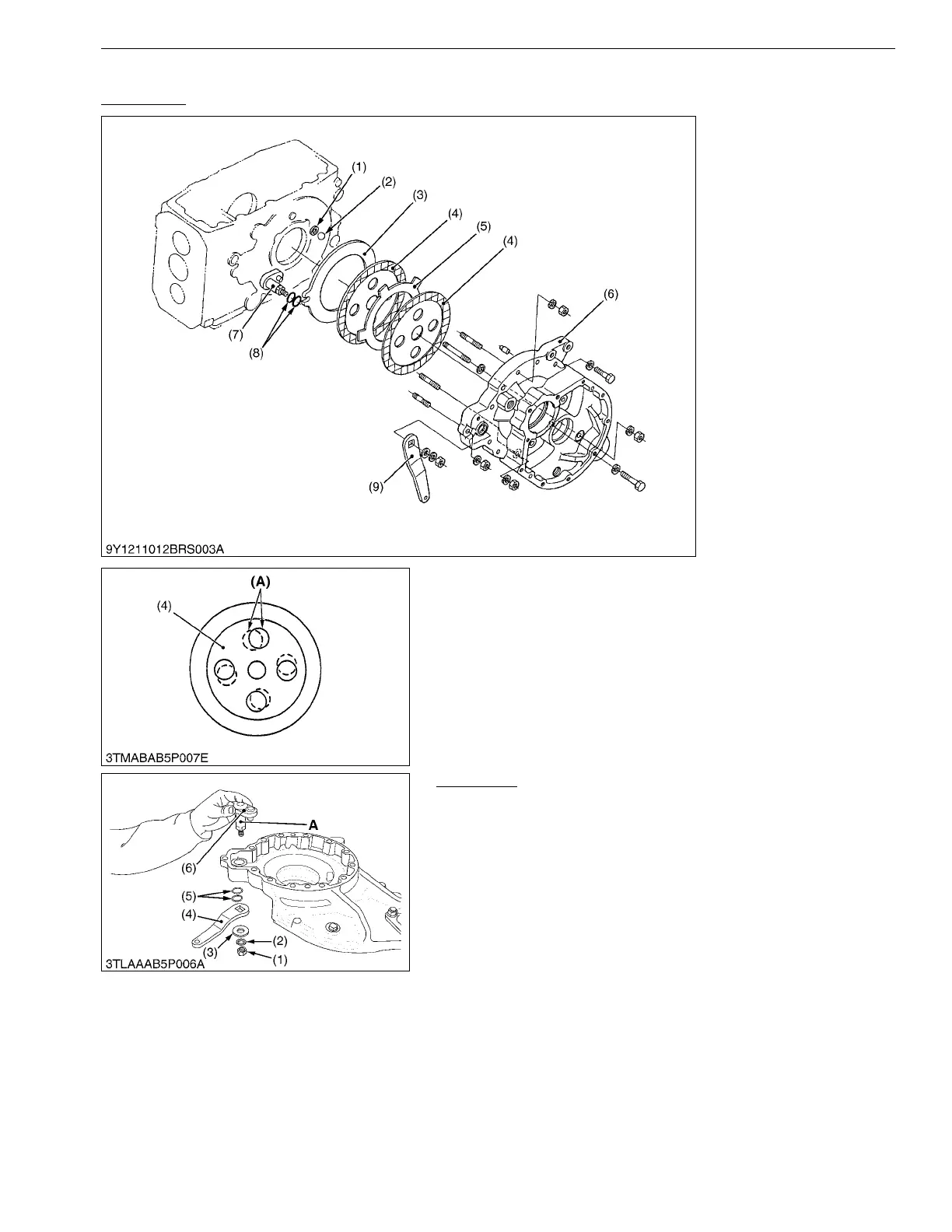

[2] DISASSEMBLING THE BRAKE CASE
Brake Case
It is possible to disassemble as shown in the figure above.
(When reassembling)
• Place the brake discs (4) so that the hole (A) of the second disc
should be overlapped 50 % or more.
9Y1211012BRS0007US0
Brake Cam
1. Remove the nut (1) on the brake cam (6).
2. Remove the brake cam (6) and brake cam lever (4).
(When reassembling)
• Apply grease to the O-ring (5) and be careful not to damage
them.
• Apply small amount of grease to the journal "A" to prevent rust
problem that leads to lock up.
9Y1211012BRS0008US0
(1) Ball Seat
(2) Ball
(3) Cam Plate
(4) Brake Disc
(5) Plate
(6) Brake Case
(7) Brake Cam
(8) O-ring
(9) Brake Cam Lever
(1) Nut
(2) Spring Washer
(3) Plain Washer
(4) Brake Cam Lever
(5) O-ring
(6) Brake Cam
To Next Page
