(2) Check Points of Every 50 Hours
Lubricating Grease Fittings
1. Apply a small amount of multipurpose grease to the following
points every 50 hours:
If you operated the machine in extremely wet and muddy
conditions, lubricate grease fittings more often.
2. When apply grease to forward front axle support, remove the
breather plug and apply grease until grease overflows from
breather plug port.

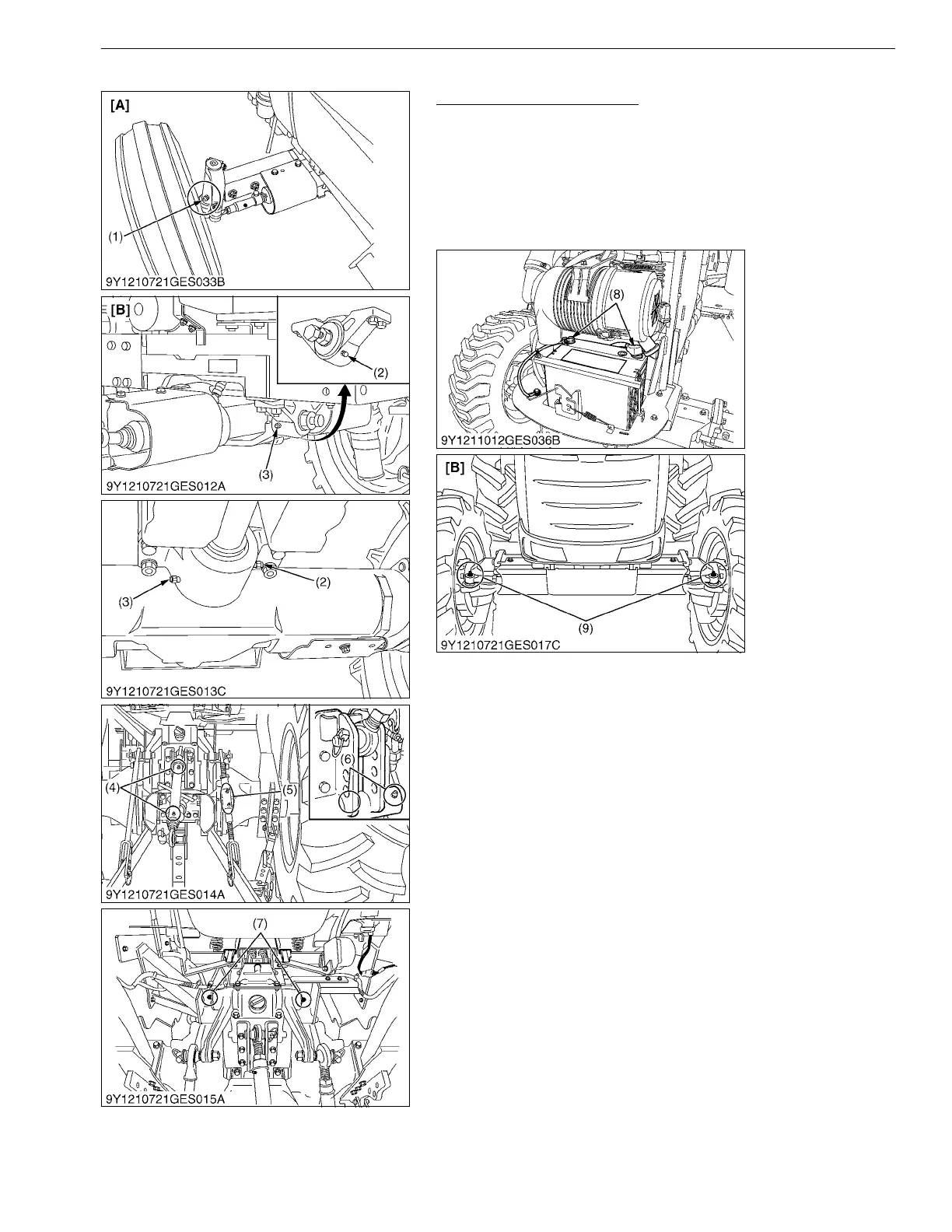

9Y1211012GEG0142US0
(1) Grease Fitting
(Knuckle Shaft) [RH, LH]
(2) Grease Fitting
(Front axle support)
(3) Breather
(4) Grease Fitting (Top Link)
(5) Grease Fitting (Lifting Rod) [RH]
(6) Grease Fitting (Top link bracket)
(with draft control) (if equipped)
(7) Grease fitting (Hydraulic arm axle)
(8) Battery terminals
(9) Grease fitting (Tie-rod ends)
[A] 2WD
[B] 4WD
