HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-S20

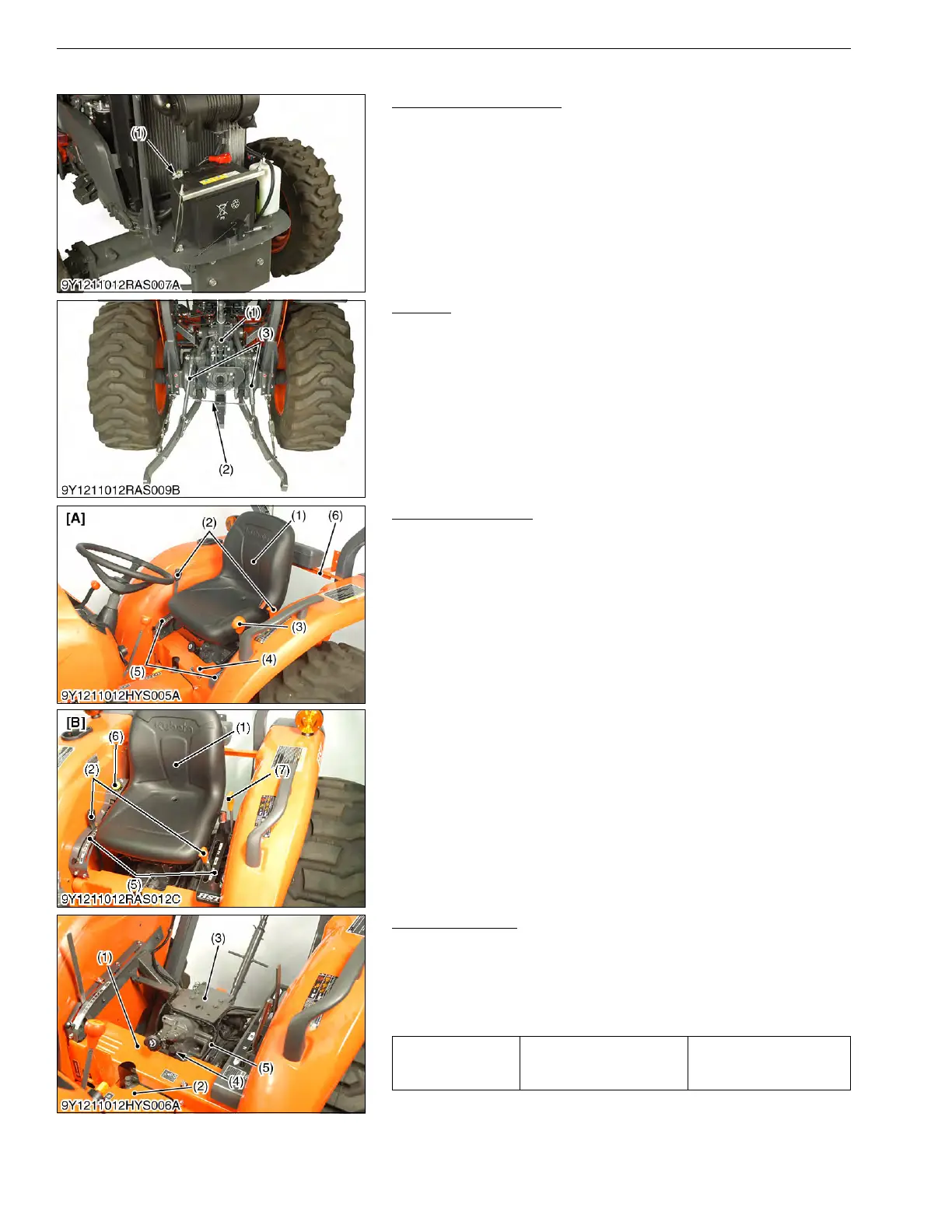

[2] HYDRAULIC CYLINDER
Battery Negative Cable
1. Open the bonnet.
2. Remove the battery negative cable (1).
9Y1211012HYS0009US0
Lift Rod
1. Remove the top link (1).
2. Remove the rubber spring (2).
3. Remove the lift rods (3).
9Y1211012HYS0010US0
Outer Components
1. Remove the seat (1).
2. Remove the grips (2), (3), (4), (7).
3. Remove the lever guides (5).
4. Remove the PTO switch (6).
9Y1211012HYS0011US0
Suspension Seat
1. Remove the floor seat cover (1).
2. Remove the center cover (2).
3. Remove the suspension seat (3).
4. Remove the joint bolt (4).
5. Remove the wiring (5).
9Y1211012HYS0012US0
(1) Battery Negative Cable
(1) Top Link
(2) Rubber Spring
(3) Lift Rod
(1) Seat
(2) Grip
(3) Grip (Shuttle Lever)
[Manual Transmission Model Only]
(4) Grip (4WD Lever)
[4WD Model Only]
(5) Lever Guide
(6) PTO Switch [L4701 Only]
(7) Grip (Cruise Lever)
[L4701 HST Model Only]
[A] L3301/L3901
[B] L4701
Tightening torque
Delivery pipe (hydraulic
block) joint bolt
49 to 69 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
(1) Floor Seat Cover
(2) Center Cover
(3) Suspension Seat
(4) Joint Bolt
(5) Wiring
KiSC issued 09, 2016 A
