REAR AXLE
L3301, L3901, L4701, WSM
4-S8

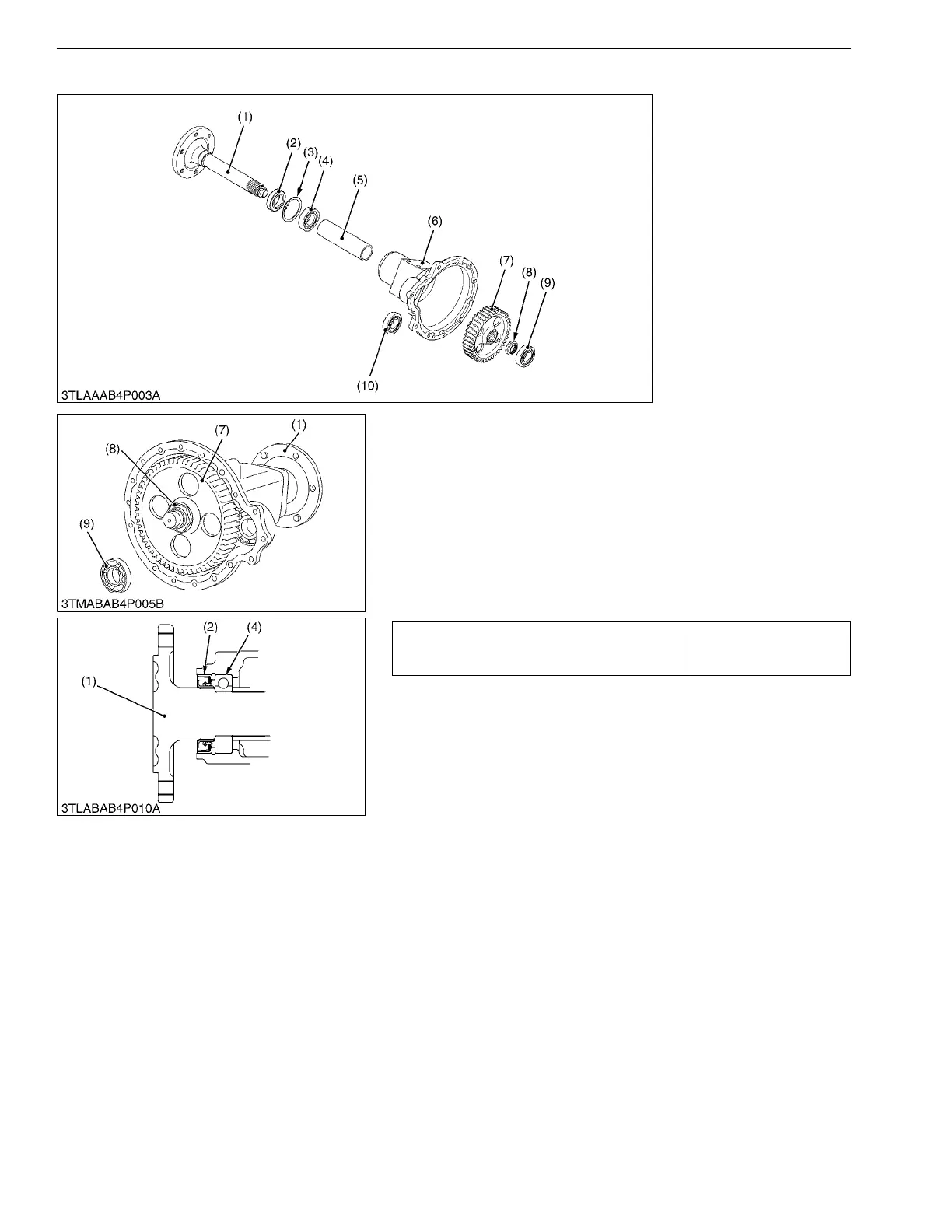

[2] DISASSEMBLING REAR AXLE
1. Remove the ball bearing (9) with a puller.
2. Remove the stake of lock nut (8).
3. Secure the rear axle (1) in a vise and remove the lock nut.
4. Remove the gear (7) and spacer (5).
5. Tap out the rear axle (1).
(When reassembling)
• Apply grease to the oil seal (2) and install it.
• Replace the lock nut with new one, and after tightening it to
specified torque, stake it firmly.
• Assemble the oil seal (2) with correct direction. (See figure on
the left.)
9Y1211012RAS0013US0
(1) Rear Axle
(2) Oil Seal
(3) Internal Snap Ring
(4) Ball Bearing
(5) Spacer
(6) Rear Axle Case
(7) Gear
(8) Lock Nut
(9) Ball Bearing
(10) Ball Bearing
Tightening torque Lock nut
200 to 240 N·m
20 to 25 kgf·m
150 to 180 lbf·ft
