STEERING
L3301, L3901, L4701, WSM
7-S18

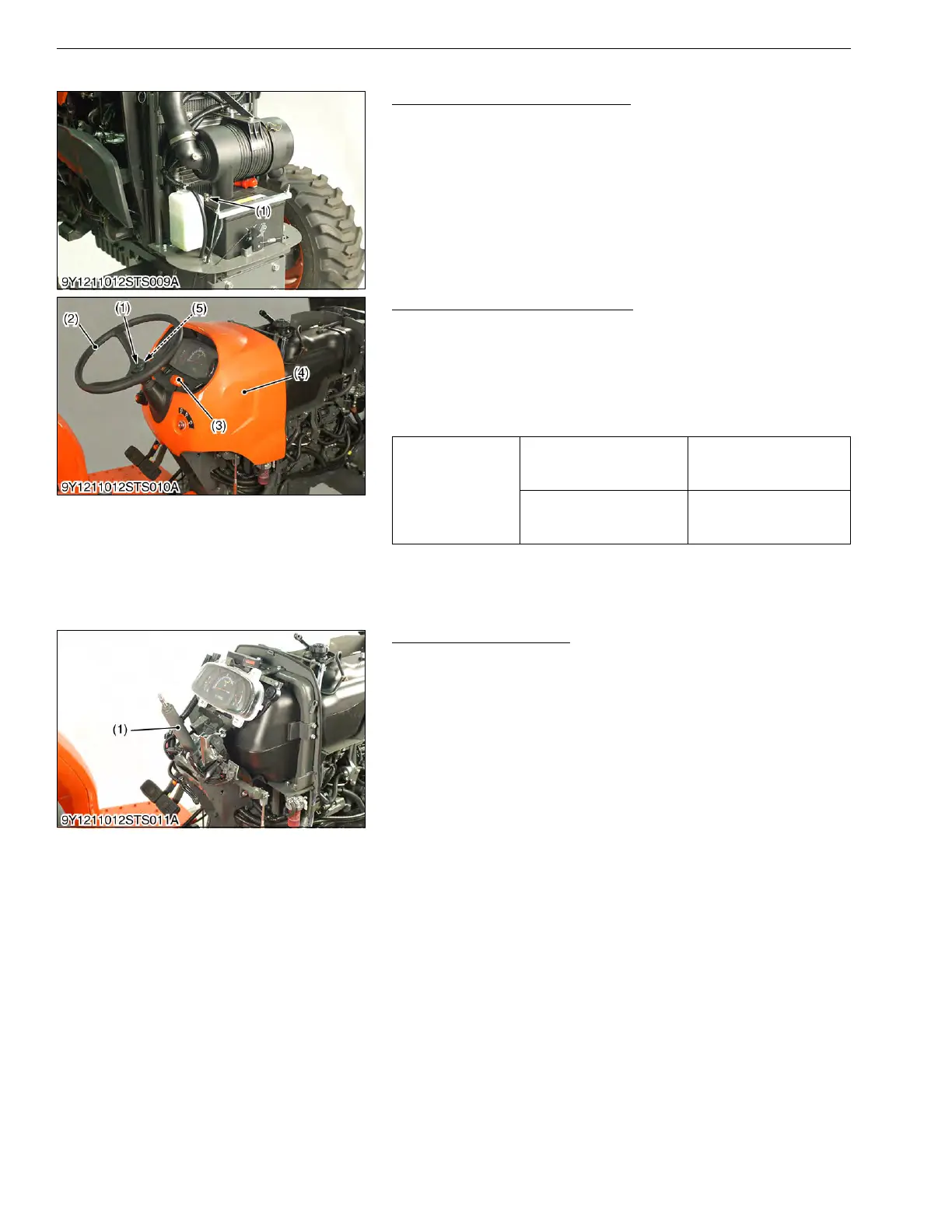

(2) Steering Controller
Battery Negative Cable Terminal
1. Open the bonnet.
2. Disconnect the battery negative cable terminal connector (1).
9Y1211012STS0035US0
Steering Wheel and Rear Bonnet
1. Remove steering wheel cap (1).
2. Remove steering wheel nut (5).Remove steering wheel (2) with
steering puller.
3. Remove the throttle grip (3).
4. After disconnecting connectors for key switch and combination
switch, remove the rear bonnet (4).
9Y1211012STS0036US0
Steering Post Assembly
1. Remove steering post assembly (1).
9Y1211012STS0037US0
(1) Battery Negative Terminal
Connector
Tightening torque
Steering wheel nut
48.0 to 55.9 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
Rear bonnet mounting bolt
4 to 5 N·m
0.4 to 0.6 kgf·m
3 to 4 lbf·ft
(1) Steering Wheel Cap
(2) Steering Wheel
(3) Throttle Grip
(4) Rear Bonnet
(5) Steering Wheel Nut
(1) Steering Post Assembly
KiSC issued 09, 2016 A
