HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-S6
4. CHECKING AND ADJUSTING
[1] HYDRAULIC PUMP (POWER STEERING)
(1) Test Using Flow-meter
Preparation (L3301/L3901 Only)
1. Remove the bolt (2), (4).
2. Remove the joint shaft (1).
(When reassembling)
• Lift the joint shaft (1) so that there should be a clearance (A) of
more than 5 mm (0.2 in.) between the joint shaft (1) and flywheel
housing.
Then fit the support (3) in position.
• Be sure to insert the bolt (2) into cut-out of joint shaft (1).
• Apply grease to spline part of joint shaft (1).
9Y1211012STS0006US0
Tightening torque Bolt (Joint shaft)
23.5 to 27.4 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft

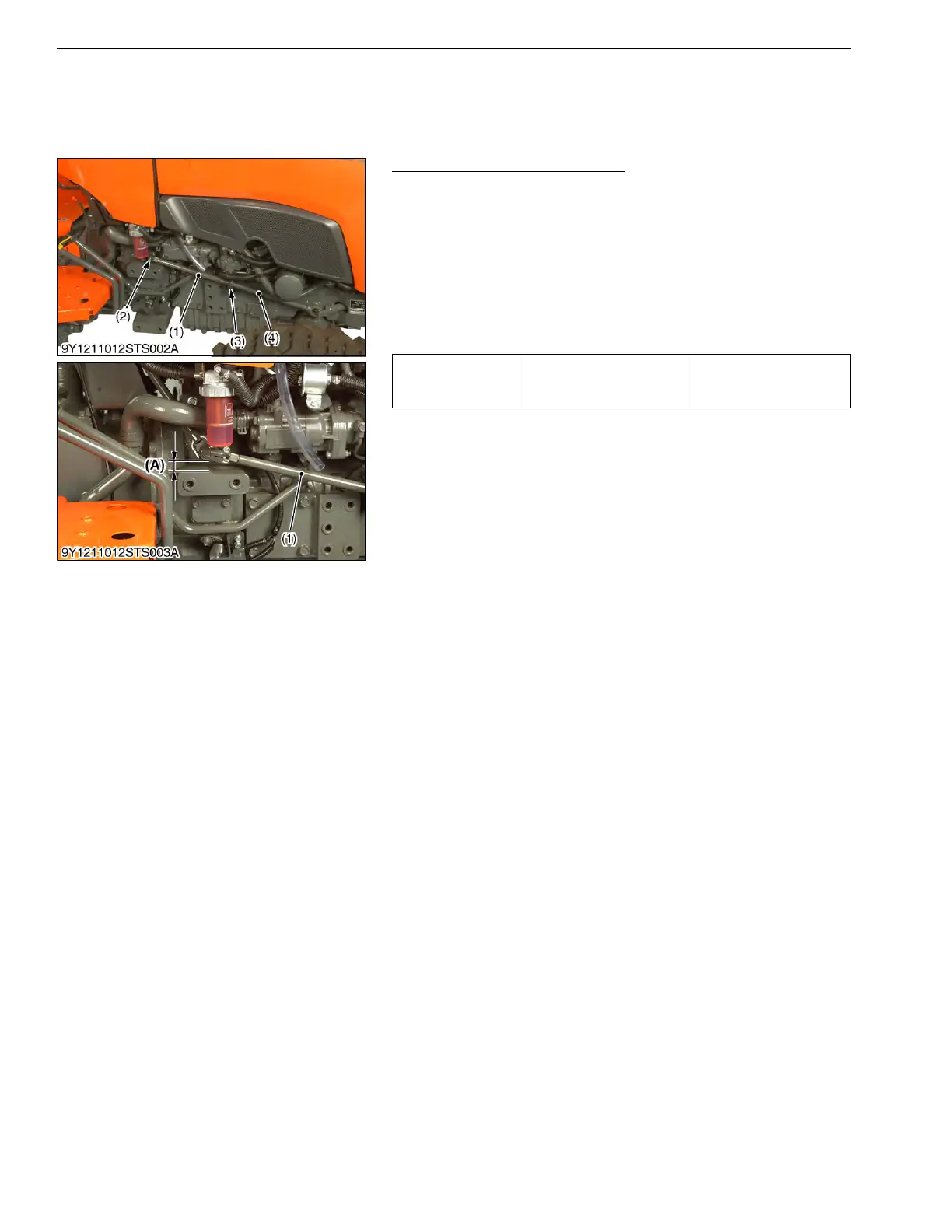

(1) Joint Shaft
(2) Bolt (Joint Shaft)
(3) Support
(4) Bolt (Support)
(A) Clearance
To Next Page
