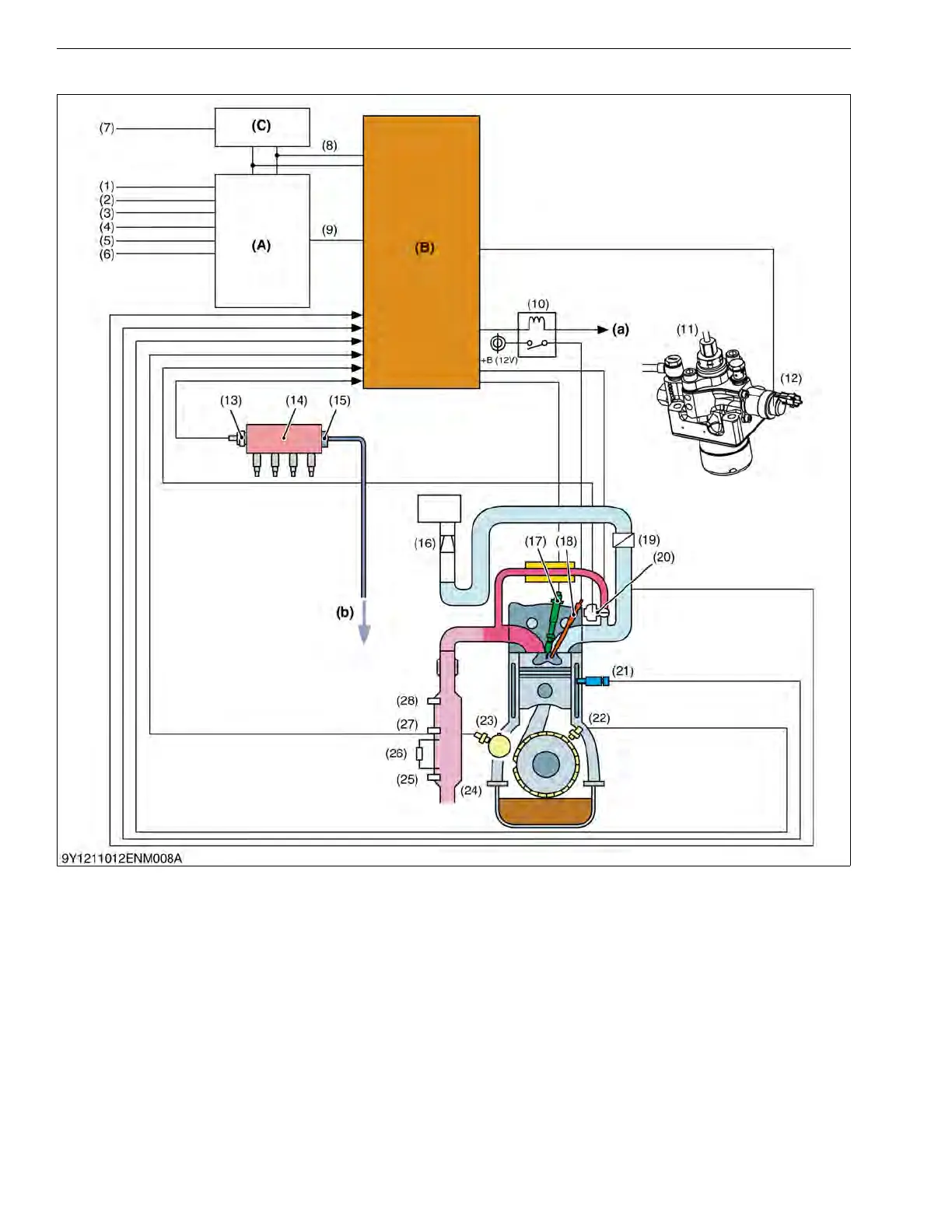

[5] ENGINE CONTROL SYSTEM
9Y1211012ENM0027US0
(1) Key Switch
(2) Acceleration Sensor
(3) DPF INHIBIT Switch
(4) Parked Regeneration Switch
(5) Starter Relay
(6) Parking Brake Switch
(7) Oil Switch
(8) CAN Communication
(9) OPC Signal
(10) Glow Relay
(11) Supply Pump
(12) SCV (Suction Control Valve)
(13) Rail Pressure Sensor
(14) Rail
(15) Rail Pressure Limiter
(16) Air Flow Sensor
(17) Injector
(18) Glow Plug
(19) Intake Throttle Valve
(20) EGR Valve
(21) Coolant Temperature Sensor
(22) Crankshaft Position Sensor
(23) Camshaft Position Sensor
(24) Diesel Particulate Filter
(Hereinafter Referred As The
"DPF") Muffler
(25) Temperature Sensor
(DPF Outlet Exhaust
Temperature) (T
2
)
(26) Differential Pressure Sensor
(DPF Differential Pressure)
(∆P)
(27) Temperature Sensor
(DPF Inlet Exhaust
Temperature) (T
1
)
(28) Temperature Sensor
(DOC Inlet Exhaust
Temperature) (T
0
)
(A) Main ECU
(B) Engine ECU
(C) Instrument Panel
(a) From Main ECU
(b) To Fuel Tank
