TRANSMISSION
L3301, L3901, L4701, WSM
3-M29

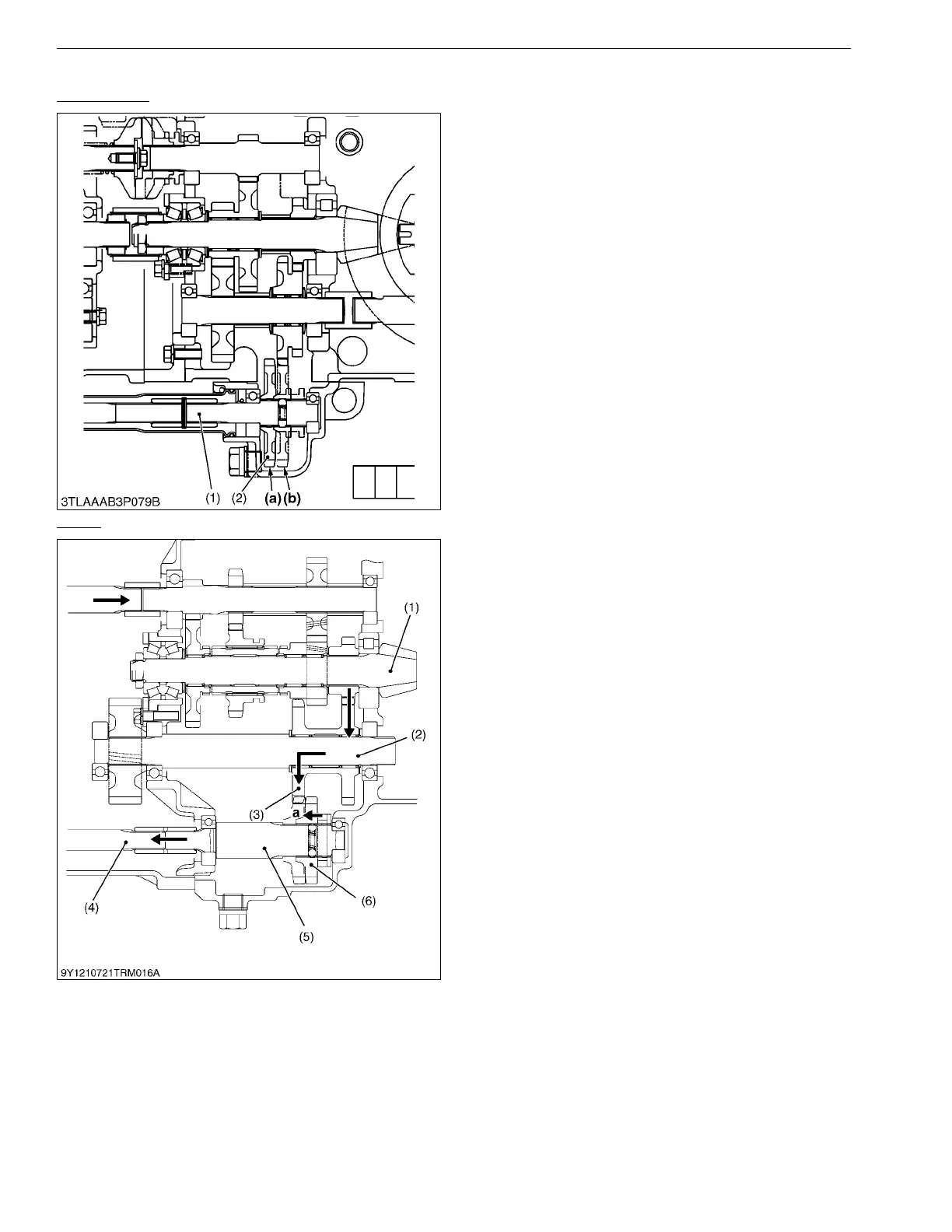

(2) Front Wheel Drive Section
L3301/L3901
Front wheel drive section is located in the differential
gear case.
2 wheel drive or 4 wheel drive is selected by
operating the front wheel drive lever to shift the shift gear
(2).
9Y1211012TRM0031US0
L4701
Front wheel drive section is located in the differential
gear case.
2 wheel drive or 4 wheel drive is selected by
operating the front wheel drive lever to shift the DT shift
gear (6).
9Y1211012TRM0032US0
(1) Front Wheel Drive Shaft
(2) Shift Gear
(a) 2 Wheel Drive Position
(b) 4 Wheel Drive Position
(1) 6T Spiral Bevel Pinion Shaft
(2) PTO Drive Shaft
(3) 29T-31T DT Gear
(4) Propeller Shaft
(5) DT Shaft
(6) DT Shift Gear
a: 4 Wheel Drive (DT) Position
KiSC issued 09, 2016 A
