TRANSMISSION
L3301, L3901, L4701, WSM
3-S73

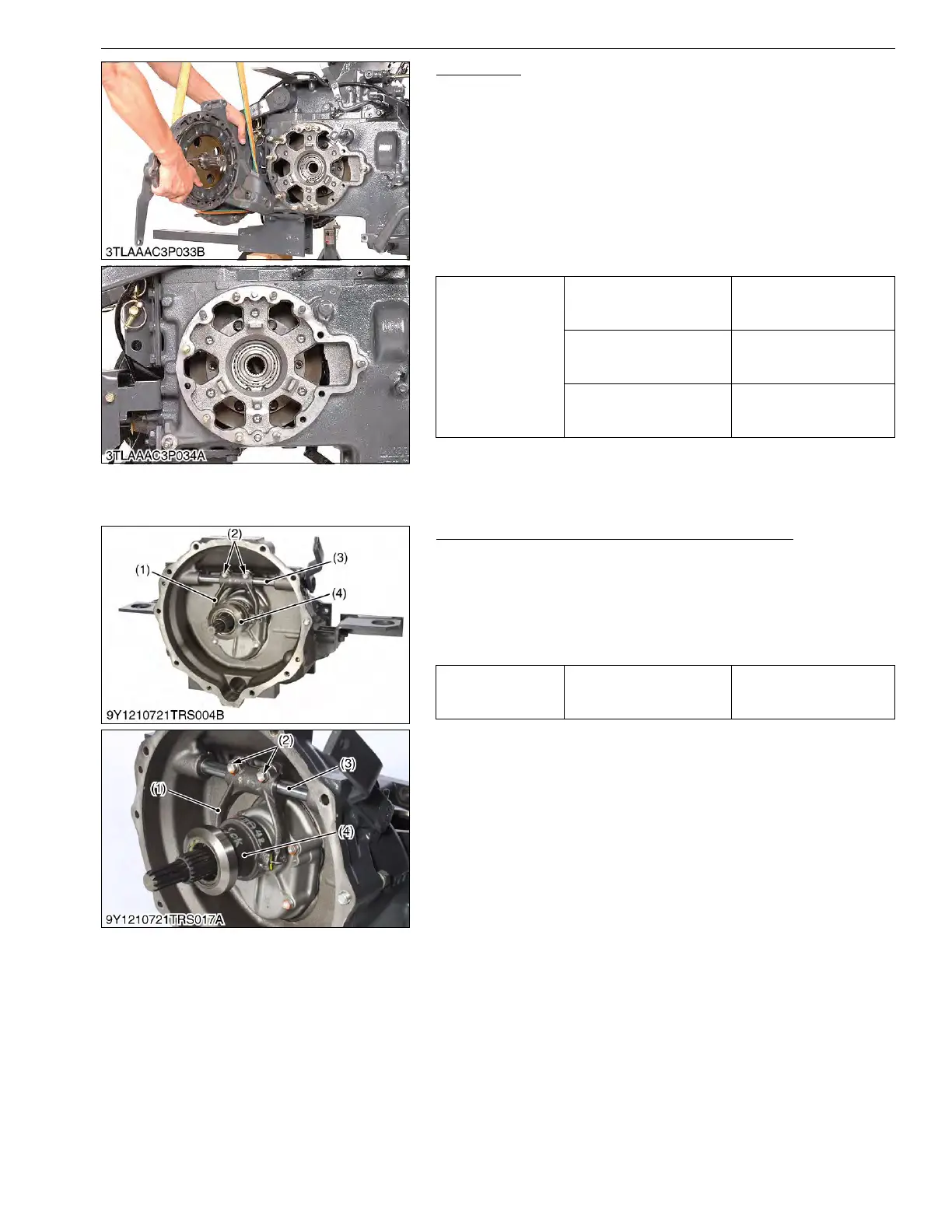

Brake Case
1. Remove the brake case mounting screws and nuts.
2. Separate the brake case, tapping the brake case lever lightly.
(When reassembling)
• Apply grease to the brake ball seats. (Do not grease
excessively.).
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the brake case and transmission case, after eliminate
the water, oil and stuck liquid gasket.
• Before installing the brake case to the transmission case, install
the cam plate to the transmission case.
9Y1211012TRS0088US0
(2) Disassembling and Assembling (Manual Transmission Model)
[A] Clutch Housing Case
Clutch Lever, Release Fork and Release Bearing
1. Remove the release fork mounting screws (2).
2. Draw out the clutch lever (3) to remove the release fork (1).
3. Remove the release bearing (4) together with release holder.
(When reassembling)
• Apply grease to the sliding surface of the clutch release hub.
• Apply grease to the clutch lever.
9Y1211012TRS0089US0
Tightening torque
Brake case mounting stud
bolts
38.2 to 45.1 N·m
3.9 to 4.6 kgf·m
28.2 to 33.3 lbf·ft
Brake case mounting
screws and nuts
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 lbf·ft
Brake case lever mounting
screw
62.8 to 72.5 N·m
6.4 to 7.4 kgf·m
46.3 to 53.5 lbf·ft
Tightening torque
Release fork mounting
screw
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Release Fork
(2) Release Fork Mounting Screw
(3) Clutch Lever
(4) Release Bearing
