TRANSMISSION
L3301, L3901, L4701, WSM
3-M32
(2) Cruise Control
L3301/L3901 (Option)

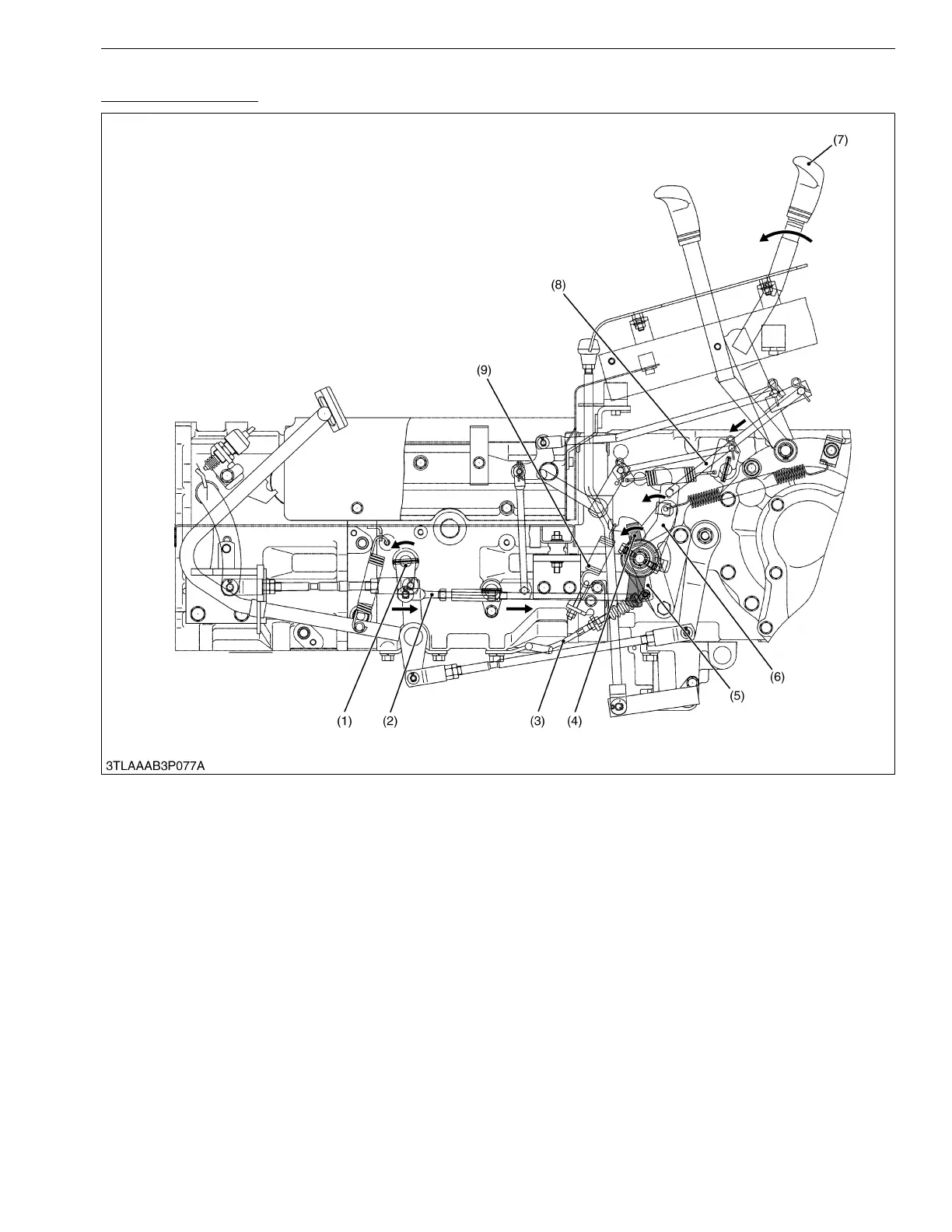

The cruise control lever (7) and HST pedal are linked with the lever rod (8), cruise lever 1 (4), cruise lever 2 (6),
cruise adjusting rod (2) and connecting shaft (1).
When the cruise control lever (7) is moved to forward direction, cruise lever 2 (6) is moved to arrow direction by
the lever rod (8). The cruise lever 1 (4) is moved forward by being pushed to the cruise lever 2 (6), and cruise adjusting
rod (2) is pulled backward. Because cruise adjusting rod (2) and the HST pedal are connected by the connecting shaft
(1), the HST pedal is moved and HST becomes forward position.
The cruise control can be returned to neutral automatically when brake pedals are depressed.
When brake pedals are depressed, release wire pull the release lever (5) to forward.
As result, the holding force of cruise control lever (7) is lost and the cruise control lever (7) return to neutrality by
force of release spring (9).
9Y1211012TRM0035US0
(1) Connecting Shaft
(2) Cruise Adjusting Rod
(3) Release Wire
(4) Cruise Lever 1
(5) Release Lever
(6) Cruise Lever 2
(7) Cruise Control Lever
(8) Lever Rod
(9) Release Spring
