ENGINE
L3301, L3901, L4701, WSM
1-S39

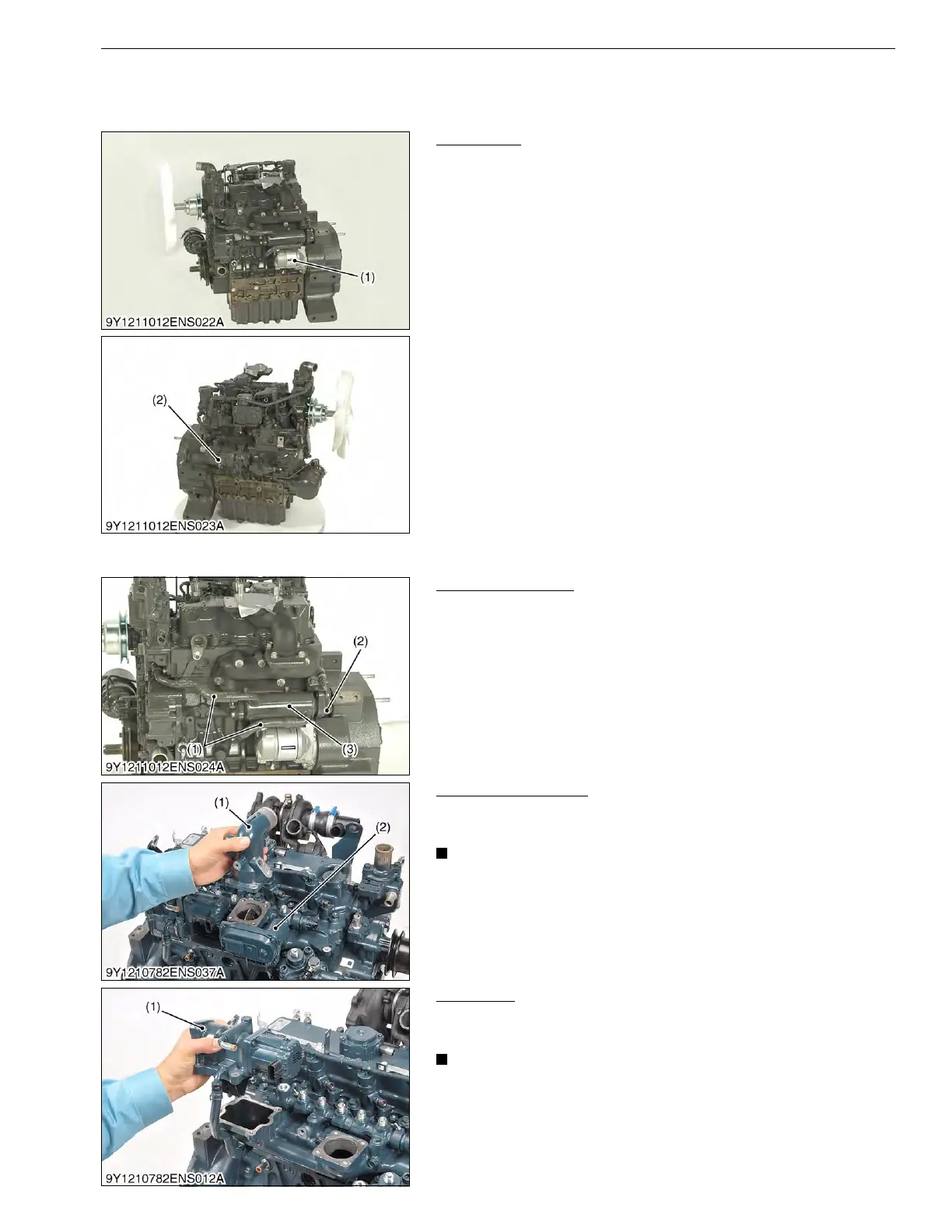

6. DISASSEMBLING AND ASSEMBLING
[1] OUTER PARTS
Outer Parts
1. Remove starter motor (1).
2. Remove hydraulic pump (2) with pump holder and regulator
valve (L4701 only).
9Y1211012ENS0030US0
[2] EGR
EGR Related Parts
1. Remove EGR cooler hose (1).
2. Remove EGR pipe (2).
3. Remove EGR cooler (3).
9Y1211012ENS0031US0
Intake Throttle Valve
1. Remove the air cleaner flange (1).
2. Remove the intake throttle valve (2).
NOTE
• Do not disassemble the intake throttle valve.
(When reassembling)
• Replace the gaskets with new ones.
9Y1211012ENS0032US0
EGR Valve
1. Disconnect the cooler pipe of EGR valve.
2. Remove the EGR valve (1).
NOTE
• Do not disassemble the EGR valve assembly.
(When reassembling)
• Replace the gaskets with new ones.
9Y1211012ENS0033US0
(1) Starter Motor (2) Hydraulic Pump
(1) EGR Cooler Hose
(2) EGR Pipe
(3) EGR Cooler
(1) Air Cleaner Flange (2) Intake Throttle Valve
(1) EGR Valve
KiSC issued 09, 2016 A
