TRANSMISSION
L3301, L3901, L4701, WSM
3-S86

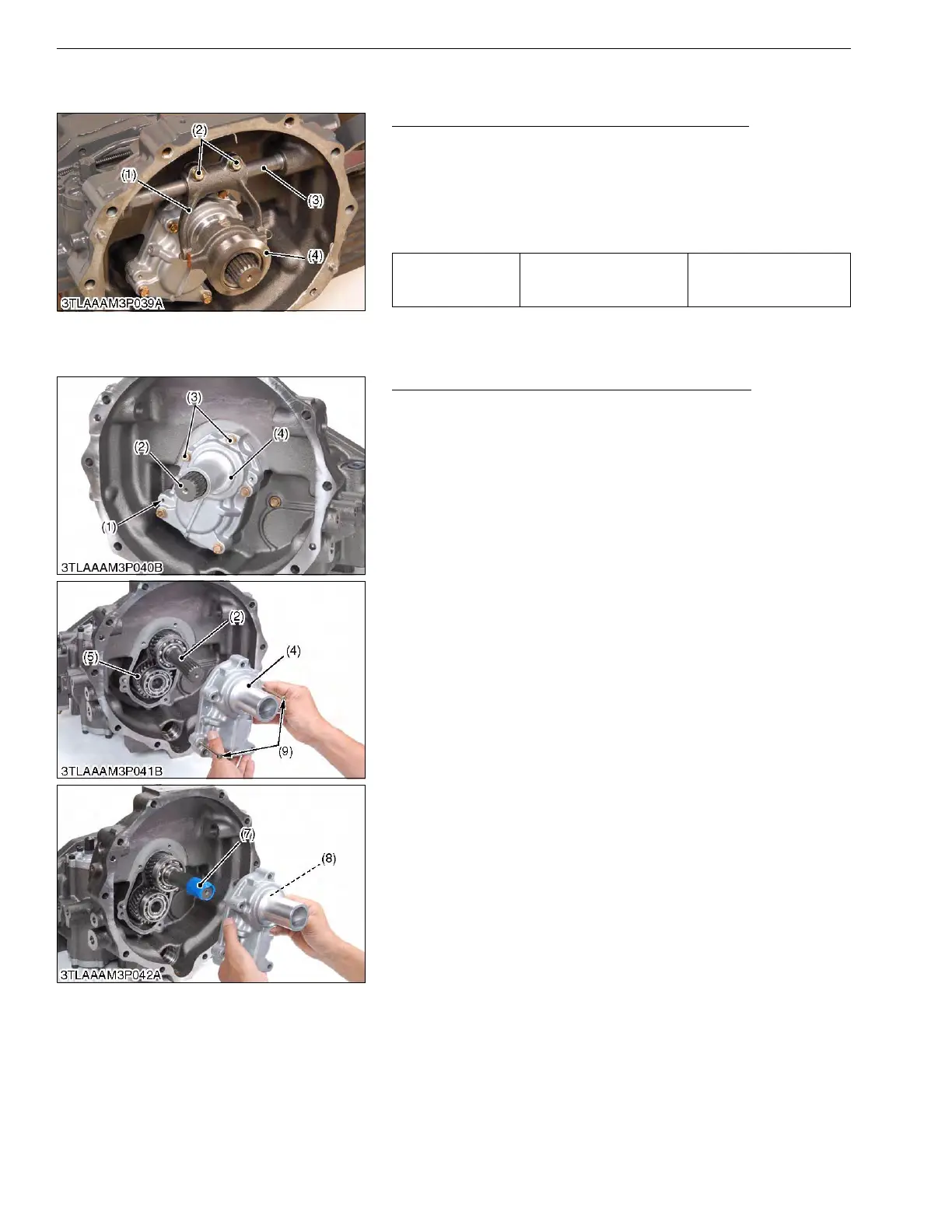

(3) Disassembling and Assembling (HST Model)
[A] HST Housing Case
Clutch Lever, Release Fork and Release Bearing
1. Remove the release fork mounting bolts (2).
2. Draw out the clutch lever (3) to remove the release fork (1).
3. Remove the release bearing and the release hub (4) together.
(When reassembling)
• Apply grease to the sliding surface of the clutch release hub.
• Apply grease to the clutch lever.
9Y1211012TRS0110US0
Input Shaft Case, Input Gear Shaft and HST Gear
1. Remove the shaft case mounting bolts (3).
2. Screw down the two M6 screw into the bolt hole (1) of the input
shaft case (4) and pull it out.
3. Remove the input shaft case (4).
4. Remove the 23T input gear shaft (2).
(When reassembling)
• Be sure to install the gasket between the shaft case and the
HST housing case.
• Do not damage the oil seal using the vinyl tape to the 23T input
gear shaft.
• Apply grease to the oil seal.
9Y1211012TRS0111US0
Tightening torque Release fork mounting bolt
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.4 to 20.3 lbf·ft
(1) Release Fork
(2) Release Fork Mounting Bolt
(3) Clutch Lever
(4) Release Hub
(1) Bolt Hole
(2) 23T Input Gear Shaft
(3) Bolt
(4) Input Shaft Case
(5) 27T HST Gear
(6) HST Pump Shaft
(7) Vinyl Tape
(8) Oil Seal
(9) Jack Bolt
KiSC issued 09, 2016 A
