BRAKES
L3301, L3901, L4701, WSM
5-S4
4. CHECKING AND ADJUSTING

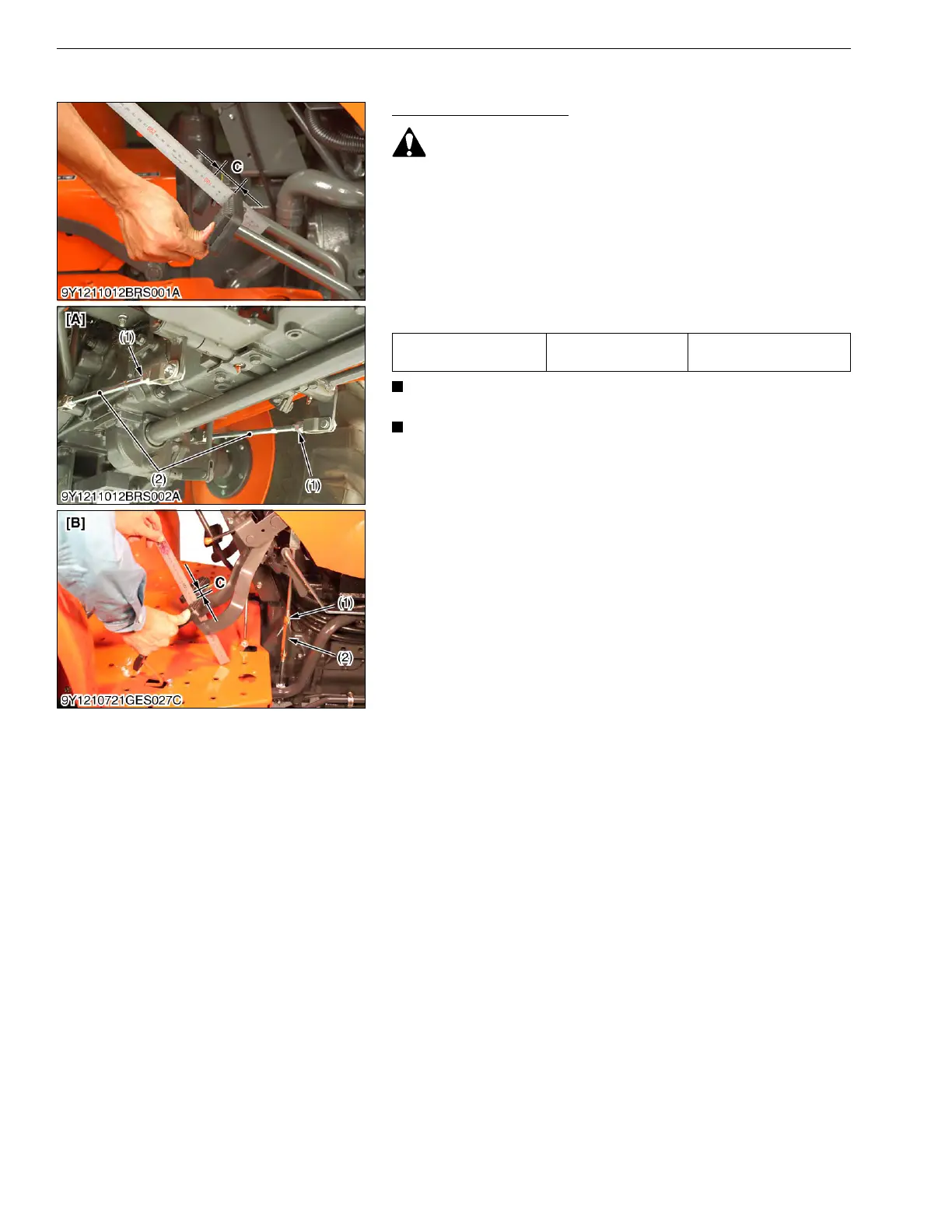

Brake Pedal Free Travel
• Stop the engine and remove the key, then chock the wheel
before checking brake pedals.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel "C"
at top of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nuts (1) and turn the brake rods (2) to adjust the
rod length within the factory specifications.
4. Retighten the lock nut (1).
• Keep the free travel in the right and left brake pedals equal.
• The difference between the right and left pedal free travels
must be less than 5 mm (0.2 in.).
• After checking brake pedal free travel, be sure to engage
the parking brake lock fully and check to see that the brake
pedals are securely locked.
9Y1211012BRS0004US0
Brake pedal free travel
"C"
Factory specification
15 to 20 mm
0.6 to 0.8 in.
(1) Lock Nut
(2) Brake Rod
[A] L3301/L3901
[B] L4701 HST
C: Free Travel
