ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-M8
(4) Sensors
Fuel Level Sensor
This sensor (1) is designed to detect the fuel level in
the fuel tank. It detects the position of the float that
moves according to the quantity of fuel through the
variation in resistance of the variable resistor in order to
indicate the fuel level on the electronic instrument panel.
9Y1211012ELM0019US0
Coolant Temperature Sensor
This sensor (1) is designed to detect the temperature
of coolant. It employs a thermistor, and detects the
variation in resistance due to a change in temperature to
indicate the coolant temperature on the electronic
instrument panel.
9Y1211012ELM0020US0
Acceleration Sensor
The acceleration sensor (1) detects the amount of
hand throttle lever and foot throttle operation.
9Y1211012ELM0021US0
(5) Others
Glow Relay
This tractor has a glow circuit to improve
performance of engine starting in cold conditions.
Engine ECU controls the time current flows into glow
plugs by controlling current flows into glow relay.
9Y1211012ELM0022US0

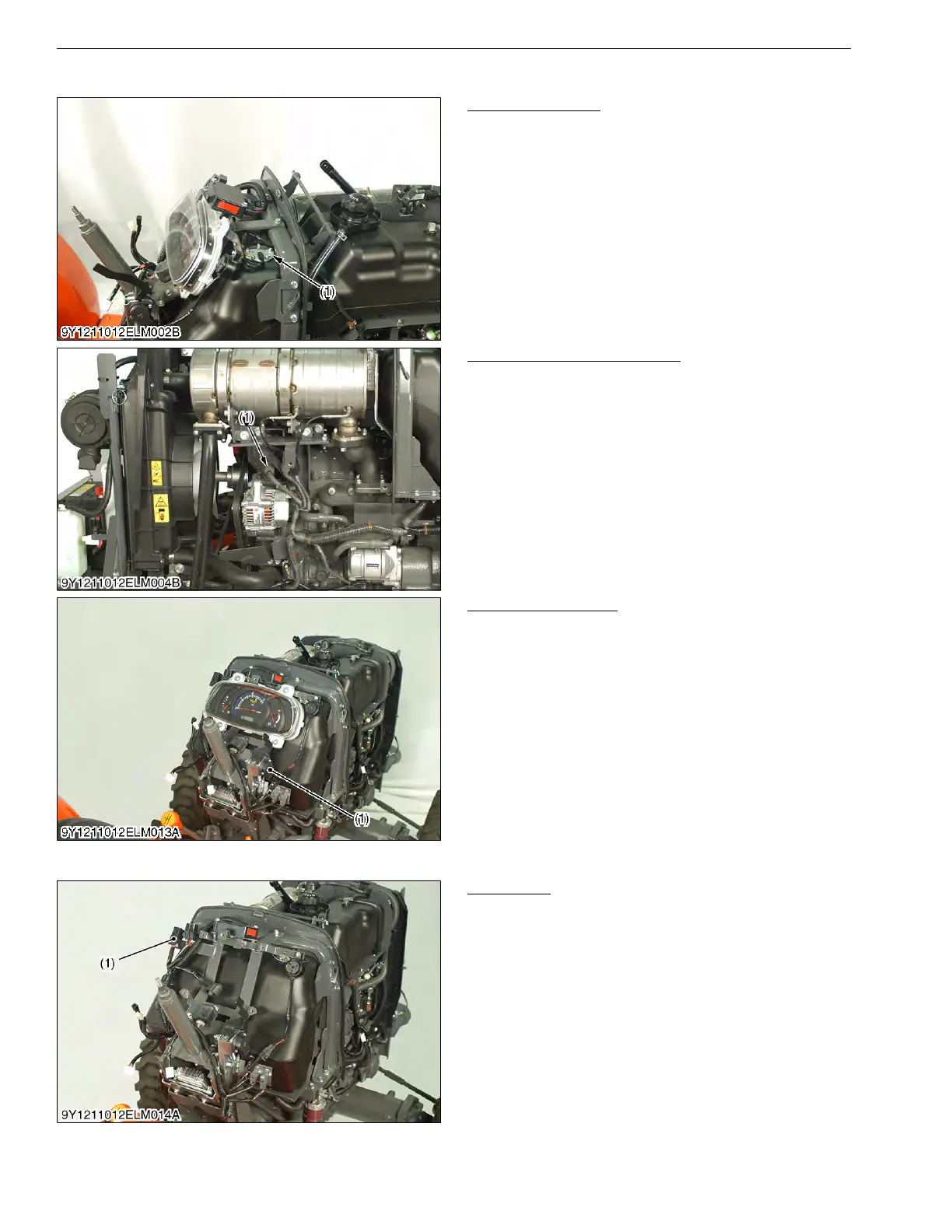

(1) Fuel Level Sensor
(1) Coolant Temperature Sensor
(1) Acceleration Sensor
(1) Glow Relay
