wsm L4701 - Water Pump and Oil Cooler

ENGINE
L3301, L3901, L4701, WSM
1-S49

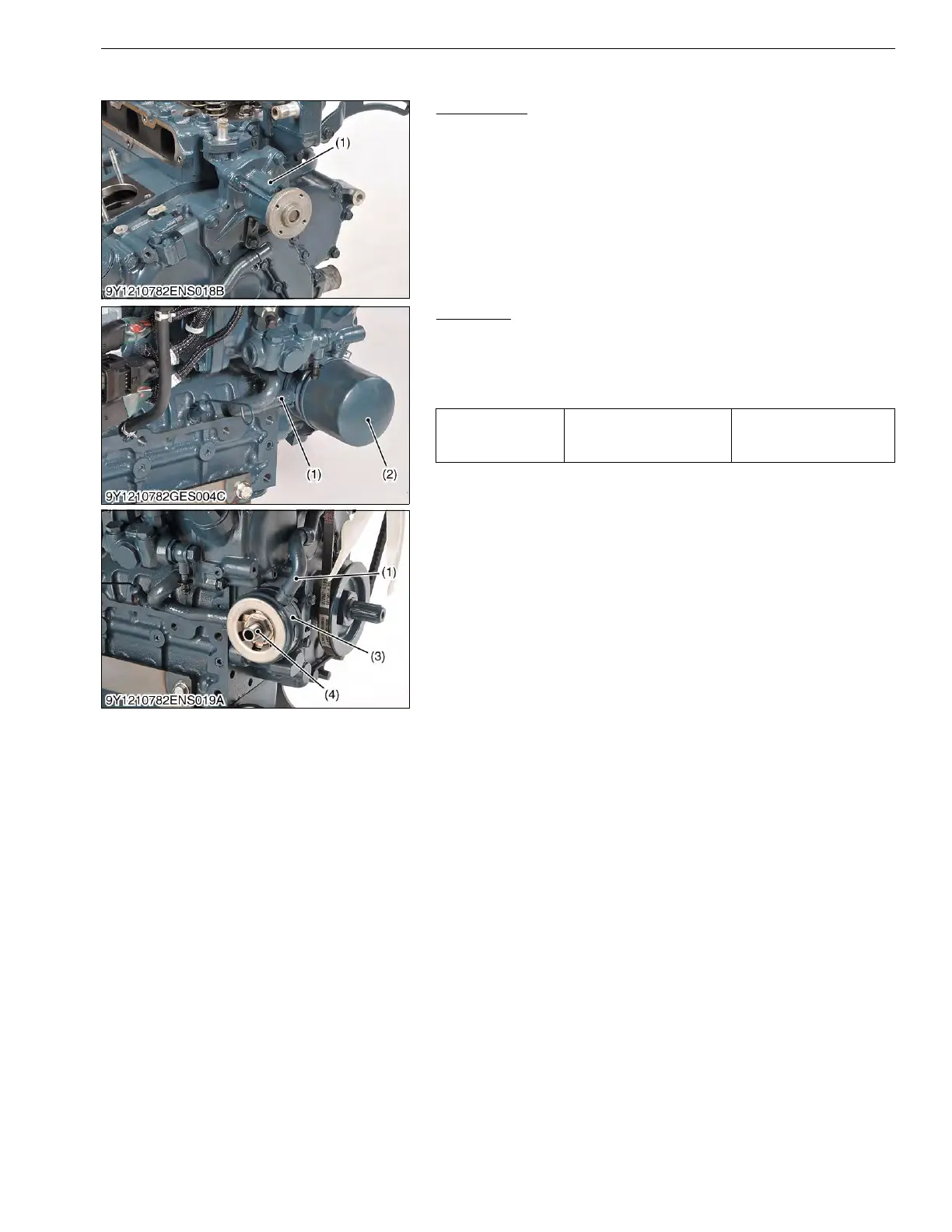

[7] WATER PUMP AND OIL COOLER
Water Pump
1. Remove the pipe band and the water pipe (water pump side).
2. Remove the water pump (1).
(When reassembling)
• When mounting the water pump, be careful not to forget
mounting the O-ring and not to let it out of position.
9Y1211012ENS0047US0
Oil Cooler
1. Remove the water pipe (1).
2. Remove the oil filter cartridge (2).
3. Remove the oil cooler joint screw (4).
4. Remove the oil cooler (3).
9Y1211012ENS0048US0
(1) Water Pump
Tightening torque Oil cooler joint screw
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
(1) Water Pipe
(2) Oil Filter Cartridge
(3) Oil Cooler
(4) Oil Cooler Joint Screw
KiSC issued 09, 2016 A
