CLUTCH
L3301, L3901, L4701, WSM
2-S21

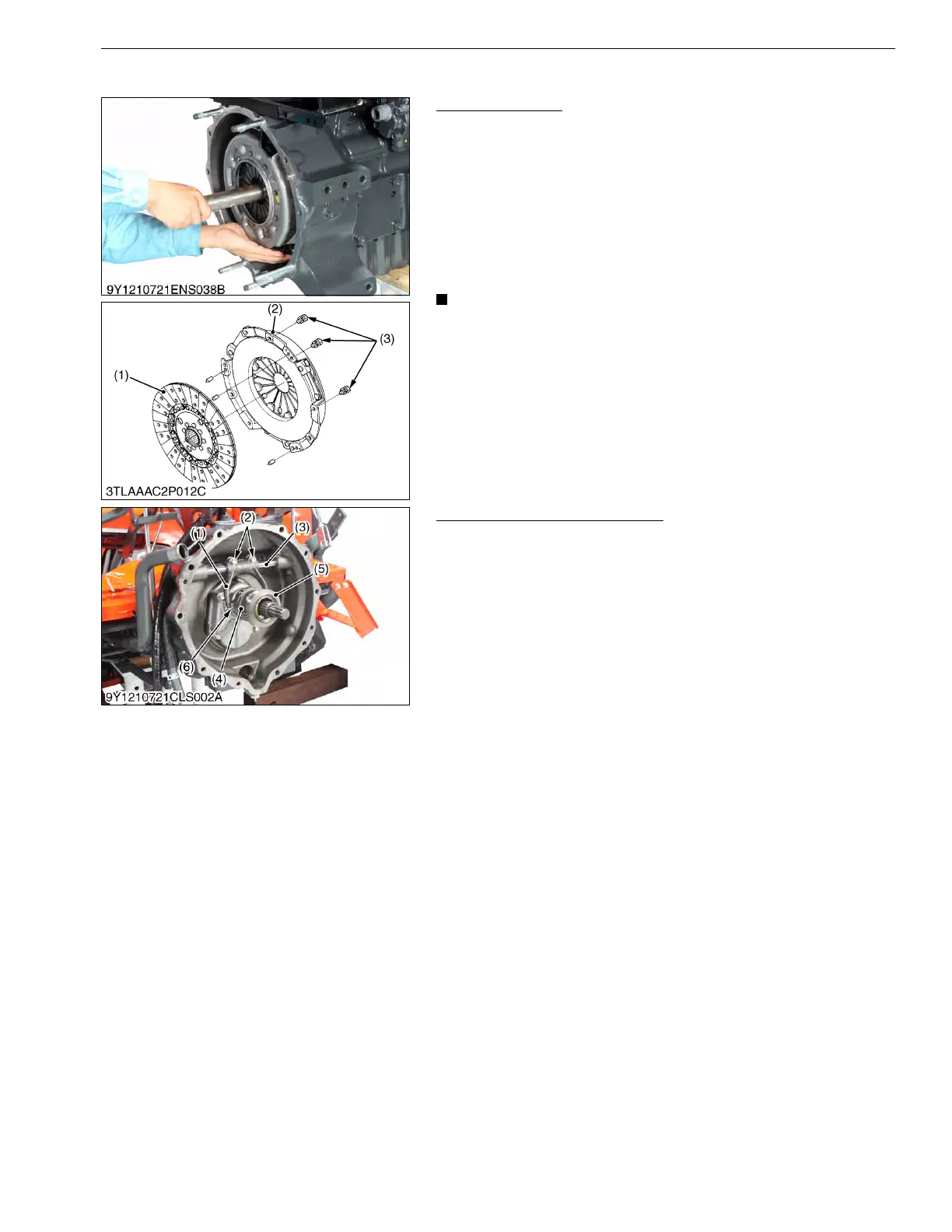

(2) Separating Clutch Assembly
Clutch Assembly
1. Insert the clutch center tool.
2. Remove the clutch assembly together with the clutch center
tool.
(When reassembling)
• Direct the shorter end of the clutch disc boss toward the
flywheel.
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of clutch disc boss.
• Insert the pressure plate, noting the position of straight pins.
IMPORTANT
• Be sure to align the center of disc and flywheel by inserting
the clutch tool set.
9Y1211012CLS0012US0
Release Fork and Clutch Lever
1. Draw out the clutch release hub (4) and the release bearing (5)
as a unit.
2. Remove the release fork setting screws (2).
3. Draw out the clutch lever (3) to remove the release fork (1).
(When reassembling)
• Make sure the direction of the release fork (1) is correct.
• Inject grease to the release hub (4).
• Be sure to set the snap pins (6) on both sides.
9Y1211012CLS0013US0
(1) Clutch Disc
(2) Pressure Plate Assembly
(3) Clutch Mounting Screw
(1) Release Fork
(2) Setting Screw
(3) Clutch Lever
(4) Release Hub
(5) Release Bearing
(6) Snap Pin
