ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S43

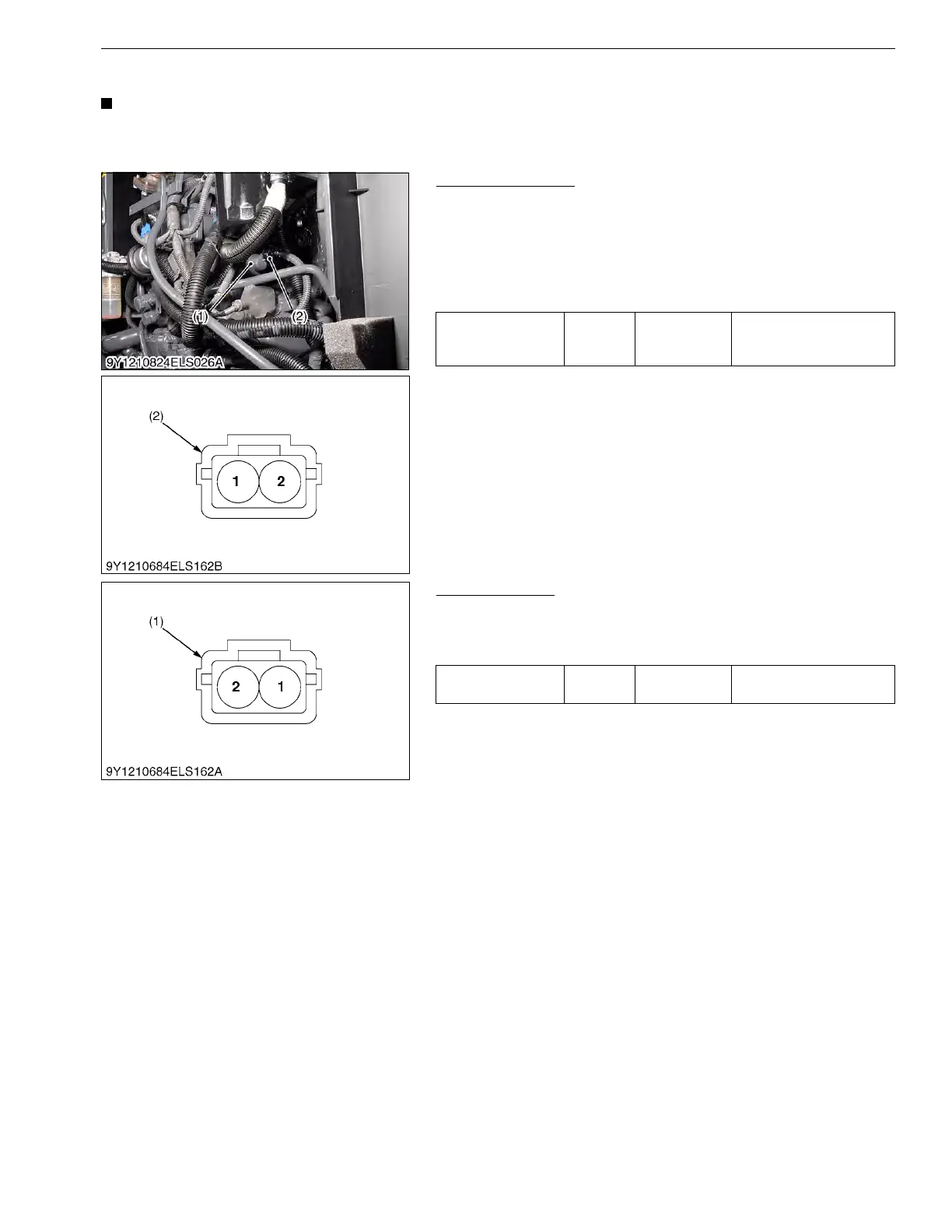

(2) SCV (Suction Control Valve)
• Firstly check the connector voltage, secondly check the other wires continuity, then finally check the SCV
resistance.
9Y1211012ELS0071US0
Connector Voltage
1. Disconnect the connector, and turn the main key switch "ON"
position.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1211012ELS0072US0
SCV Resistance
1. Measure the resistance with an ohmmeter across the terminals
shown in the table below.
2. If the reference value is not indicated, the SCV is damaged.
9Y1211012ELS0073US0
Voltage
Main
switch at
"ON"
Terminal 2 –
Chassis
Approx. battery voltage
(1) SCV (Suction Control Valve) (2) Connector (Harness Side)
Resistance
at 20 °C
(68 °F)
Terminal 1 – 2 2.60 to 3.15 Ω
(1) Connector (SCV Side)
To Next Page
