ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S27

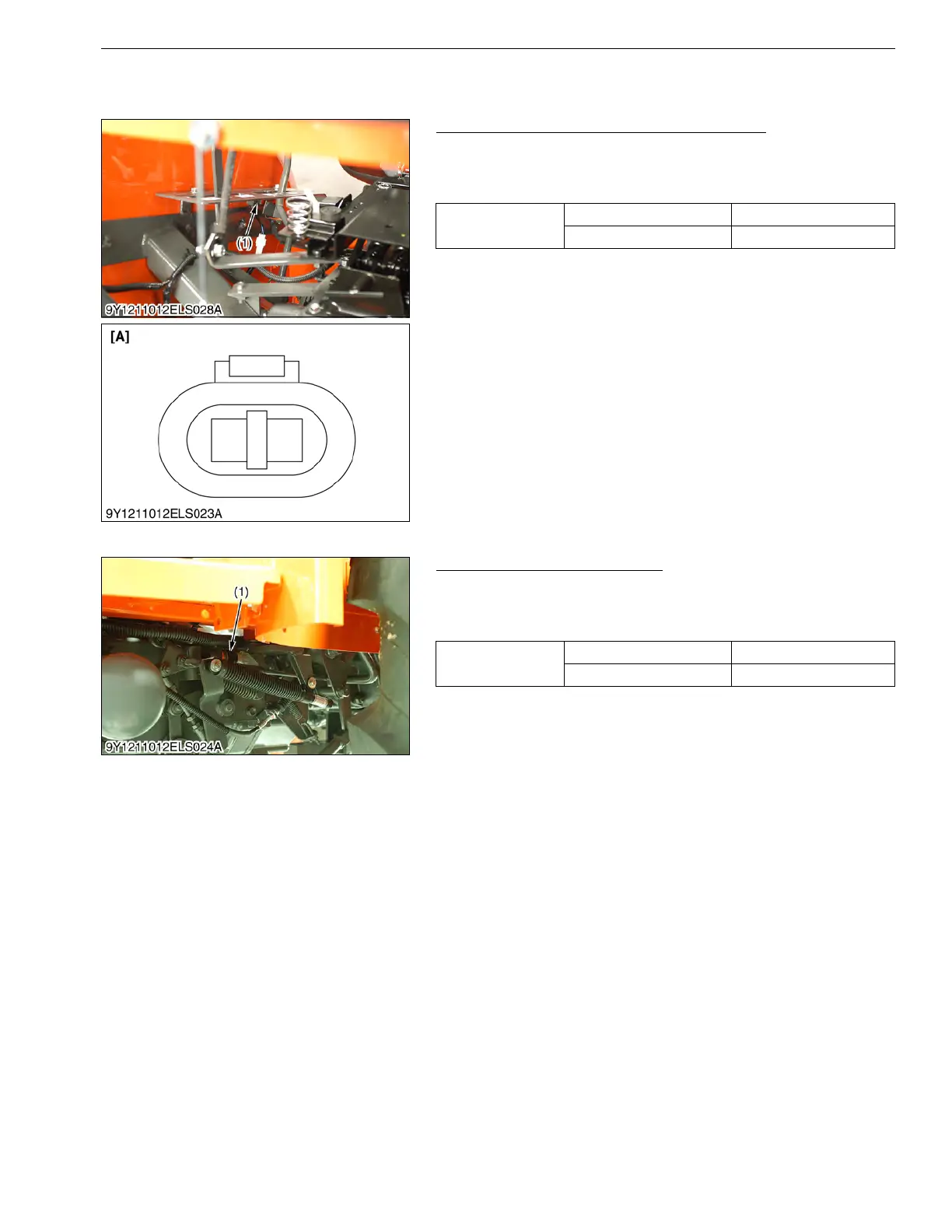

(2) Safety Switches
[A] Shuttle Switch (Manual Transmission Model)
Shuttle Switch (Manual Transmission Model)
1. Remove connector of shuttle switch (1).
2. Measure the resistance across two terminals of the connector.
3. If measurement is different from following table, replace it.
9Y1211012ELS0031US0
[B] HST Pedal Switch (HST Model)
HST Pedal Switch (HST Model)
1. Remove connector of HST pedal switch (1).
2. Measure the resistance across two terminals of the connector.
3. If measurement is different from following table, replace it.
9Y1211012ELS0032US0
Resistance (Across
switch terminal)
When switch is pushed 0 Ω
When switch is released Infinity
(1) Shuttle Switch [A] Shuttle Switch Side Connector 2P
Resistance (Across
switch terminal)
When switch is pushed 0 Ω
When switch is released Infinity
(1) HST Switch
KiSC issued 09, 2016 A
