2. STRUCTURE (L4701)
[1] LINKAGE

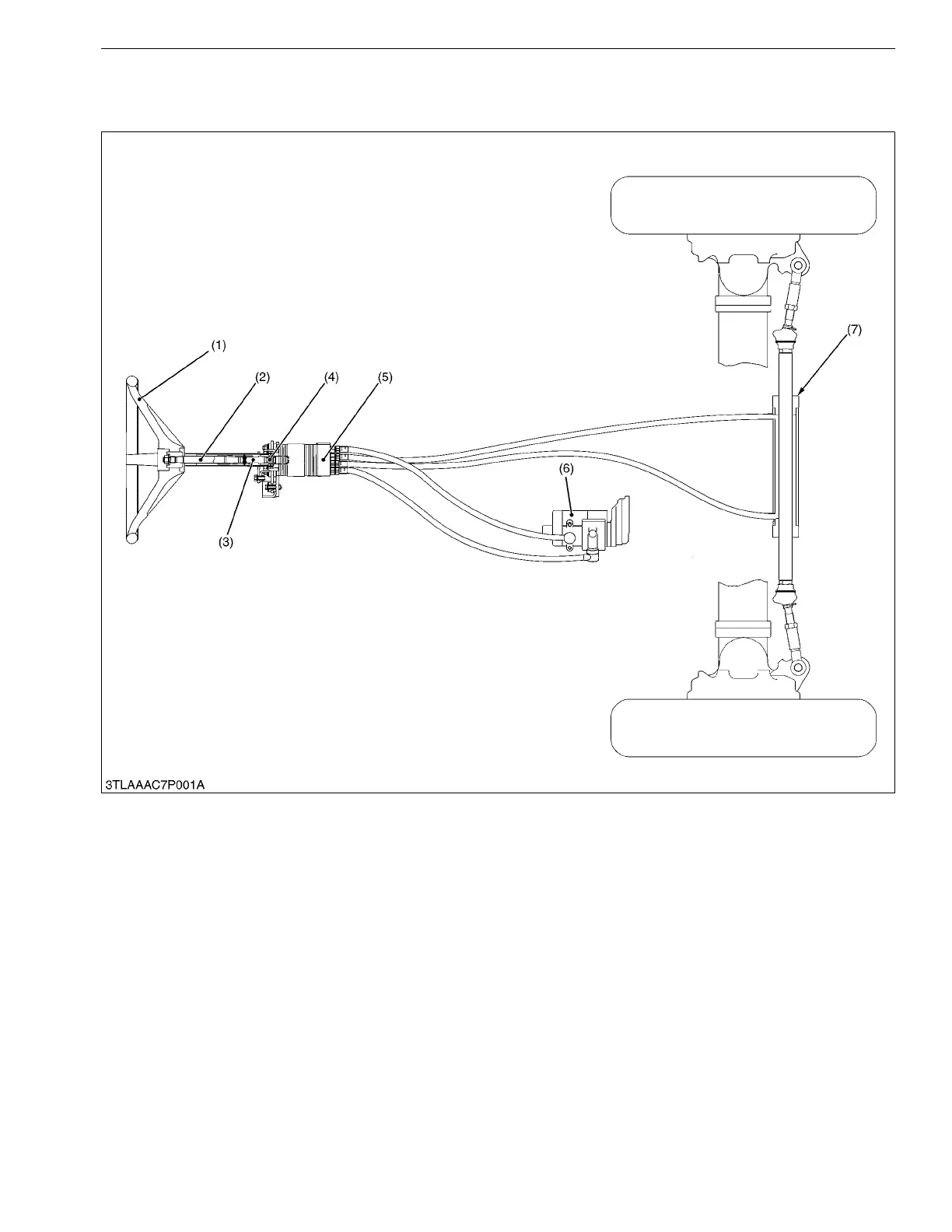

Full hydrostatic type power steering is used on this model. The steering system consists of steering wheel,
steering controller, steering cylinder and other components shown in the figure.
9Y1211012STM0009US0
(1) Steering Wheel
(2) Steering Shaft 1
(3) Steering Shaft 2
(4) Joint Shaft 2
(5) Steering Controller
(6) Hydraulic Pump
(7) Steering Cylinder
