ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-M16
[3] ENGINE STARTING CONDITIONS
When the following conditions become complete, the
engine can be started by turning key switch to START
position.
9Y1211012ELM0032US0

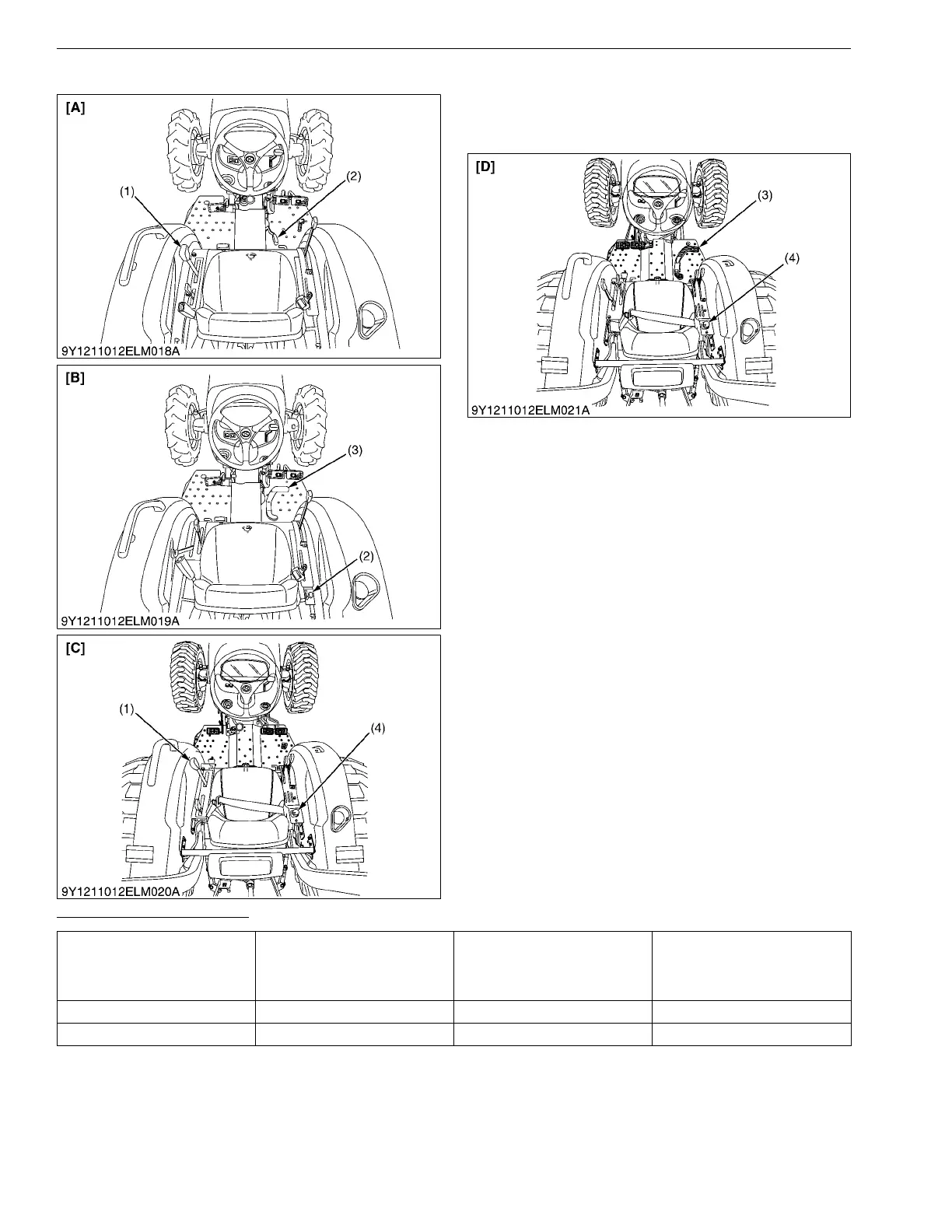

Engine Starting Condition
9Y1211012ELM0033US0
(1) Shuttle Shift Lever
(2) PTO Gear Shift Lever
(3) Speed Control Pedal
(4) PTO Switch
[A] L3301/L3901 Manual
Transmission Model
[B] L3301/L3901 HST Model
[C] L4701 Manual
Transmission Model
[D] L4701 HST Model
Transmission Type
Shuttle Switch
(Neutral: ON)
(F or R position: OFF)
HST Pedal Switch
(Neutral: ON)
(Forward or
Reverse position: OFF)
PTO Switch
(Neutral: ON)
(Engaged: OFF)
Manual Transmission Model ON – ON
HST Model – ON ON
