ELECTRICAL SYSTEM
L3301, L3901, L4701, WSM
9-S26

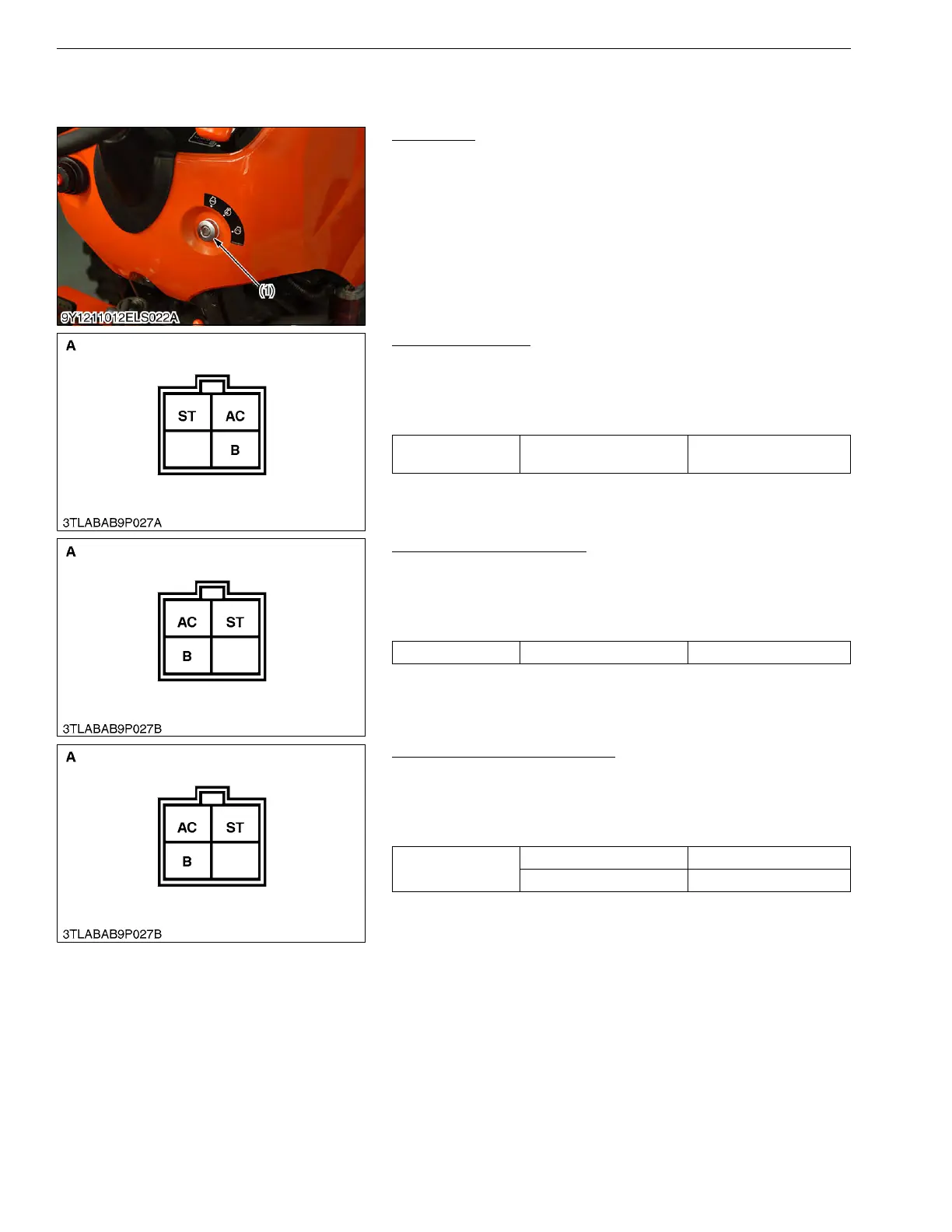

[7] STARTING SYSTEM
(1) Key Switch
Key Switch
1. Remove the steering wheel and rear bonnet.
2. Disconnect connector of key switch (1).
3. Performer following checking.
9Y1211012ELS0027US0
Connector Voltage
1. Measure the voltage across the connector B terminal and
chassis.
2. If the voltage differs from the battery voltage (11 to 14 V),
battery, slow blow fuse or wiring harness is damaged.
9Y1211012ELS0028US0
Key Switch at ON Position
1. Turn the key switch "ON" position.
2. Measure the resistance across the B terminal and the AC
terminal.
3. If 0 ohm is not indicated, renew the key switch.
9Y1211012ELS0029US0
Key Switch at START Position
1. Turn and hold the key switch at the "START" position.
2. Measure the resistances across the B terminal and the AC
terminal, and across the B terminal, and the ST terminal.
3. If 0 ohm is not indicated, renew the key switch
9Y1211012ELS0030US0
(1) Key Switch
Voltage
Connector B terminal –
Chassis
Approx. battery voltage
A: Wire Harness Side Connector 4C
Resistance B terminal – AC terminal 0 Ω
A: Key Switch Side Connector 4C
Resistance
B terminal – AC terminal 0 Ω
B terminal – ST terminal 0 Ω
A: Key Switch Side Connector 4C
KiSC issued 09, 2016 A
