5. DISASSEMBLING AND ASSEMBLING
[1] STARTER

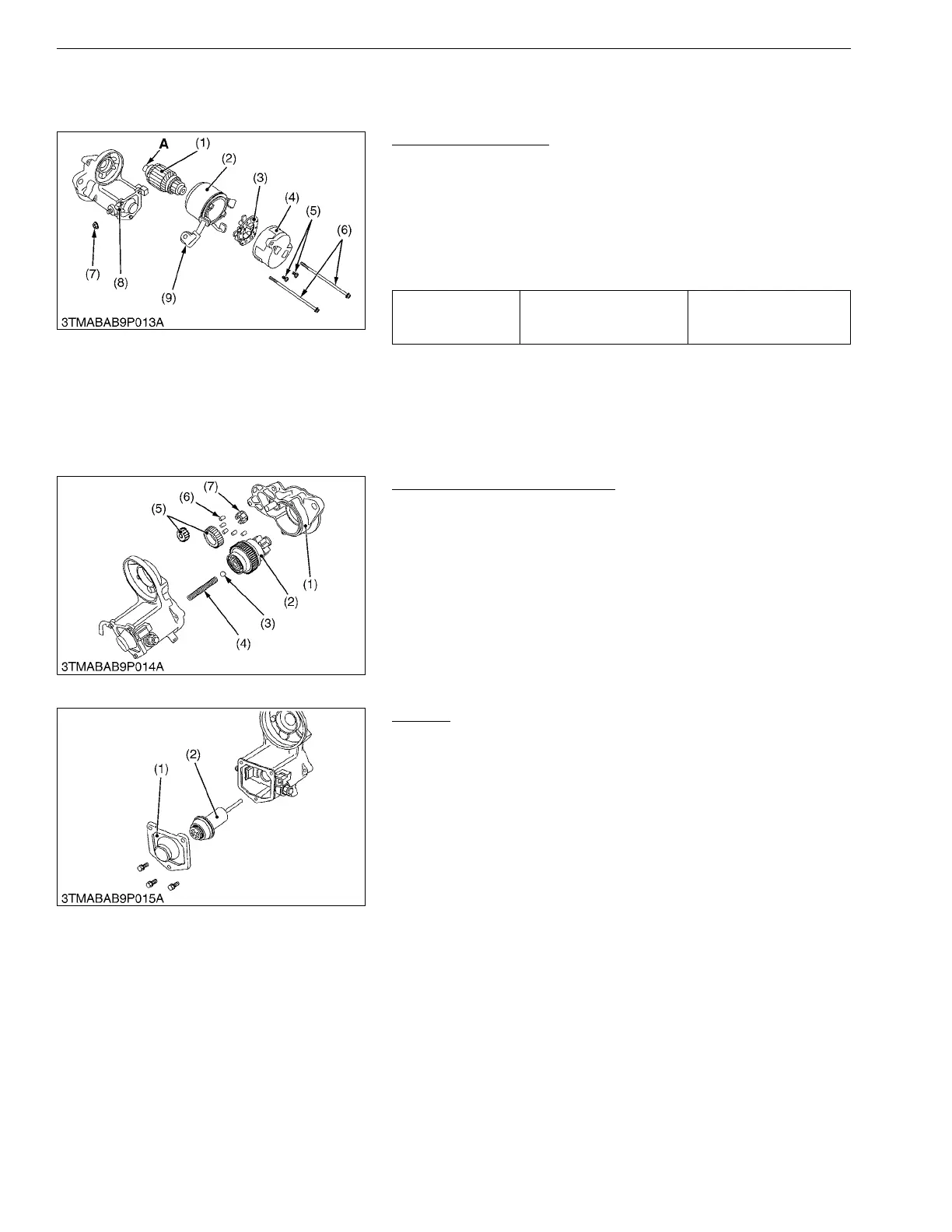

Disassembling Motor
1. Disconnect the connecting lead (9) from the magnet switch (8).
2. Remove the screws (6), and then separate the end frame (4),
yoke (2) and armature (1).
3. Remove the two screws (5).
4. Remove the brush holder (3) from the end frame (4).
(When reassembling)
• Apply grease to the spline teeth "A" of the armature (1).
9Y1211012ELS0095US0
Disassembling Magnet Switch
1. Remove the drive end frame (1) mounting screws.
2. Remove the overrunning clutch (2), ball (3), spring (4), gears
(5), rollers (6) and retainer (7).
(When reassembling)
• Apply grease to the gear teeth of the gears (5) and overrunning
clutch (2), and ball (3).
WSM000001ELS0021US0
Plunger
1. Remove the end cover (1).
2. Remove the plunger (2).
WSM000001ELS0022US0
Tightening torque Nut (7)
5.9 to 11 N·m
0.60 to 1.2 kgf·m
4.4 to 8.6 lbf·ft
(1) Armature
(2) Yoke
(3) Brush Holder
(4) End Frame
(5) Screw
(6) Screw
(7) Nut
(8) Magnet Switch
(9) Connecting Lead
A: Spline Teeth
(1) Drive End Frame
(2) Overrunning Clutch
(3) Ball
(4) Spring
(5) Gear
(6) Roller
(7) Retainer
(1) End Cover (2) Plunger
