Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-20

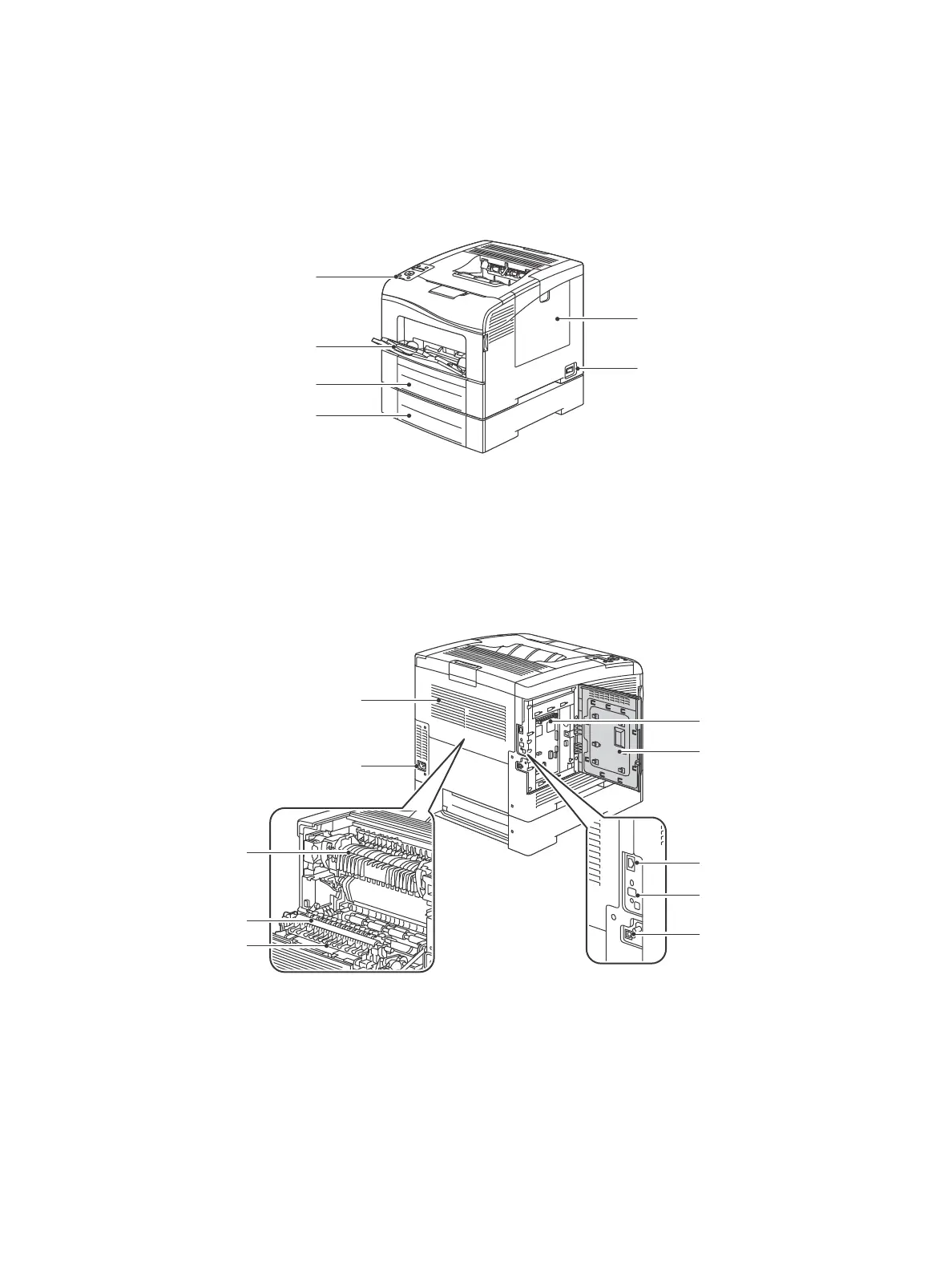

Parts of the Printer
Phaser 6600 Front View
Phaser 6600 Rear View
1. Tray 2 (Optional) 4. Control Panel
2. Tray 1 5. Right Side Door
3. Bypas Tray 6. Power Switch
1. Duplex Unit 6. IP Board
2. Transfer Roller 7. Left Side Door
3. Fuser 8. Ethernet Connection
4. Power Connector 9. Wireless Network Adapter Port
5. Rear Cover 10. USB Port
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
10

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
