Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-40
Left Transfer Belt Guide Assembly
PL6.1.6
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.

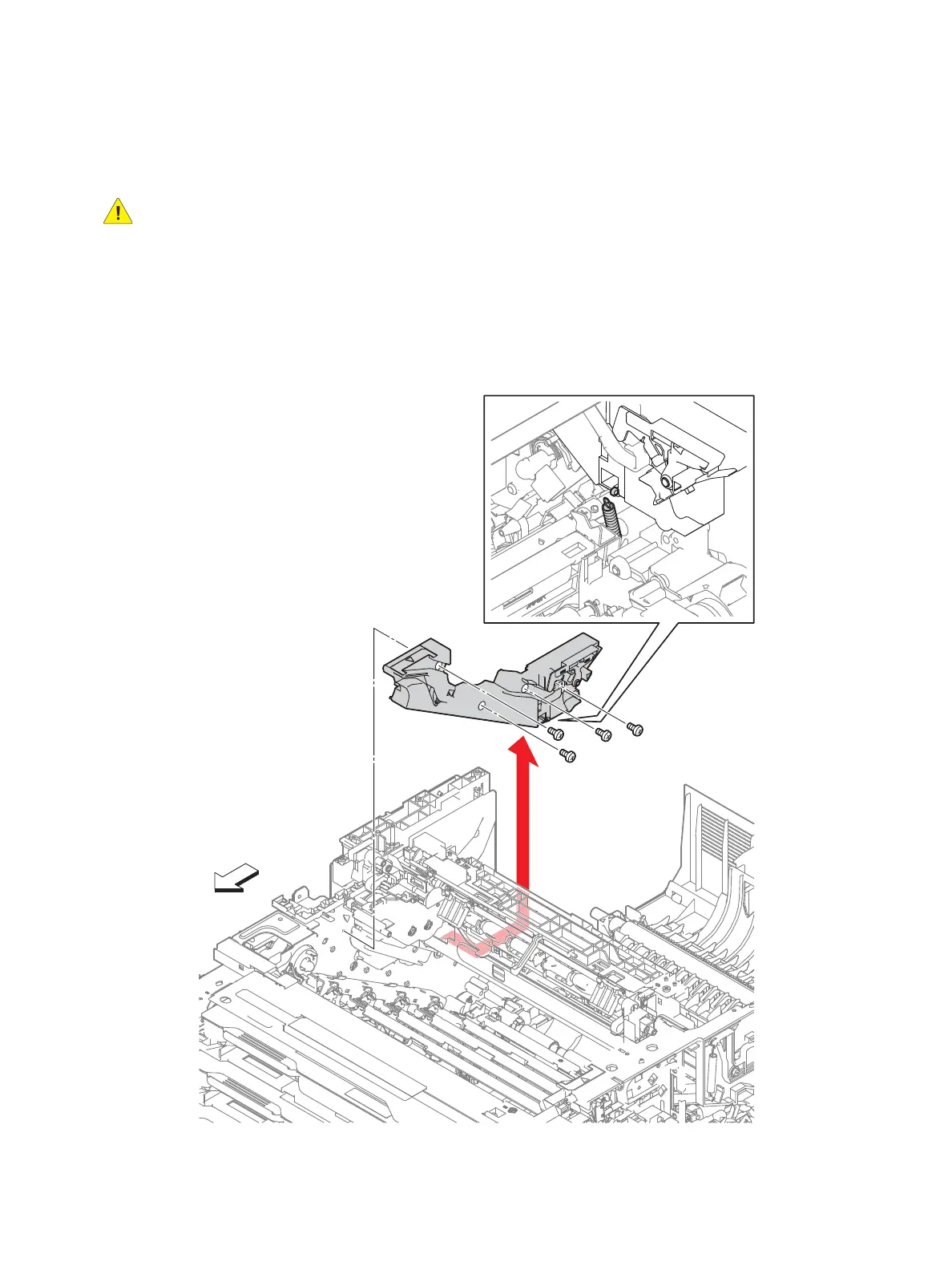

1. Remove the Transfer Belt Assembly. (page 4-38)
2. Remove the Imaging Units Y, M, C, K. (page 4-48)
3. Remove the Top Cover Assembly. (SFP page 4-115; MFP page 4-118)
4. Release the CTD Spring (PL6.1.13) from the Left Transfer Belt Guide Assembly (PL6.1.6).
5. Remove the four screws (silver, 6mm) that attach the Left Transfer Belt Guide Assembly to the
printer and remove the guide Assembly.
s6600-071
Front
