Xerox Phaser 6600 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-42

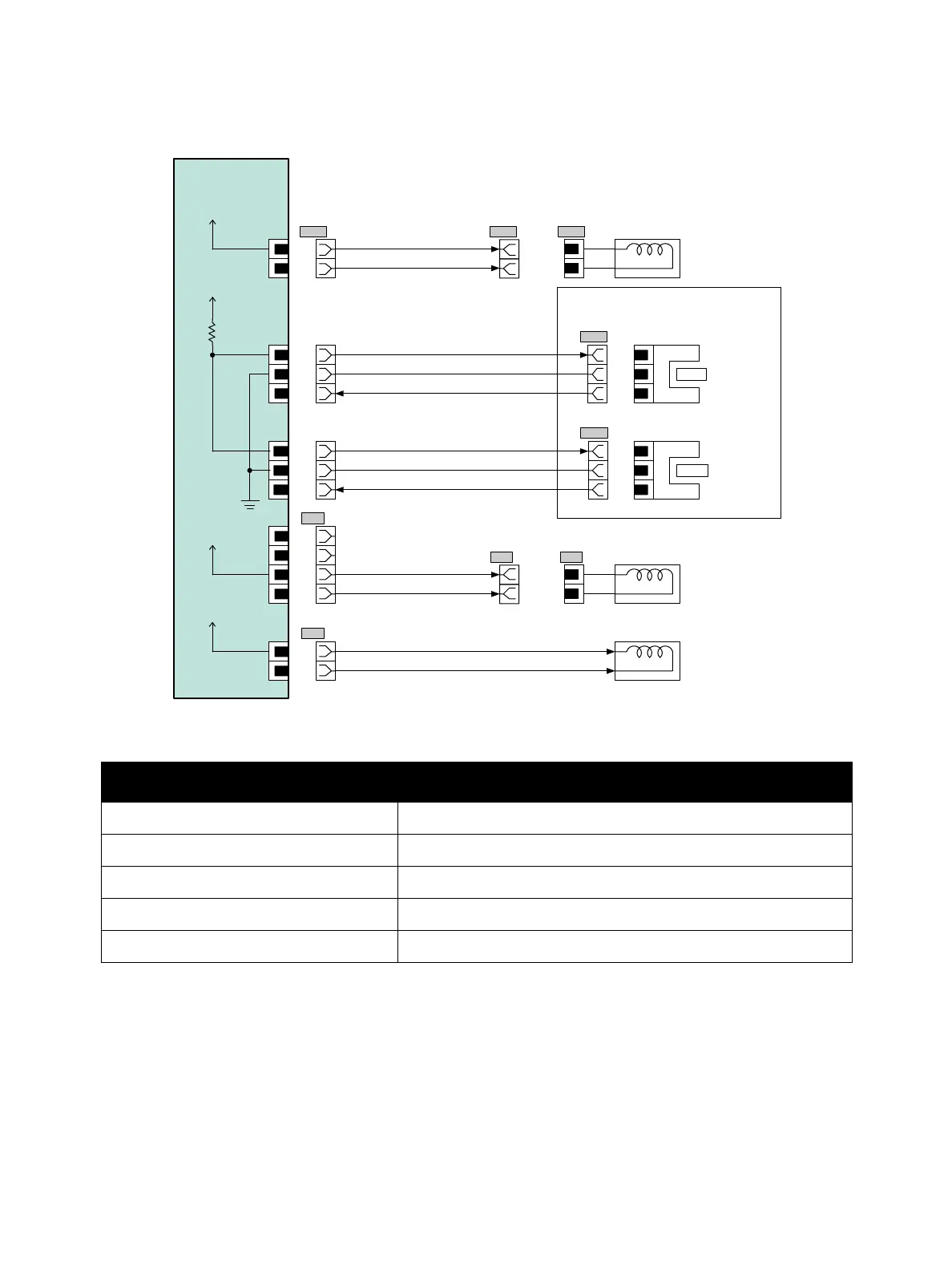

Paper Transport
Signal line name Description
REGI CL ON ON/OFF signal for the Regi Clutch
TRAY PAPER SENSED SIGNAL Media detected in the tray by the No Paper Sensor
REGI PAPER SENSED SIGNAL Media detected in the Pre Registration section by the Regi Sensor
FEED CL ON ON/OFF signal for the Feed Clutch
DUP CL ON ON/OFF signal for the Duplex Clutch
MCU Board
PL18.1.13
3
4
+5VDC
SG
5
P/J22
1
TRAY PAPER SENSED SIGNAL
I/L +24VDC
2
DUP CL ON
P/J233
3
2
1
No Paper
Sensor
I/L +24VDC
+5VDC
6
7
+5VDC
SG
8
REGI PAPER SENSED SIGNAL
P/J232
3
2
1
Regi
Sensor
Feed
Clutch
PL15.2.6
3
4
I/L +24VDC
FEED CL ON
I/L +24VDC
J392
2
P392
1
21
Regi
Clutch
PL15.1.8
P/J23
1
2
I/L +24VDC
REGI CL ON
I/L +24VDC
J234
2
P234
1
21
Registration Chute Assembly
PL15.2.1
P/J39
1
2
Duplex
Clutch
PL15.2.5
Regi Harness Assembly
PL15.2.8
Regi Harness Assembly
PL15.2.8
Regi Harness Assembly
PL15.2.8
s6600-227

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
