Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-44
Paper Transport
The Regi Clutch (PL15.1.8) transfers the drive of the Paper Transport Motor to the Regi Roller.
The Regi Chute Assembly (PL15.2.1) mainly consists of the following components.
• No Paper Sensor — By change of the actuator, detects presence or absence of paper in the paper
cassette.
• Regi Sensor — Detects that a lead edge of a sheet is reached to the registration section.

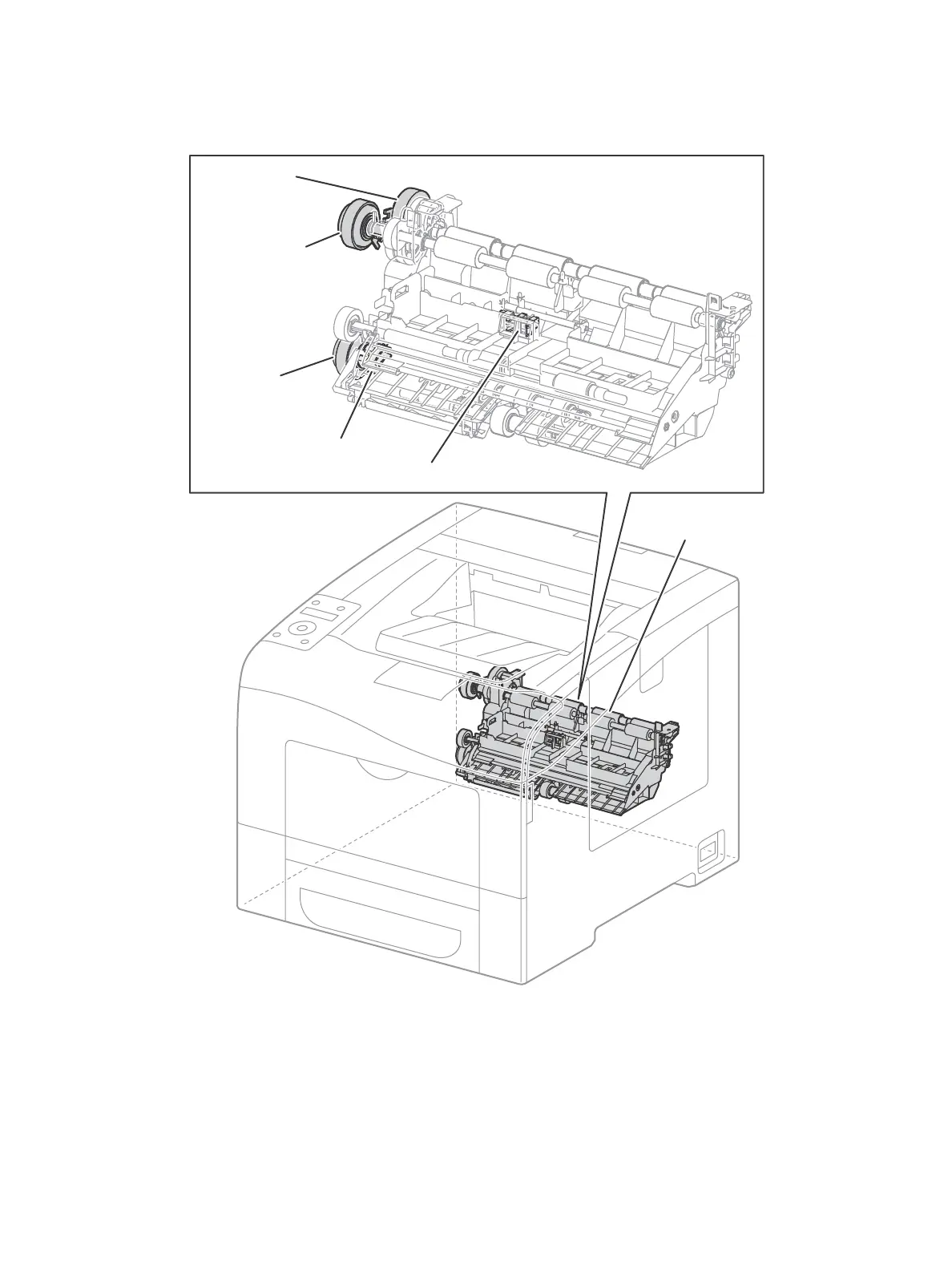

s6600-258
Registration Chute
Assembly
Feed Clutch
No Paper Sensor
Registration Sensor
Duplex Clutch
Registration Clutch
