Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-76
Bypass Tray Pinch Roller
(PL13.3.9)
1. Remove the Bypass Tray Assembly. (page 4-71)
2. Turn over the Bypass Tray Assembly.
3. Remove the pinch spring from the roller being removed.
4. Remove the Bypass Tray Pinch Roller (PL13.3.9).

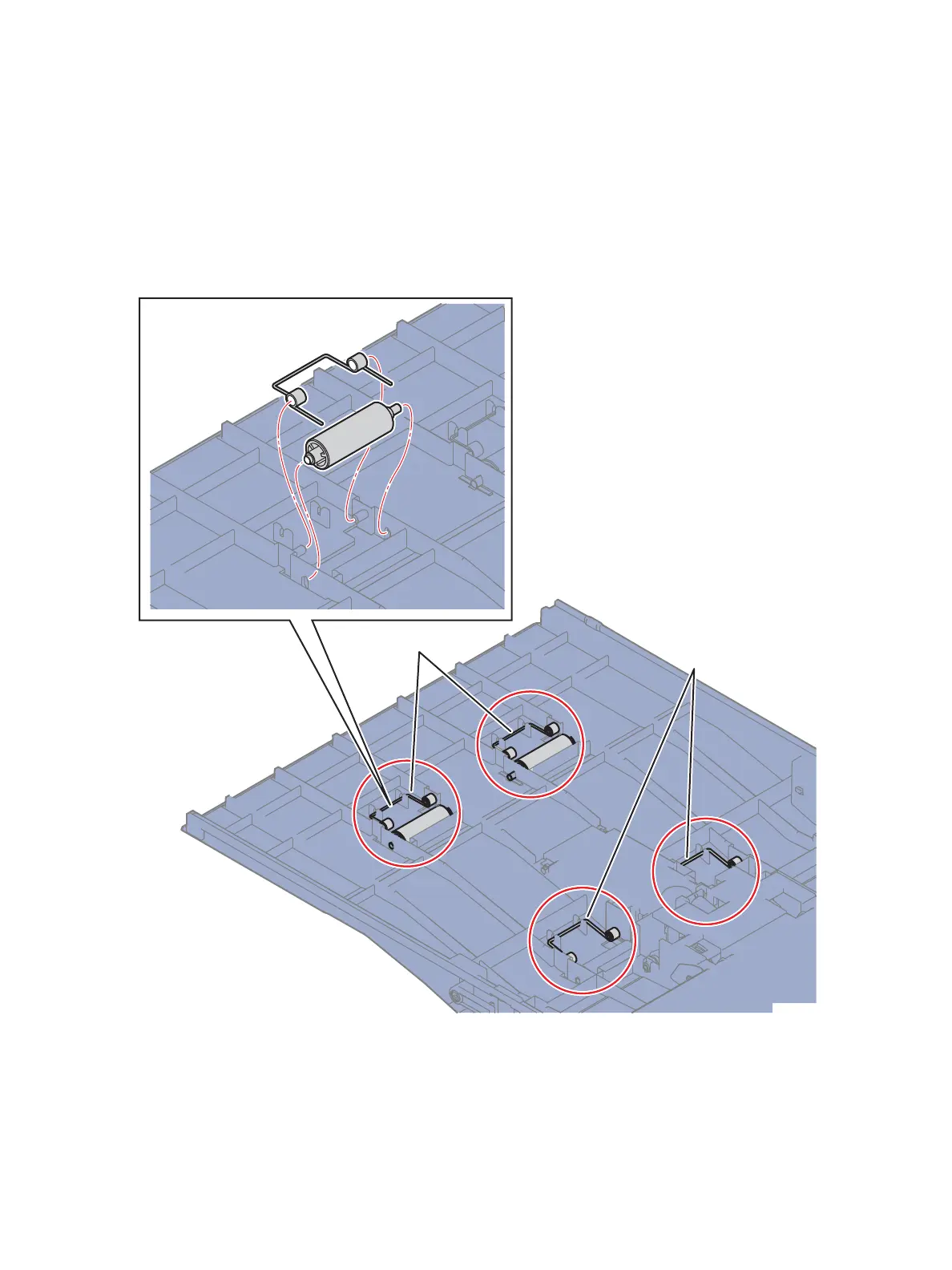

Replacement Note: The TA1 and TA2 Pinch Springs are not the same. Carefully note the difference
in the springs when removing, and use caution not to confuse the springs when reinstalling.
s6600-180
TA2 Pinch Springs
TA1 Pinch Springs

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
