Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-129
Rear Door Assembly
PL19.1.95
1. Open the Rear Door Assembly .
2. Remove the Transfer Roller. (page 4-79)
CAUTION: To prevent the door from falling off as you remove the screws, support the door from
underneath.

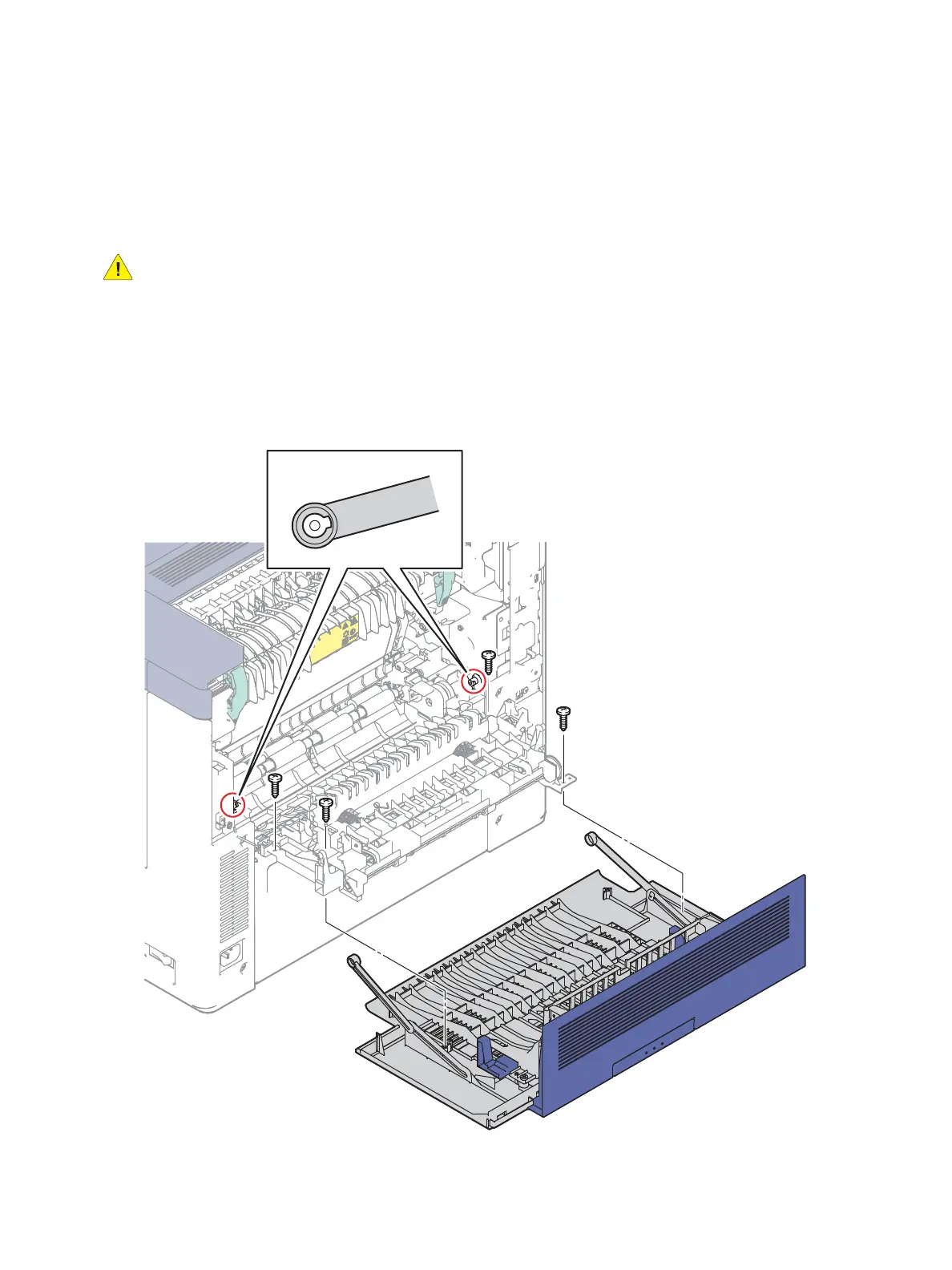

3. Remove the four screws (silver, tapping, 8mm) that attach the Rear Door Assembly to the printer
and remove the cover.
Note: The removal procedure for Rear Cover Link is the same on both the right and left sides.
4. Remove the Rear Cover Links (PL19.1.14) by raising the Rear Cover slightly so that the hole on each
Rear Cover Link can be released from the boss holding it to the printer.
s6600-198

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
