Retard Holder Assembly
(PL13.3.14)
1. Remove the Bypass Tray Assembly. (page 4-71)
2. Remove the Bypass Tray Retard Spring (PL13.3.13) through the access hole on the underside of
the tray.
3. Release the ends of the Bypass Tray Retard Plate Assembly from the bosses, and move the plate as
far forward as possible.
4. Slide the Retard Holder Assembly (PL13.3.14) to the left and remove it upward by releasing the
right shaft first.

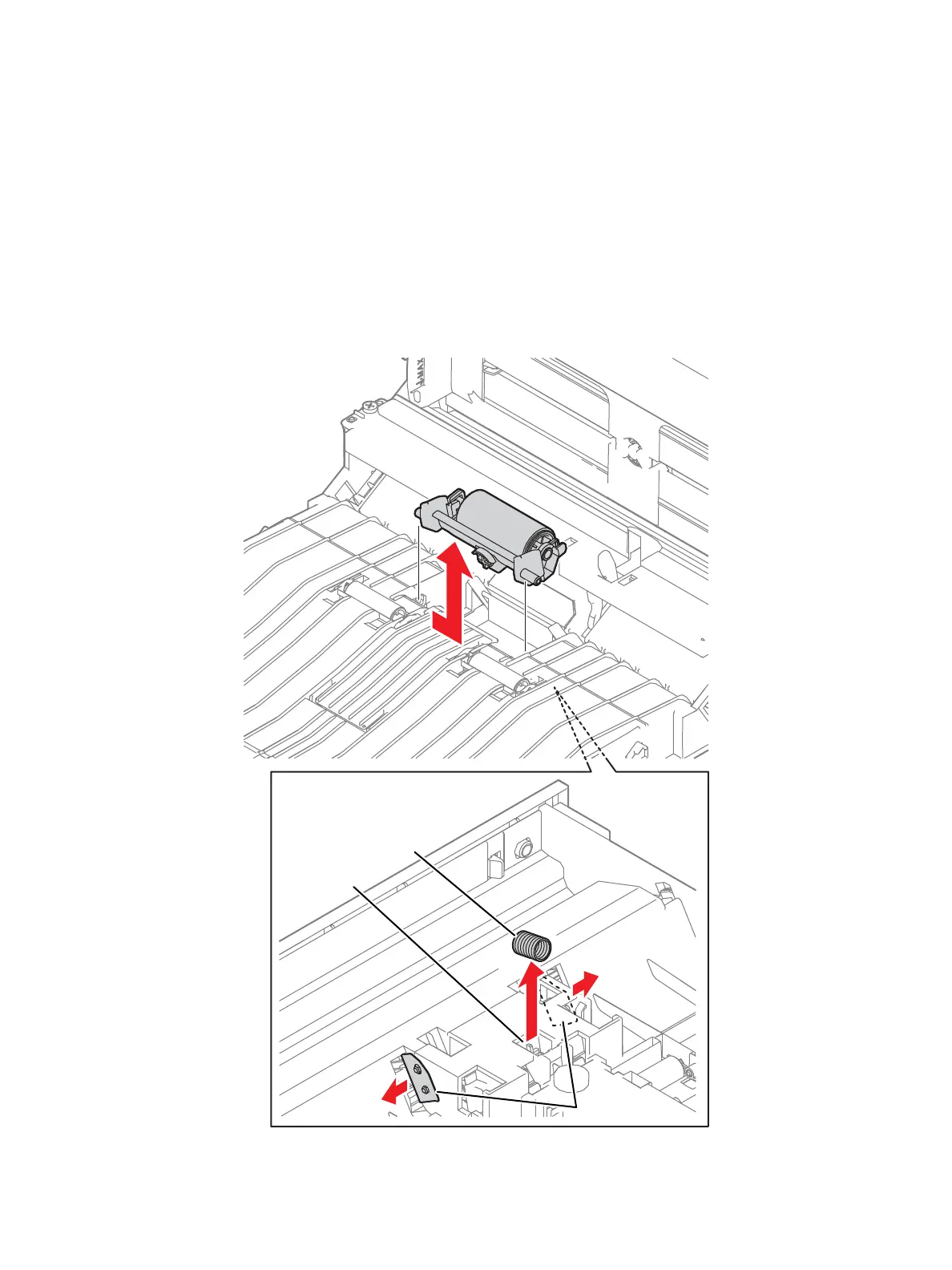

s6600-179
Underside of Bypass Tray
Retard Spring
Access Hole
Retard Plate Ends
