Xerox Phaser 6600 Service Manual

General Information
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
1-45
The Feed Clutch (PL15.2.6) transfers the drive of the Paper Transport Motor to the Feed Roller.
The Duplex Clutch (PL15.2.5) transfers the drive of the Paper Transport Motor to the Duplex Roller
inside the Duplex Assembly.
Bypass Tray
The Bypass Tray Sensor (PL13.2.4) detects the installation of the Bypass Tray.
The Bypass Tray No Paper Sensor (PL13.2.4) by change of the actuator, detects presence or absence of
paper in the Bypass Tray.
The Bypass Tray Feed Solenoid (PL13.2.9) transfers the drive of the Paper Transport Motor to the
Bypass Tray Feed Roller.

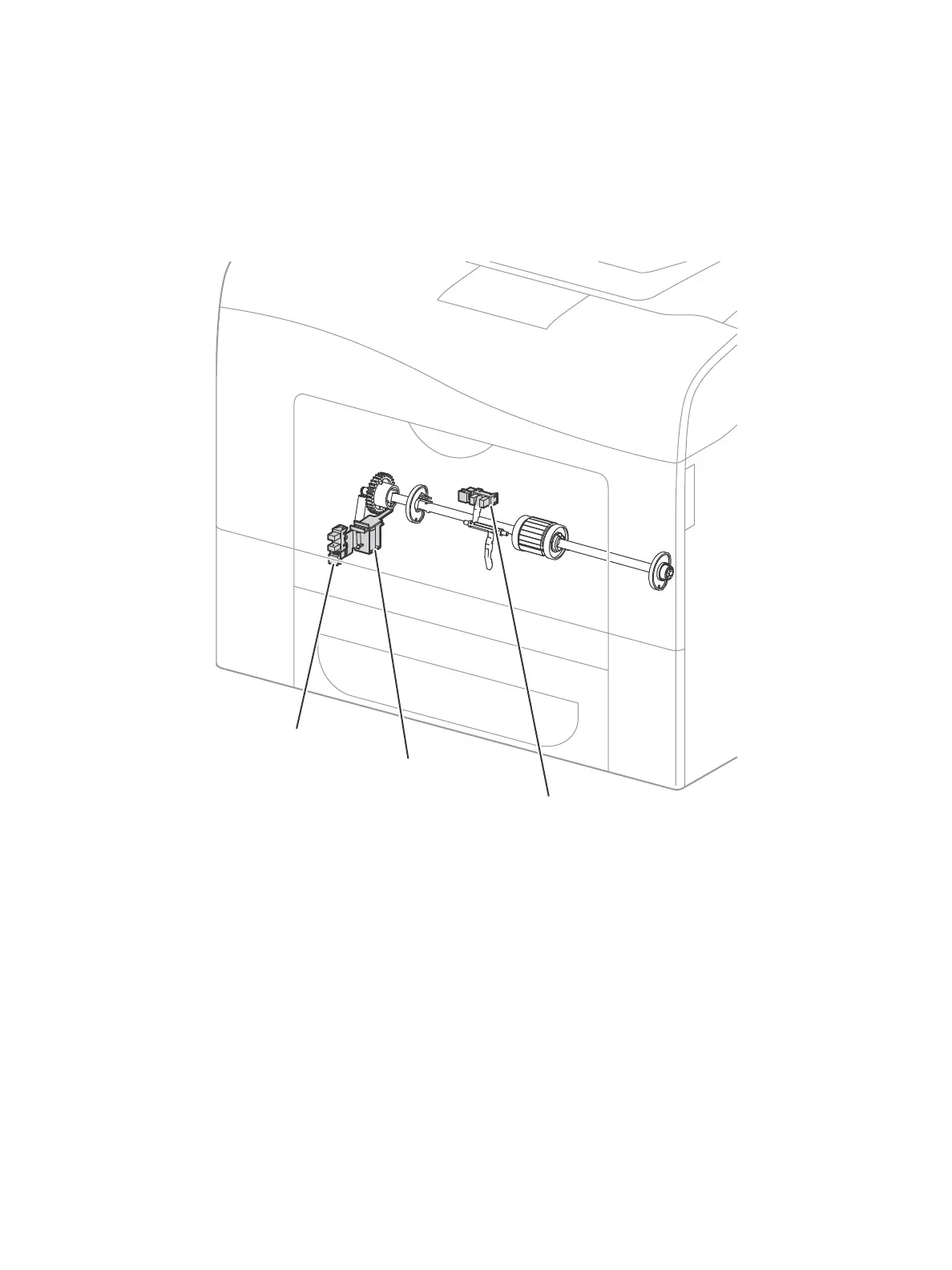

s6600-257
Bypass Tray Sensor
Bypass Tray Feed Solenoid
Bypass Tray No Paper Sensor

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
