General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-26
Media Path
This section describes the paper feed path of the entire device and the paper feed process in the each
feed section.

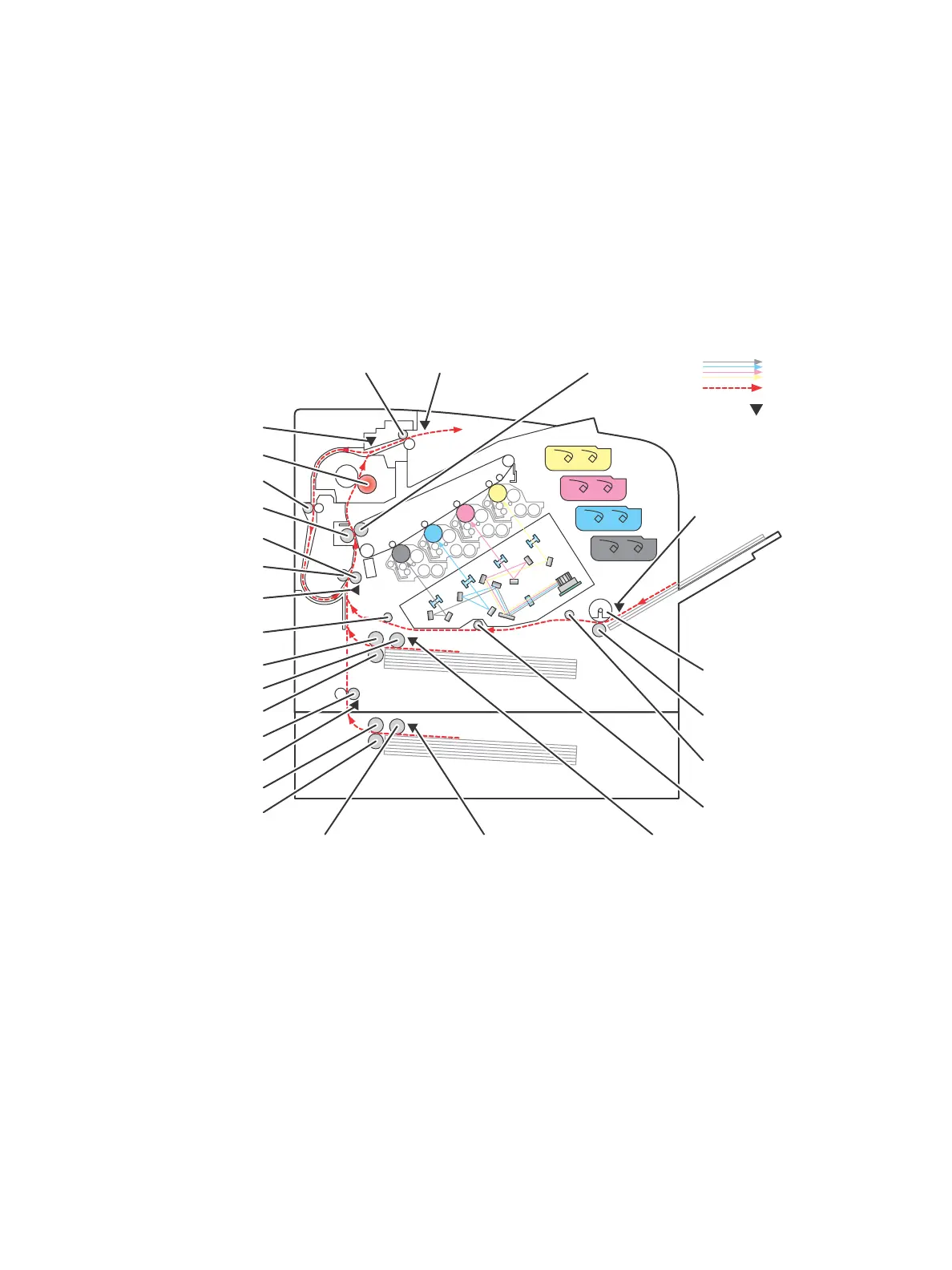

Paper Path Layout
The following shows the paper feed layout when the duplex print unit and the tray module are
installed, and the components relevant to paper feed.
Feeding from Paper Cassette
The paper loaded in the paper cassette is fed between the Feed Roller and the Retard Roller by the
Nudger Roller, and fed farther to the registration section by the rotation of the Feed Roller and the
Retard Roller.
The Nudger Roller and the Feed Roller are rotated by the torque of the Paper Transport Motor via the
Feed Roller Clutch.
The Retard Roller, pressed from underneath by the spring pressure and forced to the Feed Roller, plays a
role of fanning a sheet by the rotation friction.
s6600-242
: Laser Beam
: Paper Feed
: Paper Sensor
K
C
M
Y
Transfer Belt Drive Roller
Rubber Registration Roller
Metal Registration Roller
Registration Sensor
Duplex Roller
Transfer Roller 2
Bypass Tray
No Paper Sensor
Retard Holder Assembly
Turn Roller Assembly
TA3 Roller Assembly
TA1 Roller Assembly
TA2 Roller Assembly
Feed Roller Assembly
Feed Roller Assembly
Nudger Roller Assembly
Retard Roller Assembly
Feed Roller Assembly
Nudger Roller Assembly
Retard Roller Assembly
Paper Jam Sensor
Option 550 No Paper Sensor 550 No Paper Sensor
Exit Roller Stack Full Sensor
To Next Page
