Xerox Phaser 6600 Service Manual

General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-46
Exit
The Exit Sensor (PL17.1.11) detects when media is present in the fuser.
The Full Stack Sensor (PL17.1.11) detects when the output tray is full.
The Exit Drive Assembly (PL17.1.21) consists of the following components.
• Exit Clutch 1 — Transfers the drive of the Main Motor to the Exit Roller. The Exit Roller rotates in
the paper exit direction.
• Exit Clutch 2 — Transfers the drive of the Main Motor to the Exit Roller. The Exit Roller rotates in
the duplex feed direction.

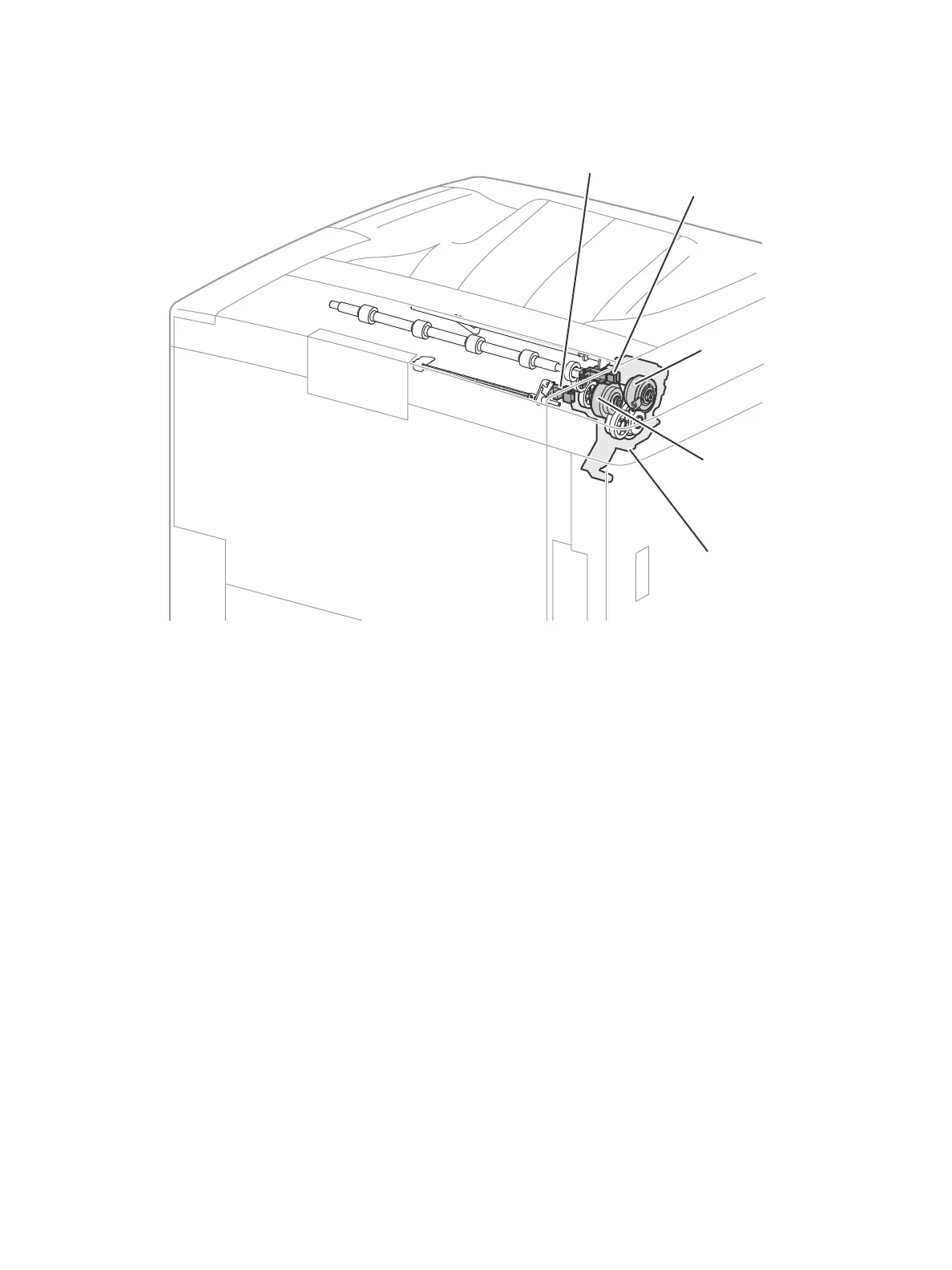

s6600-256
Exit Sensor
Full Stack Sensor
Exit Clutch 1
Exit Clutch 2
Exit Drive Assembly

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
