General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-48
The Developer HVPS (PL18.1.14) provides high voltage to the Magnet Roller and BCR found in each
Imaging Unit.
The EEPROM Board (PL18.1.43) is non-volatile memory that stores machine information.
The Wireless Kit (PL18.1.27) is the adapter that controls the interface to the Wireless Network.
Option Feeder
550 Option Feeder Board (PL10.1.10) controls each component in the optional tray.
The Turn Roller Clutch (PL10.1.8) transfers the drive of the 550 Option Drive Assembly to the Turn
Roller.
550 Size Switch Assembly (PL10.1.11) detects paper size, and presence or absence of paper in the 550
paper cassette.
550 Option Drive Assembly (PL10.1.9) consists of a DC motor that drives each Roller of the paper feed
section in the optional tray.
550 Pinch Chute Assembly (PL10.2.1)
The 550 Pinch Chute Assembly mainly consists of the following components.
• No Paper Sensor
By changes of the actuator, detects presence or absence in the paper cassette.
•Regi Sensor
Detects that a lead edge of a sheet has reached the registration section.
• Feed Clutch (PL10.2.2)
Transfers the drive of the 550 Option Drive Assembly to the Feed Roller.

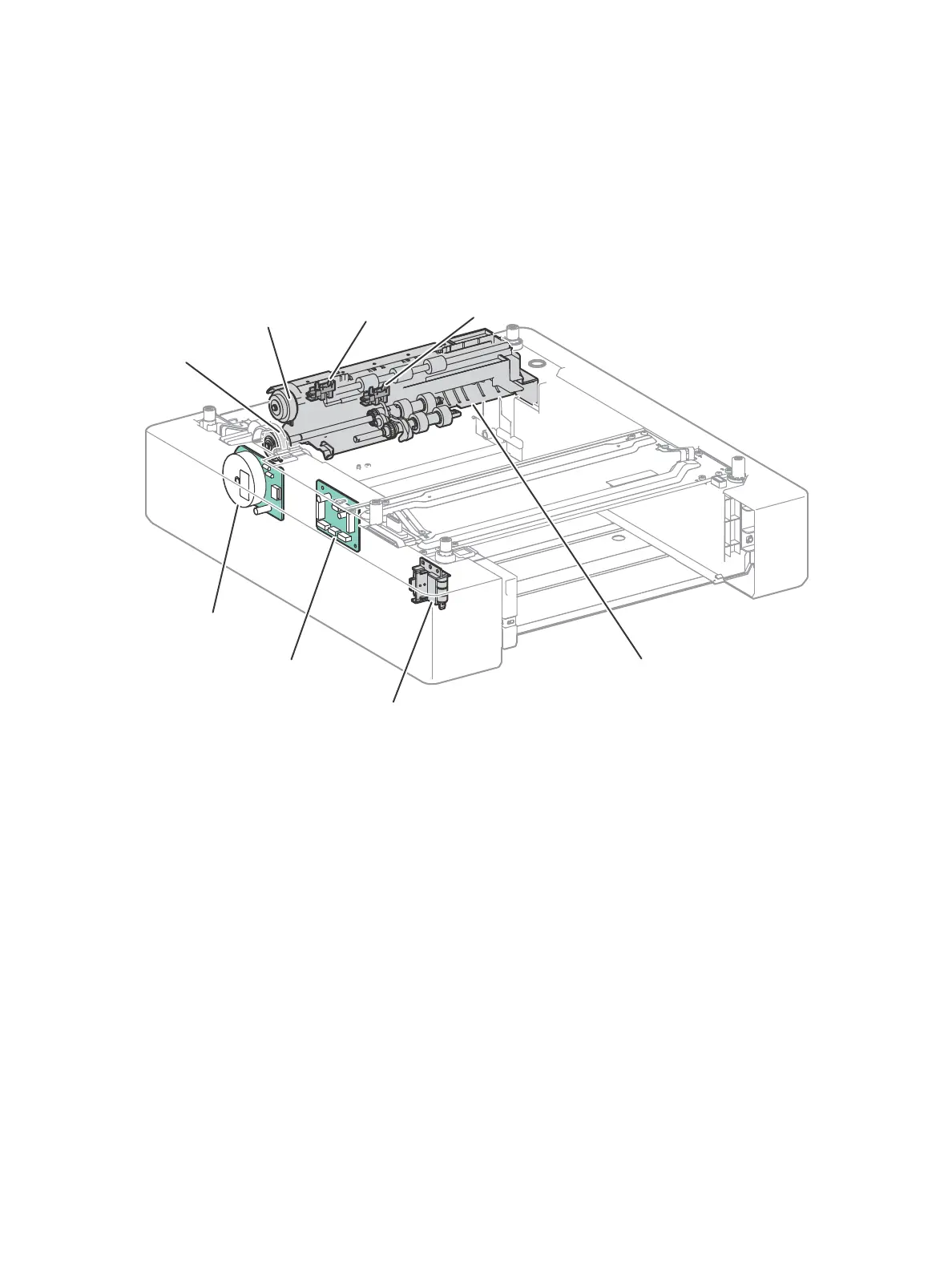

s6600-254
H Feed Board
Turn Roller Clutch
550 Size Switch Assembly
550 Option Drive Assembly
550 Pinch Chute Assembly
No Paper Sensor
Registration Sensor
Feed Clutch
