Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-85
Lower Regi Chute / Opt 550 Regi Chute
PL15.1.4 / PL15.1.5
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the 550 Cassette Assembly from the printer.
2. Remove the Transfer Roller. (page 4-79)
3. Remove the Duplex Assembly. (page 4-77)
4. Remove the Transfer HVPS Board. (page 4-108)

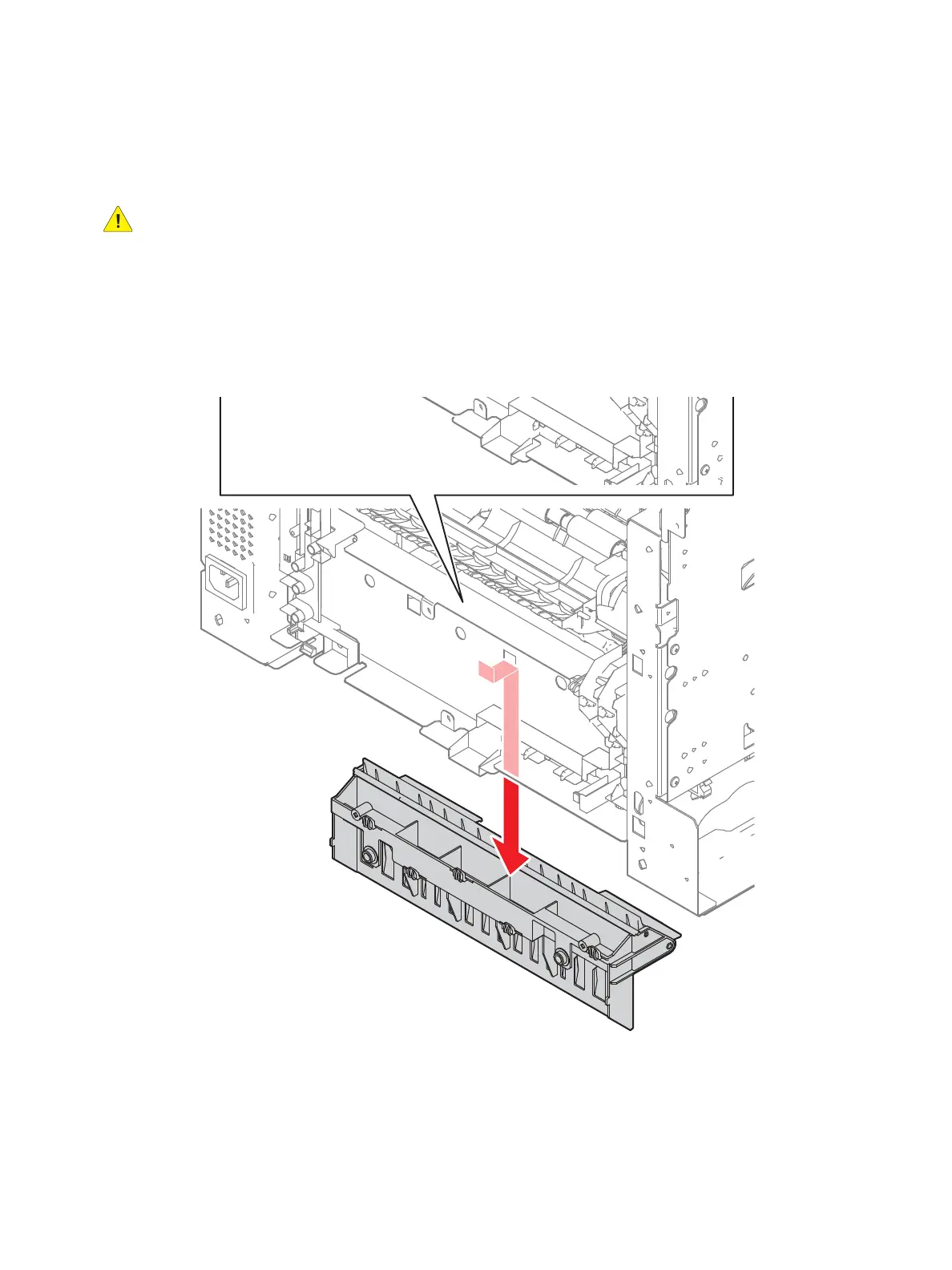

5. Remove the Opt 550 Regi Chute by releasing the two bosses and by sliding the Opt 550 Regi
Chute downward to release the hook.
s6600-141
