Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-54
550 Option Left-Side Cover
PL10.1.2
Note: When installing or removing this part, you do not need to separate the printer from the
Optional 550-Sheet Feeder.

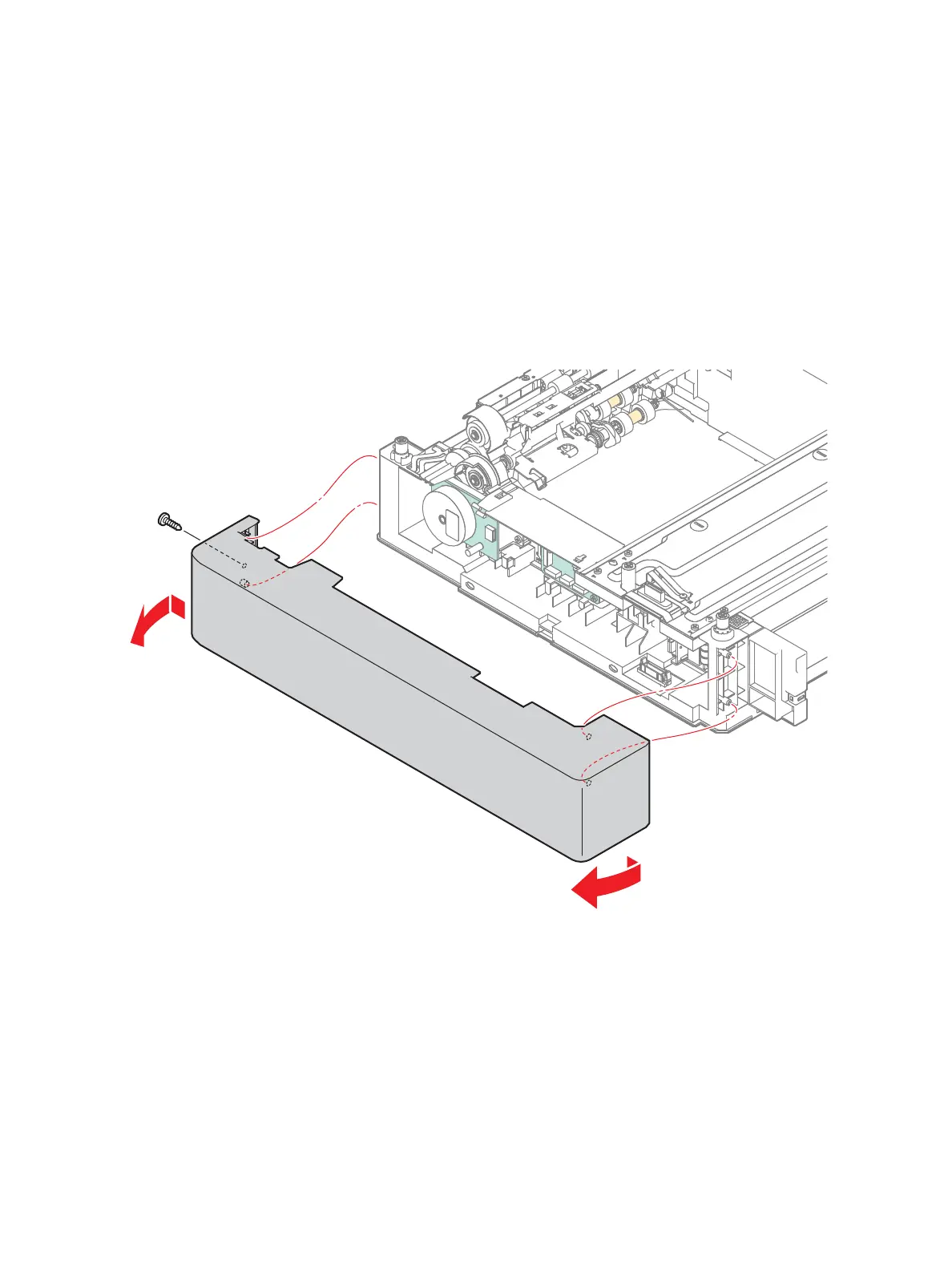

1. Remove the 550 Option Cassette Assembly from the Optional 550-Sheet Feeder.
2. Remove the screw (silver, tapping, 8mm) that attaches the 550 Option Left-Side Cover (PL10.1.2)
to the feeder.
3. Remove the 550 Option Left-Side Cover by releasing the two bosses on its rear and then the two
bosses on its front while flexing its rear end outward.
s6600-171

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
