Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-57
550 Option Drive Assembly
PL10.1.9
Note: When installing or removing this part, you do not need to separate the printer from the
Optional 550-Sheet Feeder.
1. Remove the 550 Option Cassette Assembly from the Optional 550-Sheet Feeder.
2. Remove the 550 Option Left-Side Cover. (page 4-54)
3. Unplug connector P/J4221 from the 550 Option Drive Assembly (PL10.1.9).

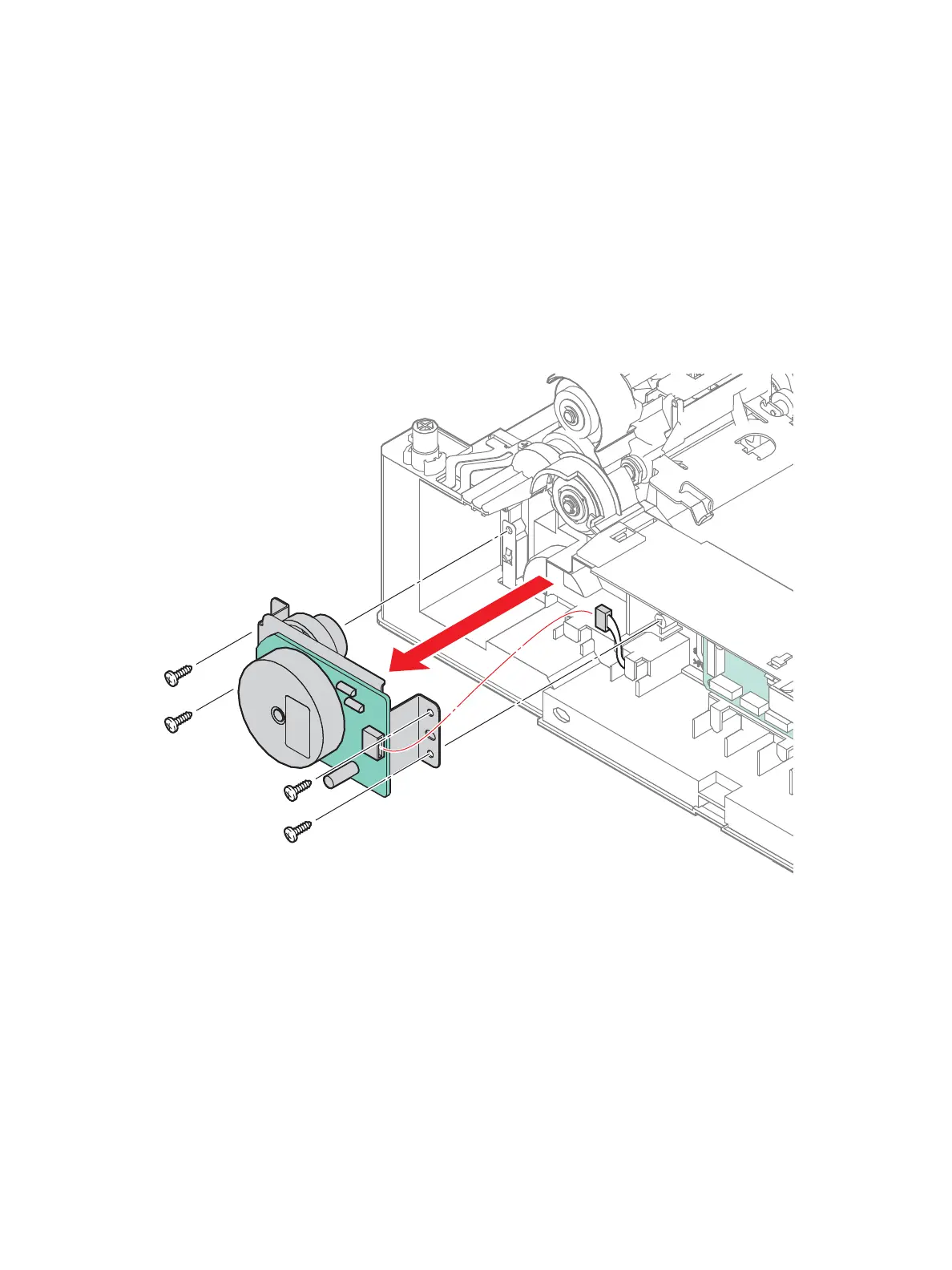

4. Remove the four screws (silver, tapping, 8mm) that attach the 550 Option Drive Assembly to the
feeder and remove the drive assembly.
s6600-174
