General Information
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
1-50
Scanner
The Scanner Assembly is made up of two separate assemblies, the IIT Assembly, and the DADF
Assembly.
IIT Assembly (PL51.1.3)
• Carriage Motor
The stepping motor that drives the Scanner Carriage.
• Scanner Home Position Sensor/CVT Position
The part on the rear side of the Scanner Carriage frame that interrupts the Scanner Home Position
Sensor, thus detecting when the carriage is in the Home or CVT Position.
•CCD PWB
The PWB mounted with the CCD Image Sensor that inputs the image data.

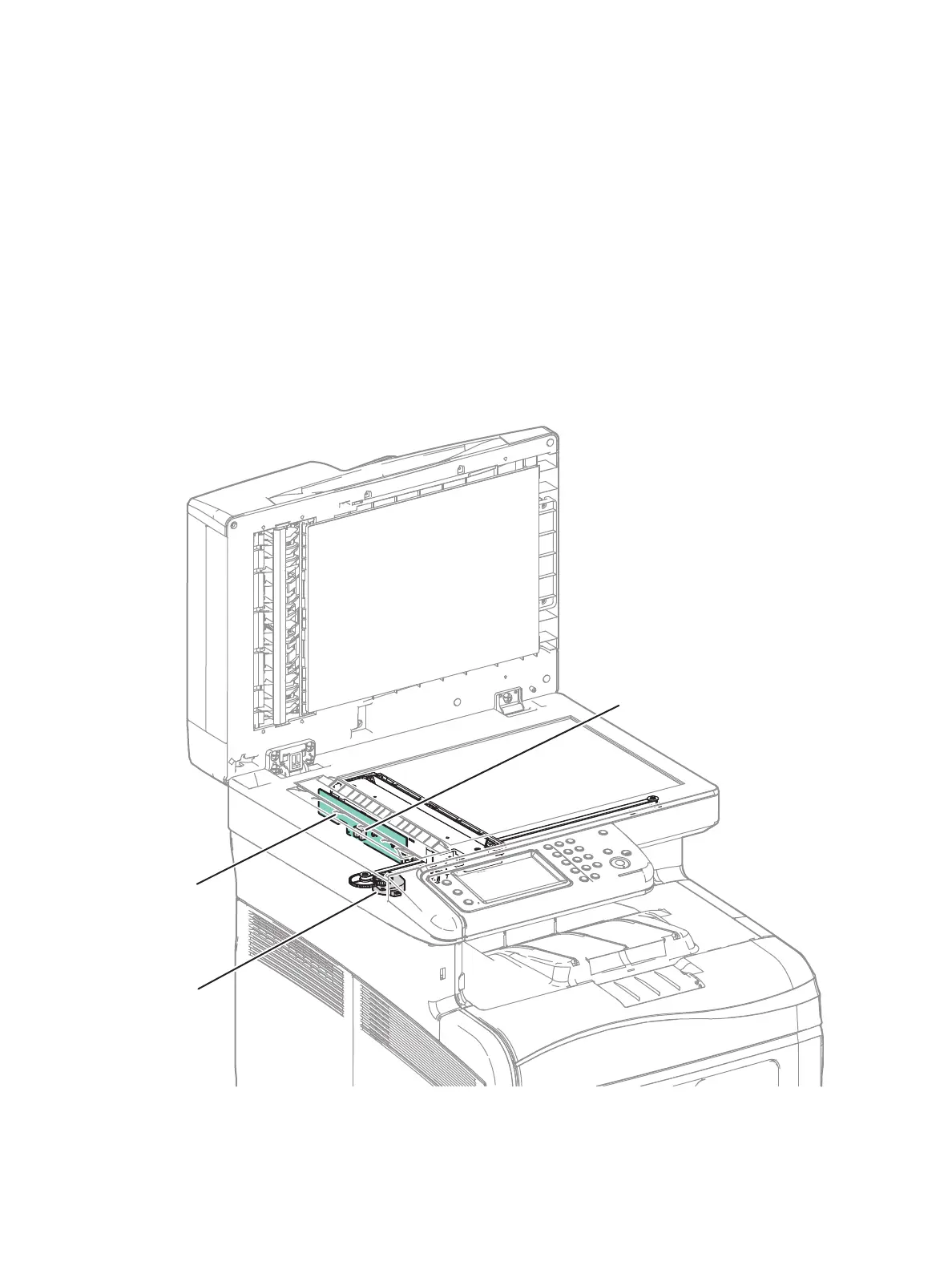

s6600-218
Carriage Motor
Scanner
Home Position Sensor
CCD Board

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
