Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-48
Exit

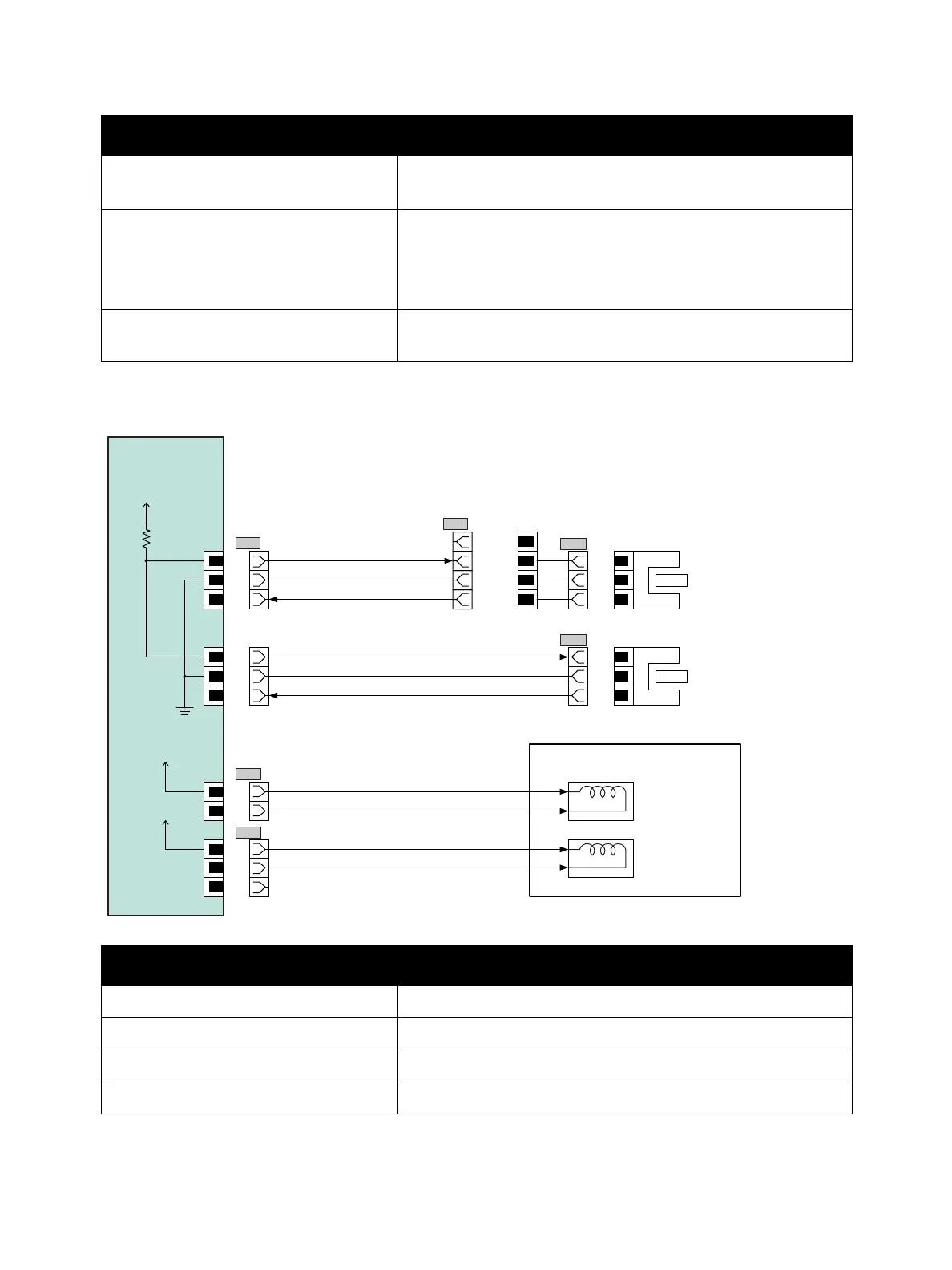

Signal line name Description
CLOCK
DATA
Control signal of the Toner Cartridge Y/M/C/K
CLOCK B
CLOCK /B
CLOCK /A
CLOCK A
Drive control signal of the Toner Dispense Motor (Y,M) / (C,K)
FRONT COVER OPEN SIGNAL FRONT COVER opening/closing detect signal by the Front Cover
Sensor
Signal line name Description
EXIT SENSED SIGNAL Detect signal of paper in the Exit section by the Exit Sensor
PAPER FULL STACK SENSED SIGNAL Paper full detect signal of the output tray by the Full Stack Sensor
EXIT CLUTCH 2 ON ON/OFF signal of the EXIT CLUTCH 2
EXIT CLUTCH 1 ON ON/OFF signal of the EXIT CLUTCH 1
MCU Board
PL18.1.13
4
5
6
P/J38
1
2
I/L +24VDC
Stack Full
Sensor
PL17.1.11
P/J154
3
2
1
+5VDC
SG
PAPER FULL STACK SENSED SIGNAL
Exit Clutch 2
I/L +24VDC
EXIT CLUTCH 2 ON
Exit Sensor
PL17.1.11
P/J15
1
2
3
P/J155
3
2
1
3 2
32
41
SG
EXIT SENSED SIGNAL
+5VDC
J151
4
P151
1
+5VDC
P/J40
1
2
I/L +24VDC
Exit Clutch 1
I/L +24VDC
EXIT CLUTCH 1 ON
Exit Drive Assembly
PL17.1.21
3
Sensor Harness Assembly
PL17.1.23
Exit Sensor Harness Assembly
PL17.1.18
s6600-231
