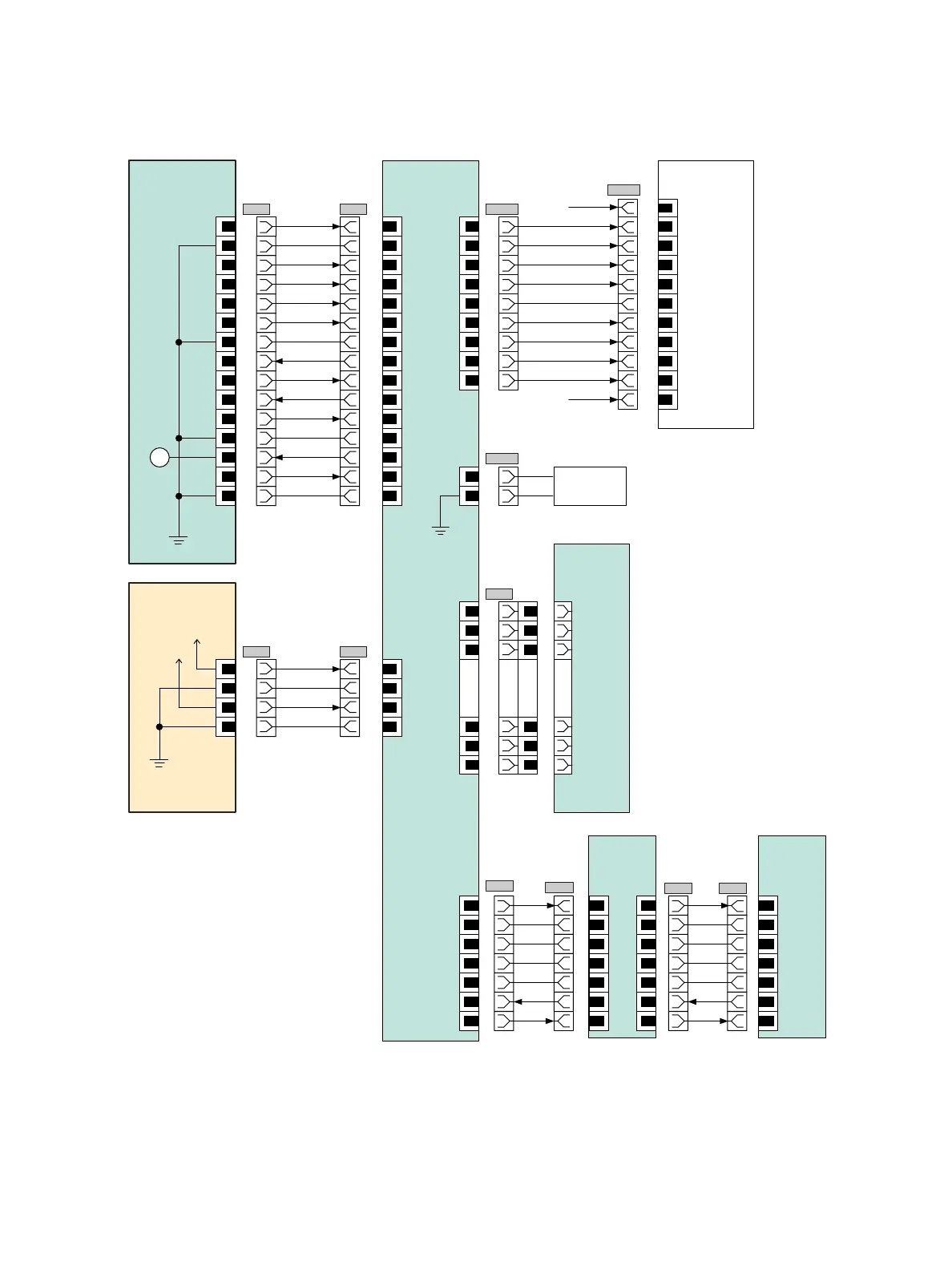

Xerox Phaser 6600 Service Manual

Wiring
Phaser 6600 and WorkCentre 6605 Xerox Internal Use Only
Service Manual
7-40
MFP Controller
MCU Board
PL18.1.13
LVPS
PL18.1.34
P/J10
1
2
3
4
5
6
7
+5VDC
IP Board
PL18.1.22
8
9
10
11
12
13
14
15
P/J101
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
P/J102
1
2
3
4
5
6
7
8
9
P/J40
1
2
P/J902
1
2
P/J401
1
2
SG
SG
SG
SG
P/J112
11
10
9
8
7
6
5
4
Laser Unit
PL2.1.1
3
2
1
SG
LOOP2
LOOP1
DATA Y
xDATA Y
DATA M
xDATA M
DATA C
xDATA C
DATA K
xDATA K
SG
ESS +5VDC
FAX Board
PL18.1.41
To AC
Power
LINE SYNC
PAGE SYNC Y
PAGE SYNC M
PAGE SYNC C
PAGE SYNC K
TEST PRINT
CMD READY
COMMAND
STATUS
RDY PWR ON
IOT PWR STS
3
4
1
2
58 58
59 59
3 3
60 60
Main Harness Assembly
PL18.2.3
Laser Unit Video Harness Assembly
PL2.1.2
Top Harness Assembly
PL18.2.5
3
4
RTN
ESS +24VDC
P/J1302
1
2
PL18.1.40
Speaker
+24VDC
A
s6600-225
P/J810
1
2
3
4
5
6
7
Panel
PL1.1.1
PL19.1.15
P/J820
1
2
3
4
5
6
7
P/J830
1
2
3
DATA-
4
5
6
7
P/J840
1
2
3
4
5
6
7
DATA+
+5VDC
SG
FG
LED
HOT LINE
DATA-
DATA+
+5VDC
SG
FG
LED
HOT LINE
USB Hub
Board
MFP Control
