Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-53
Option Feeder
Optional 550-Sheet Feeder / Joint Screw
PL10.1.1 / PL10.1.17

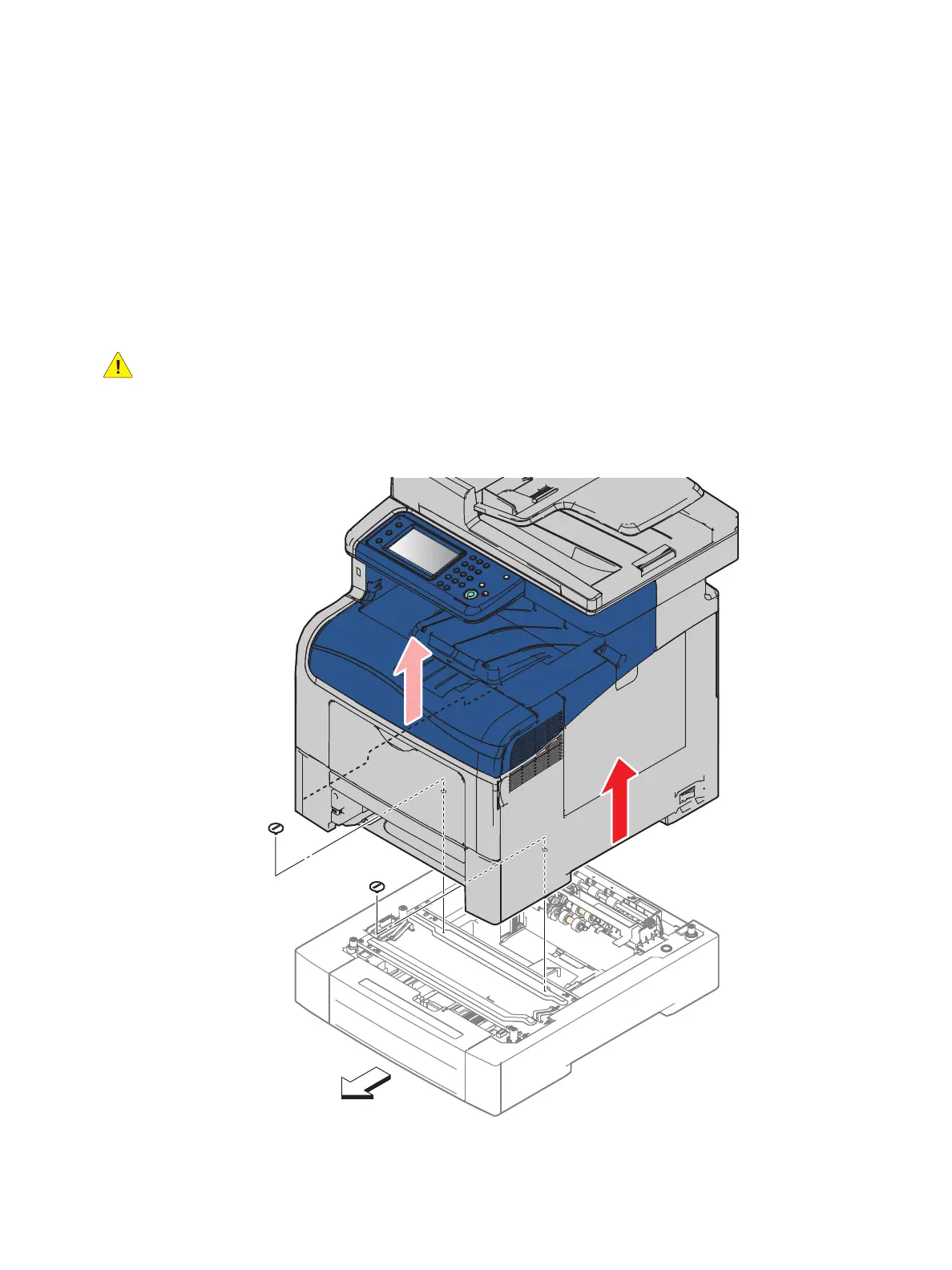

1. Remove the 550-sheet Paper Tray from the printer.
2. Remove the two Joint Screws (PL10.1.17) that attach the Optional 550-Sheet Feeder (PL10.1.1) to
the printer.
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
3. Raise the printer while holding the recessed areas on both sides, and separate it from the Optional
550-Sheet Feeder.
Note: Although the illustration shows the MFP, the procedure details apply equally to the SFP.
s6600-118
Front

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
