Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-104
MFP IP Board
(PL18.1.22)
Note: When replacing the IP Board, be sure to transfer the NVRAM and, if installed, Optional RAM,
Hard Disk or Wireless Kit to the new IP Board.
1. Remove the Front Door Assembly. (page 4-128)
2. Remove the Left Cover Assembly. (page 4-136)
3. Remove the Lower Left Hand Rear Cover. (page 4-124)
4. Remove the Fax Board. (page 4-97)

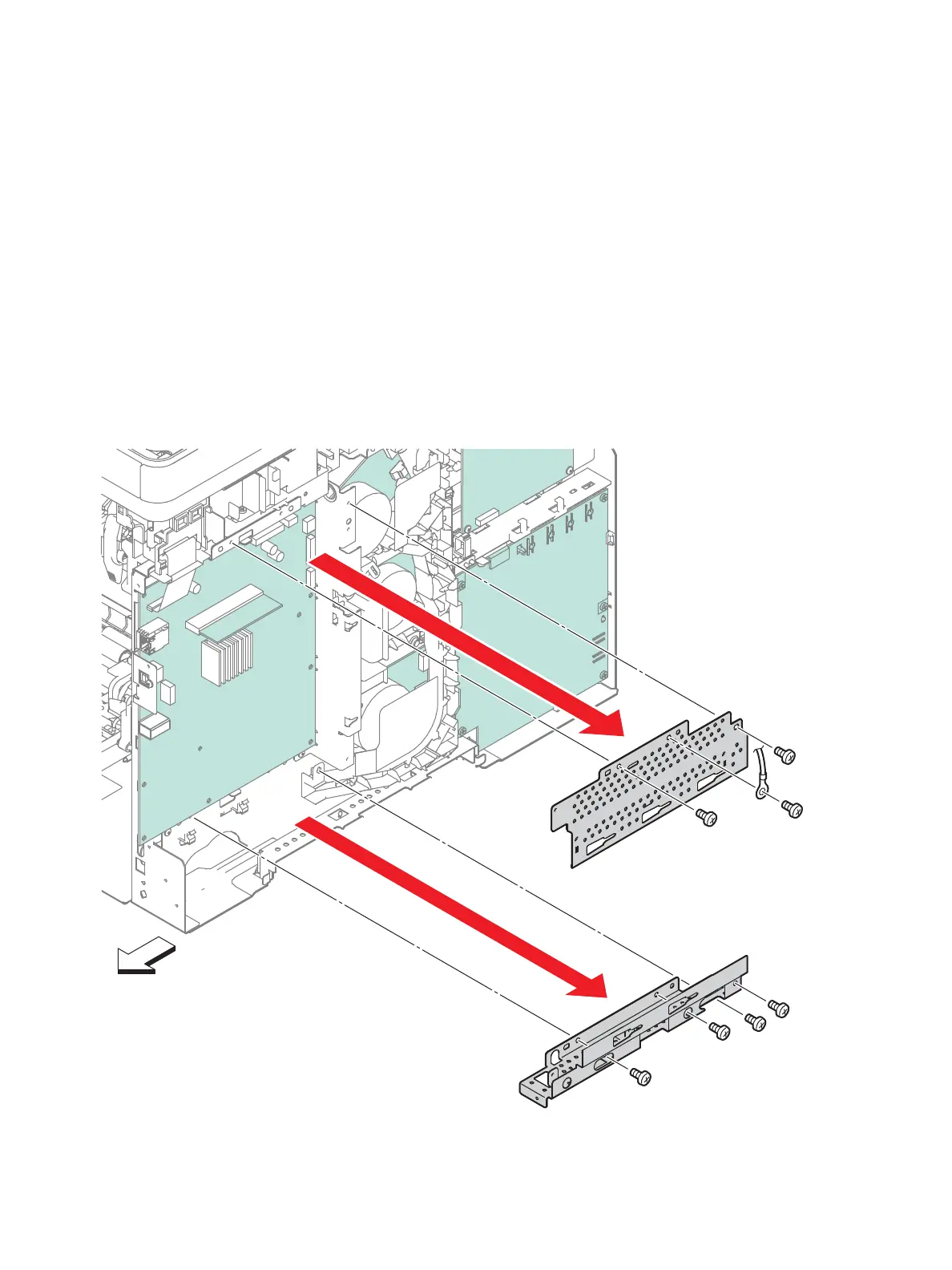

5. Remove the three screws (silver, 6mm) that attach the MFP Top IP Board Plate (PL18.1.19) and
remove the plate by removing the grounding wire.
6. Remove the four screws (silver, 6mm) that attach the IP Board Bottom Plate (PL18.1.20) to the
printer and remove the plate.
s6600-116
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
