Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-67

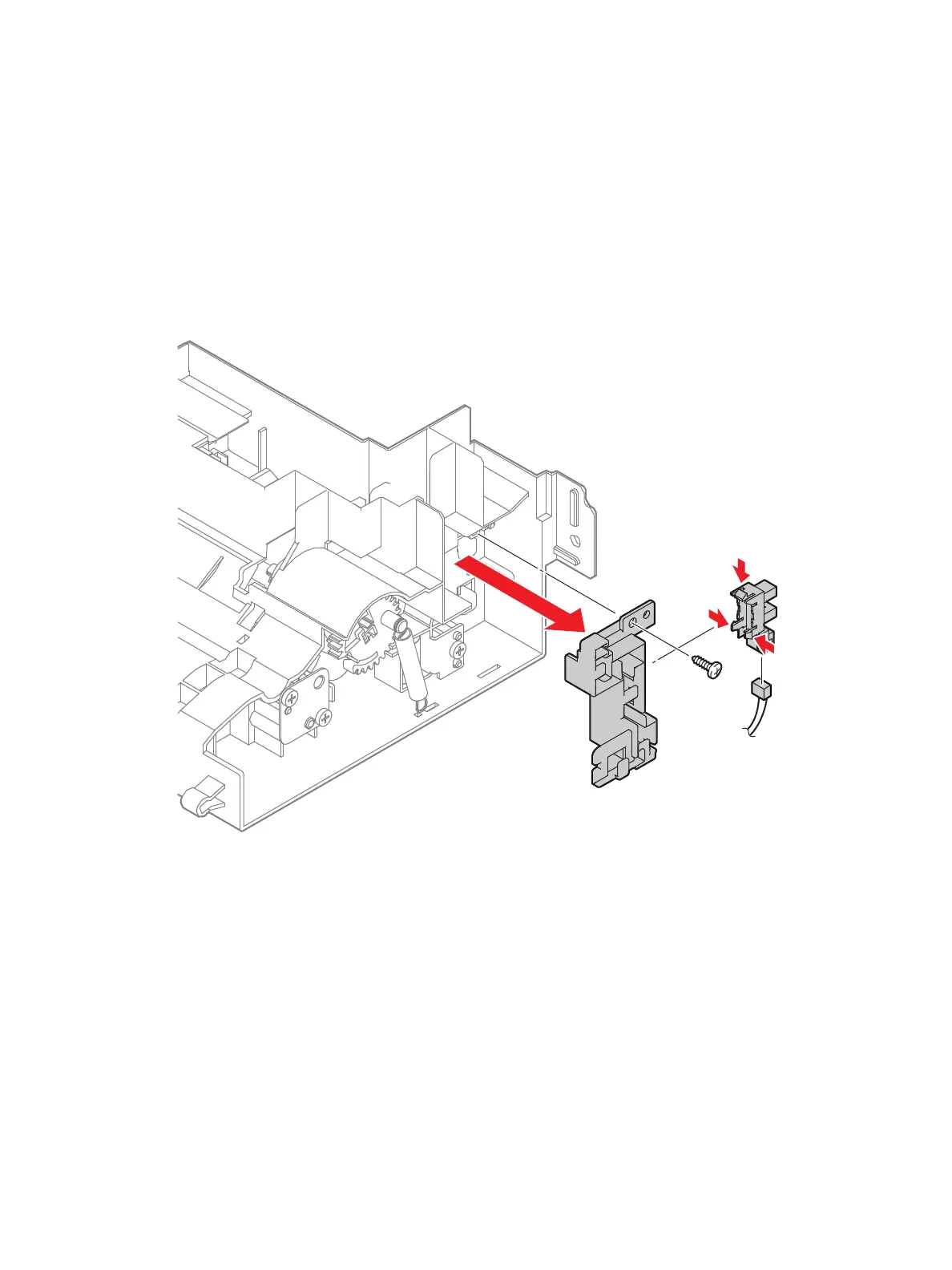

Bypass Tray Sensor
PL13.2.4
1. Remove the Bypass Tray Frame Assembly. (page 4-65)
2. Remove the screw (silver, tapping, 8mm) that attaches the Bypass Tray Harness Guide (PL13.2.6)
and remove the Bypass Tray Harness Guide together with the Bypass Tray Sensor (Interlock Photo
Sensor - PL13.2.4).
3. Unplug connector P/J211 of the Bypass Tray Sensor.
4. Release the hook holding the Bypass Tray Sensor and remove the sensor.
s6600-129

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
