Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Xerox Internal Use Only Phaser 6600 and WorkCentre 6605
Service Manual
4-31
Dispenser Motor
PL5.1.2
1. Remove the MCU Board. (page 4-98)
2. Remove the Development HVPS Board. (page 4-99)
3. Unplug connector P/J145 of the Front Door Open Sensor (Interlock Photo Sensor - PL18.1.45).
4. Release the harness from the clamp installed on the MCU Plate (PL18.1.12).

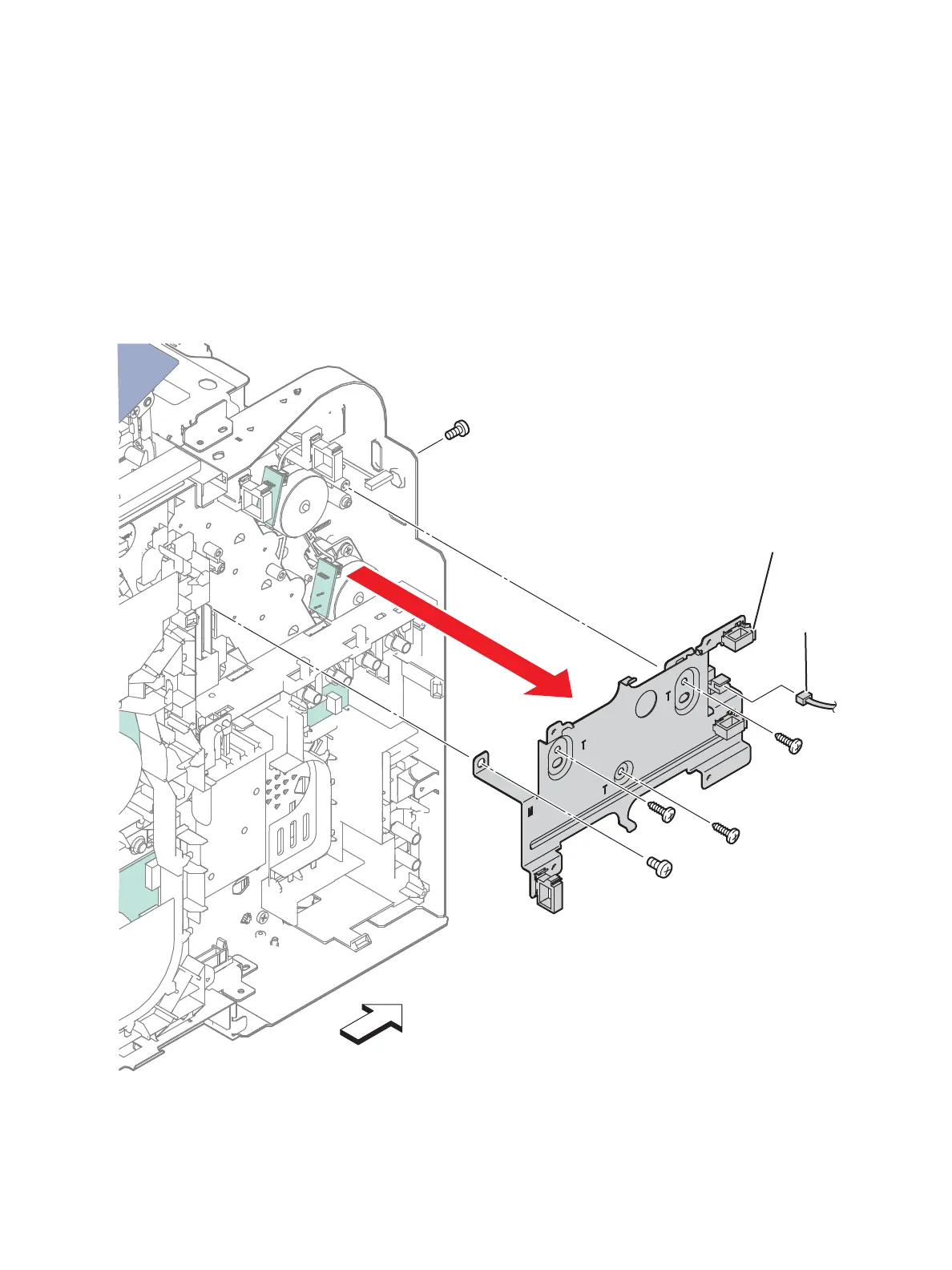

5. Remove the three screws (silver, tapping, 8mm) and the two screws (silver, 6mm) that attach the
MCU Plate to the printer and remove the plate.
s6600-062
Front
P/J145
Clamp

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
