Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-108
Transfer HVPS Board
(PL18.1.28)
WARNING: The Fuser is very hot. Take added care when handling the fuser to avoid being burned.
1. Remove the Fuser Assembly. (page 4-46)
2. Remove the Waste Cartridge. (page 4-50)
3. Remove the Waste Cartridge Lock. (page 4-39)
4. Remove the Front Door Assembly. (page 4-128)
5. Remove the Right Cover Assembly. (page 4-131)
6. Remove the Left Cover Assembly. (SFP page 4-134; MFP page 4-136)
7. MFP only: Remove the FAX Board. (page 4-97)
8. Remove the IP Board. (SFP page 4-102; MFP page 4-104)

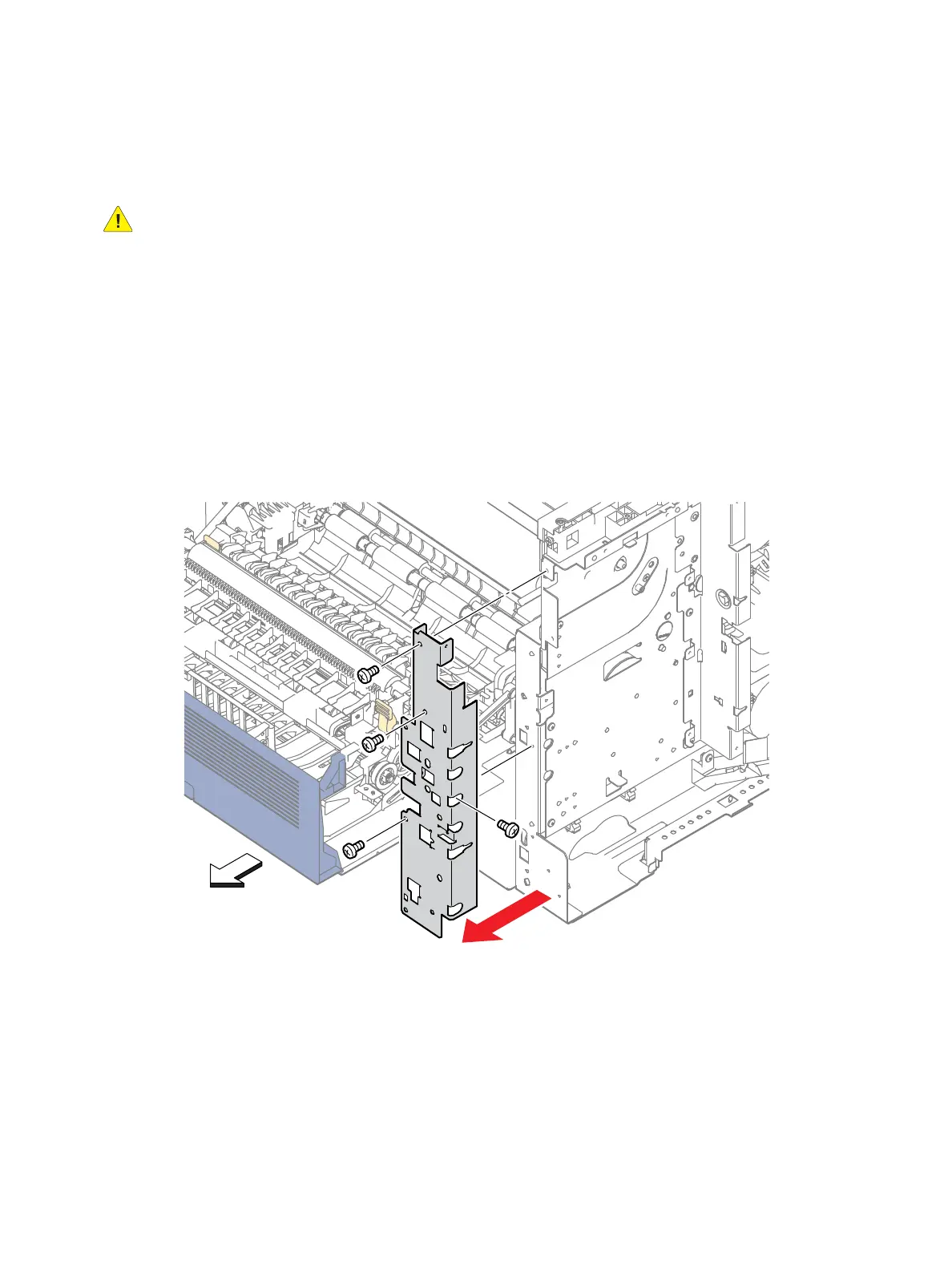

9. SFP only: Remove the four screws (silver, 6mm) that attach the Rear IP Board Plate (PL18.1.24) to
the printer and remove the plate.
s6600-192
Rear

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
