Xerox Phaser 6600 Service Manual

Service Parts Disassembly
Phaser 6600 and WorkCentre 6605Xerox Internal Use Only
Service Manual
4-38
Transfer
Transfer Belt Assembly
PL6.1.1
Note: Make sure that the belt surface of the Transfer Belt Assembly is never touched.
1. Open the Front Door Assembly (PL19.1.34).
2. Open the Right Side Door (PL19.1.96).
3. Open the Rear Door Assembly (PL19.1.95).
4. Open the Top Cover Assembly (PL19.1.1).
5. Remove the Waste Cartridge. (page 4-50)

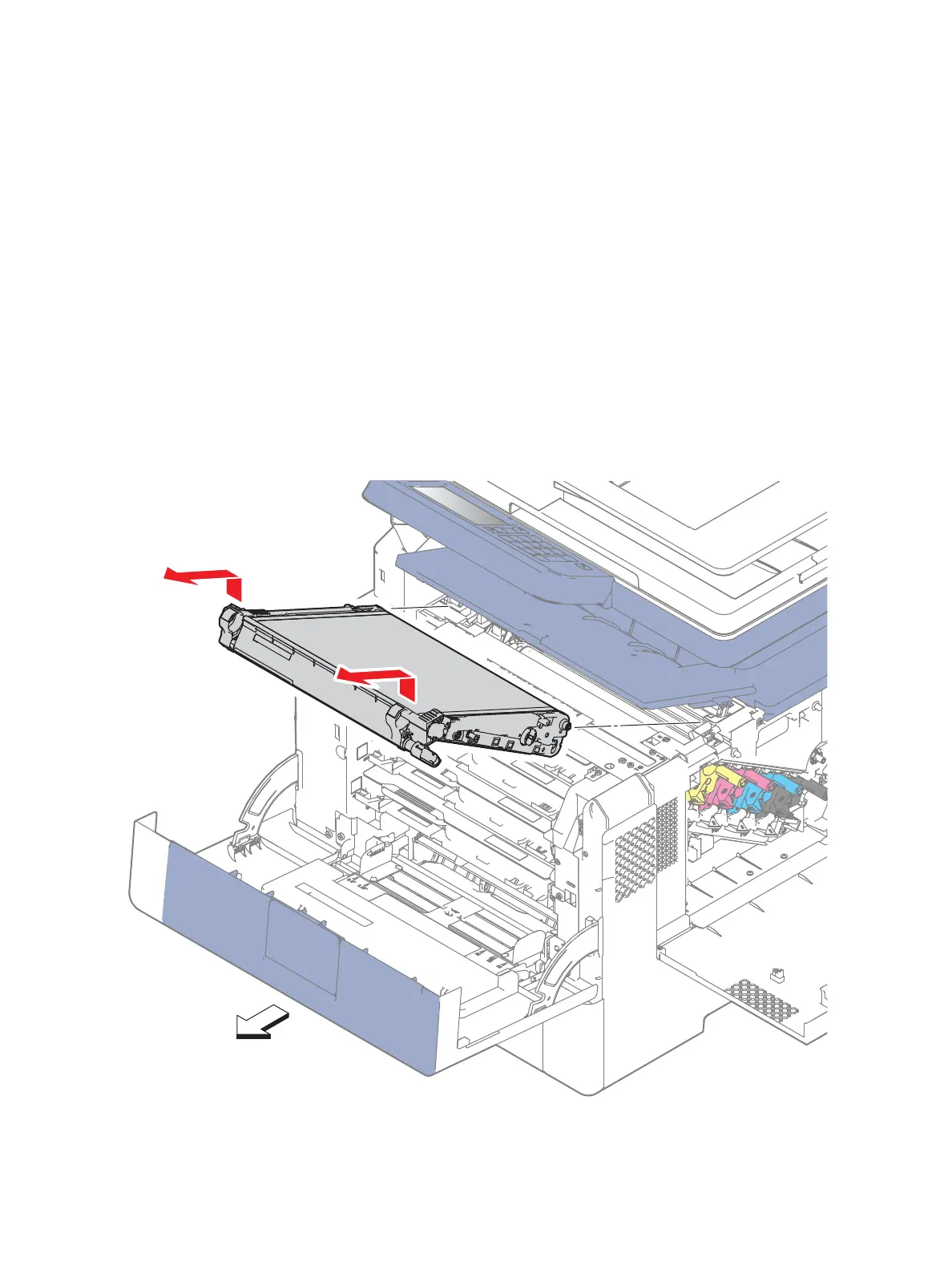

6. Lift the Transfer Belt Assembly (PL6.1.1) by the handles on the left and right sides, and then pull it
out to the front.
Note: Keep the Transfer Belt Assembly on a flat workbench free of foreign substances.
s6600-070
Front

Xerox Phaser 6600 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	36 ppm
Maximum duty cycle	80000 pages per month
Number of print cartridges	-
Internal memory	256 MB
Processor frequency	533 MHz
Maximum internal memory	768 MB
Sound pressure level (printing)	53 dB
Total input capacity	700 sheets
Total output capacity	250 sheets
Paper tray media types	Card stock, Envelopes, Glossy paper, Labels
ISO A-series sizes (A0...A9)	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input frequency	50 - 60 Hz
Power consumption (standby)	65 W
Power consumption (printing)	535 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Weight	25500 g
Dimensions (WxDxH)	429.26 x 487.68 x 383.54 mm
